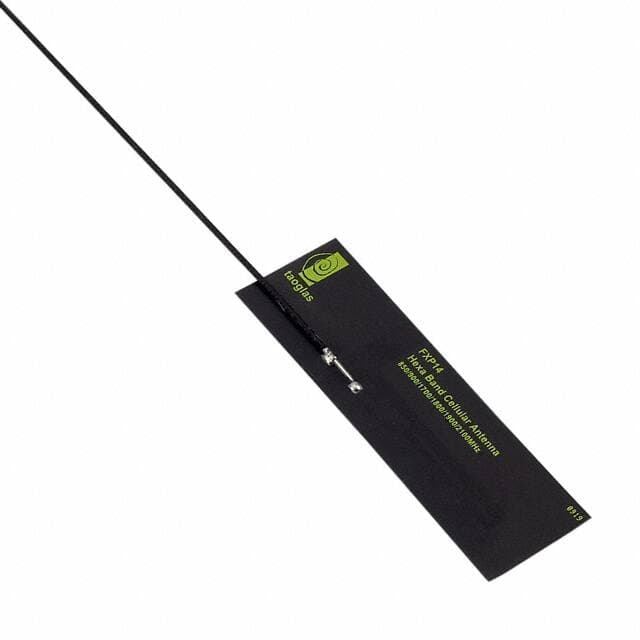

Taoglas Limited FXP14.11.0100B

Manufacturer No:

FXP14.11.0100B

Manufacturer:

Package:

Description:

6 Bands Flat Patch Wide B Adhesive GSC 850MHz 900MHz 1.7GHz 1.8GHz 1.9GHz 2.1GHz 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi Bulk 0.004 0.10mm CDMA, GSM

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXP14.11.0100B information

Taoglas Limited FXP14.11.0100B technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited FXP14.11.0100B.

Type
Parameter

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
GSC

Applications
CDMA, GSM

Frequency
900MHz

Impedance
50Ohm

Gain
2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi

RF Family/Standard
Cellular

Antenna Type
Flat Patch

VSWR
2.5

Number of Bands
6

Frequency Group
Wide B

Frequency (Center/Band)
850MHz 900MHz 1.7GHz 1.8GHz 1.9GHz 2.1GHz

Return Loss
-7dB, -12dB, -8dB, -9dB, -9dB, -8dB

Height
101.6?m

Length
70mm

Width
20mm

Height (Max)
0.004 0.10mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited FXP14.11.0100B.

Datasheets:

taoglaslimited-fxp14110100b-datasheets-9933.pdf

FXP14.11.0100B Overview

RF Antennas is made easier with Adhesive.RF modulator is packaged in a solid enclosure of Bulk.Having a Adhesive makes it ideal for most RF ic designs.

FXP14.11.0100B Features

With Adhesive

FXP14.11.0100B Applications

There are a lot of Taoglas Limited
FXP14.11.0100B RF Antennas applications.

Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
