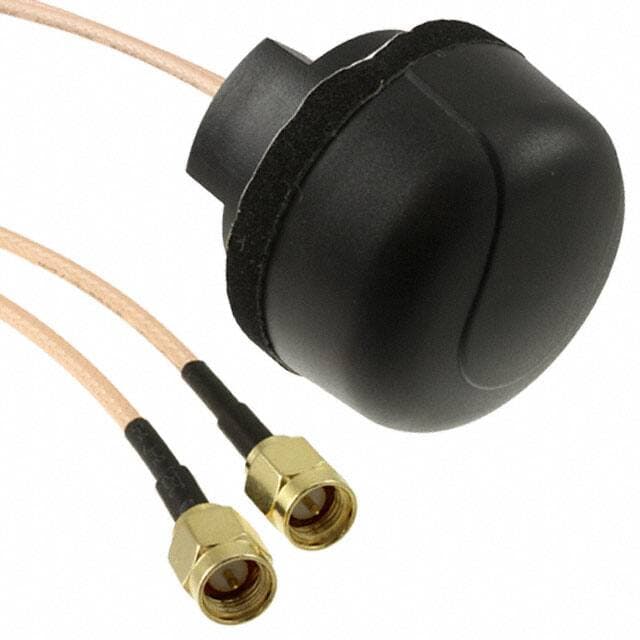

Taoglas Limited MA120.A.QP.001

Manufacturer No:

MA120.A.QP.001

Manufacturer:

Taoglas Limited

Package:

Description:

2 Bands Dome UHF 300MHz~1GHz Panel Mount SMA Male (2) 450MHz 868MHz 3.91dBi, 1.11dBi Bulk 1.122 28.50mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA120.A.QP.001 information

Taoglas Limited MA120.A.QP.001 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited MA120.A.QP.001.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Bulk

Series
Hercules

Feature
Cable - 1m

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male (2)

Max Power Dissipation
5W

Ingress Protection
IP67, IP69K

Impedance
50Ohm

Power - Max
5W

Gain
3.91dBi, 1.11dBi

Max Frequency
868MHz

Antenna Type
Dome

Number of Bands
2

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
450MHz 868MHz

Return Loss
-10dB

Height
29.0068mm

Height (Max)
1.122 28.50mm

RoHS Status
RoHS Compliant

Ratings
IP69

Download datasheets and manufacturer documentation for Taoglas Limited MA120.A.QP.001.

MA120.A.QP.001 Overview

The Panel Mount value makes it suitable for general RF Antennas.From the Hercules series, it's a Antenna RF.A solid enclosure of Bulk surrounds RF modulator.In most RF ics, its Panel makes it suitable.

MA120.A.QP.001 Features

With Panel Mount
Hercules series

MA120.A.QP.001 Applications

There are a lot of Taoglas Limited
MA120.A.QP.001 RF Antennas applications.

Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
