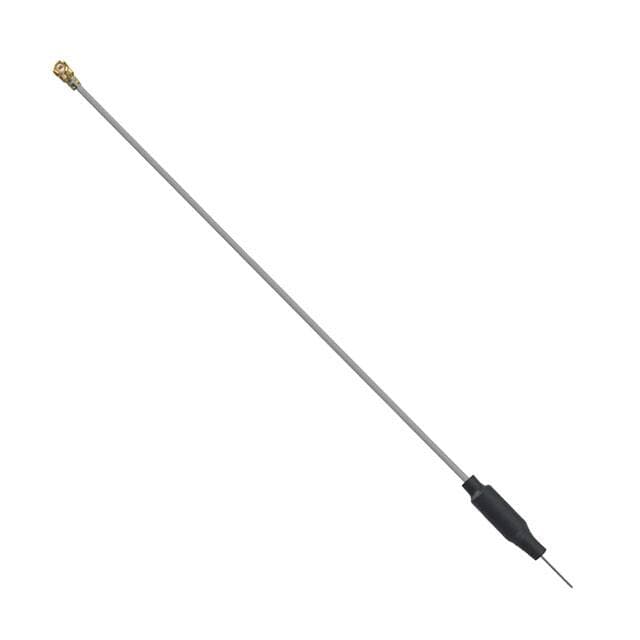

Taoglas Limited CBD02.07.0100C

Manufacturer No:

CBD02.07.0100C

Manufacturer:

Taoglas Limited

Package:

Description:

1 Bands Whip, Straight SHF f > 4GHz Connector Mount U.FL (UMCC), IPEX MHF1 5.5GHz 3.94dBi 0.185 4.70mm Wi-Fi

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CBD02.07.0100C information

Taoglas Limited CBD02.07.0100C technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited CBD02.07.0100C.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Connector Mount

Feature
Cable - 100mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
Wi-Fi

Power - Max
2W

Gain
3.94dBi

Frequency Range
5.15GHz~5.85GHz

RF Family/Standard
WiFi

Antenna Type
Whip, Straight

VSWR
2

Number of Bands
1

Frequency Group
SHF f > 4GHz

Frequency (Center/Band)
5.5GHz

Return Loss
-10dB

Height (Max)
0.185 4.70mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited CBD02.07.0100C.

Datasheets:

taoglaslimited-cbd02070100c-datasheets-6352.pdf

Environmental Information:

taoglaslimited-fxr06520075xadg-environmentalinformation-5077.pdf

CBD02.07.0100C Overview

A generalization of RF Antennas can be made using Connector Mount.

CBD02.07.0100C Features

With Connector Mount

CBD02.07.0100C Applications

There are a lot of Taoglas Limited
CBD02.07.0100C RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
