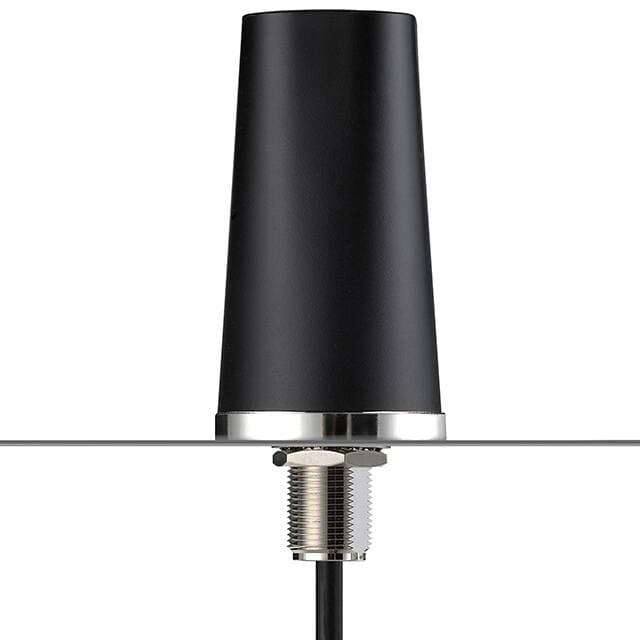

Taoglas Limited TLS.30.1F21

Manufacturer No:

TLS.30.1F21

Manufacturer:

Taoglas Limited

Package:

Description:

1 Bands Whip, Straight UHF 300MHz~1GHz Panel Mount N Type Female 433MHz -1.16dBi Bag 3.128 79.45mm ISM

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLS.30.1F21 information

Taoglas Limited TLS.30.1F21 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited TLS.30.1F21.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Bag

Series
Shockwave

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
N Type Female

Applications
ISM

Max Power Dissipation
100W

Ingress Protection
IP67, IP69K

Frequency
433MHz

Power - Max
100W

Gain
-1.16dBi

RF Family/Standard
General ISM

Antenna Type
Whip, Straight

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
433MHz

Return Loss
-15dB

Height
79.6036mm

Height (Max)
3.128 79.45mm

RoHS Status
RoHS Compliant

Ratings
IP69K

Download datasheets and manufacturer documentation for Taoglas Limited TLS.30.1F21.

TLS.30.1F21 Overview

RF Antennas can be generalized using Panel Mount.An Antenna RF from the series Shockwave.An enclosure of Bag is used to package the RF modulator.As it has a Panel, it's suitable for most RF ic designs.

TLS.30.1F21 Features

With Panel Mount
Shockwave series

TLS.30.1F21 Applications

There are a lot of Taoglas Limited
TLS.30.1F21 RF Antennas applications.

Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
