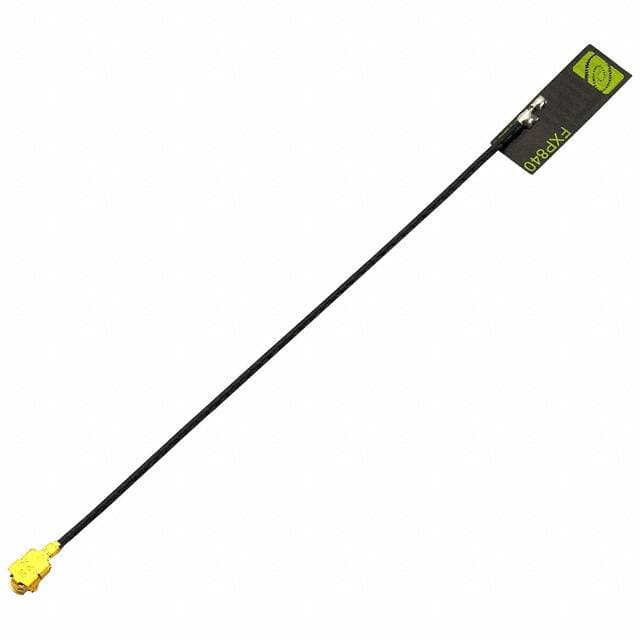

Taoglas Limited FXP840.07.0055B

Manufacturer No:

FXP840.07.0055B

Manufacturer:

Package:

Description:

2 Bands Flat Patch UHF 2GHz~3GHz SHF f > 4GHz Adhesive U.FL (UMCC), IPEX MHF1 2.4GHz 5.4GHz 2dBi, 2.5dBi Bulk 0.004 0.10mm Bluetooth, WLAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXP840.07.0055B information

Taoglas Limited FXP840.07.0055B technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited FXP840.07.0055B.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Series
Freedom

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
Bluetooth, WLAN

Power Rating
2W

Frequency
6GHz

Impedance
50Ohm

Cable Length
55mm

Power - Max
2W

Bandwidth
5 GHz

Gain
2dBi, 2.5dBi

Max Frequency
5.8GHz

Frequency Range
2.41GHz~2.49GHz 4.9GHz~5.8GHz

RF Family/Standard
Bluetooth, WiFi

Antenna Type
Flat Patch

VSWR
2, 2.5

Number of Bands
2

Frequency Group
UHF 2GHz~3GHz SHF f > 4GHz

Frequency (Center/Band)
2.4GHz 5.4GHz

Height
101.6?m

Height (Max)
0.004 0.10mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited FXP840.07.0055B.

FXP840.07.0055B Overview

Adhesive makes it suitable for general RF Antennas.It is a Antenna RF from the Freedom series.The RF modulator is packaged in Bulk solid enclosure.Its Adhesive makes it qualified for most RF ic designs.

FXP840.07.0055B Features

With Adhesive
Freedom series

FXP840.07.0055B Applications

There are a lot of Taoglas Limited
FXP840.07.0055B RF Antennas applications.

Lightning strikes
Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
