APEX PA85A
APEX PA85A

APEX PA85A

Manufacturer No:

PA85A

Manufacturer:

APEX

Package:

TO-3-8

Description:

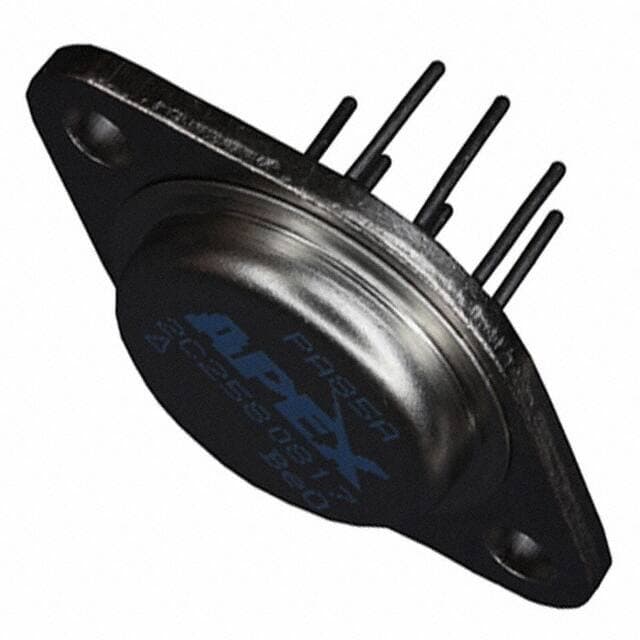

200mA per Channel 3pA 110 dB Instrumentational OP Amps 30V~450V ±15V~225V PA85 2 Pins TO-3-8

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA85A information

APEX PA85A technical specifications, attributes, parameters and parts with similar specifications to APEX PA85A.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-3-8
  • Number of Pins
  • 8
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tray
  • Series
  • Apex Precision Power®
  • Published
  • 2011
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Nickel (Ni)
  • Subcategory
  • Operational Amplifier
  • Technology
  • MOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • PIN/PEG
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 150V
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • PA85
  • Qualification Status
  • Not Qualified
  • Number of Circuits
  • 1
  • Operating Supply Current
  • 21mA
  • Supply Current-Max
  • 25mA
  • Slew Rate
  • 1000V/μs
  • Architecture
  • VOLTAGE-FEEDBACK
  • Amplifier Type
  • Power
  • Common Mode Rejection Ratio
  • 110 dB
  • Current - Input Bias
  • 3pA
  • Voltage - Supply, Single/Dual (±)
  • 30V~450V ±15V~225V
  • Output Current per Channel
  • 200mA
  • Input Offset Voltage (Vos)
  • 250μV
  • Gain Bandwidth Product
  • 100MHz
  • Neg Supply Voltage-Nom (Vsup)
  • -150V
  • Unity Gain BW-Nom
  • 100000 kHz
  • Low-Offset
  • NO
  • Frequency Compensation
  • NO
  • Supply Voltage Limit-Max
  • 225V
  • Low-Bias
  • YES
  • Micropower
  • NO
  • Programmable Power
  • NO
  • Neg Supply Voltage-Max (Vsup)
  • -225V
  • Wideband
  • NO

Download datasheets and manufacturer documentation for APEX PA85A.

Datasheets:

PA85A Overview


The linear amplifier is packaged in a TO-3-8 case. This is a Power type op amp. Linear amplifier is delivered in a Tray case. The number of terminations approaches 8. Buffer amplifier has a total of 2 pins. Please take in mind that this instrumentation amplifier should be run at 150V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 8 pins. Regarding input offset voltage, op amp rates 250μV. Through Hole is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -25°C~85°C. This op amp can operate from a supply current at 21mA. There are 1 circuits on this op amp. Apex Precision Power® corresponds to the op amp's series. The minimum voltage gain this buffer op amp is able to conduct is 63000.

PA85A Features


2 Pins
supply voltage of 150V


PA85A Applications


There are a lot of Apex Microtechnology
PA85A Instrumentational OP Amps applications.


  • Inverse/same-phase proportional circuit
  • Addition operation circuits
  • Subtraction operation circuits
  • single/dual op amp sum and difference circuits
  • Integrator circuits
  • Differentiator circuits
  • Logarithmic operation circuits
  • Exponential operation circuits
  • Multiplication circuits
  • Division circuits

User Guide
