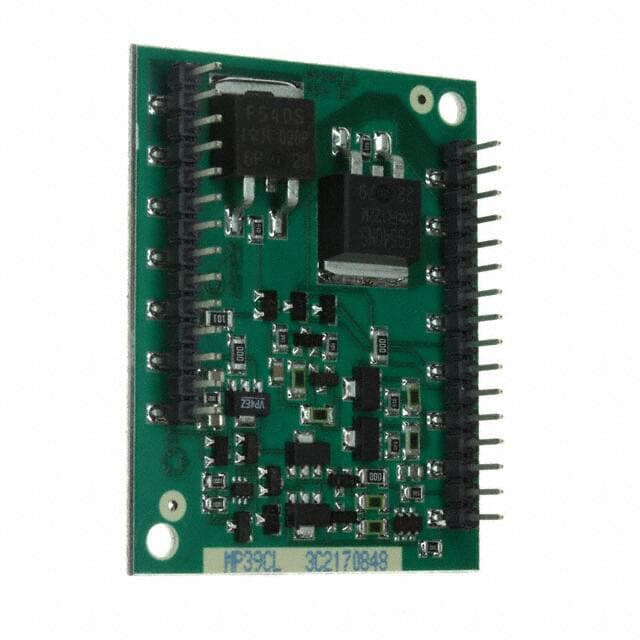

APEX MP39CL
Manufacturer No:
MP39CL
Manufacturer:
Package:
30-DIP Module
Description:
10A per Channel 10pA 98 dB Instrumentational OP Amps 0.0002μA 30V~100V ±15V~50V MP*CL 30 Pins 30-DIP Module
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MP39CL information
APEX MP39CL technical specifications, attributes, parameters and parts with similar specifications to APEX MP39CL.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 30-DIP Module
- Operating Temperature
- -40°C~85°C
- Packaging
- Bulk
- Series
- Apex Precision Power®
- Published
- 2012
- JESD-609 Code
- e2
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 30
- ECCN Code
- EAR99
- Terminal Finish
- TIN NICKEL
- Subcategory
- Operational Amplifier
- Technology
- HYBRID
- Terminal Position
- DUAL
- Terminal Form
- PIN/PEG
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 1
- Supply Voltage
- 40V
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- MP*CL
- JESD-30 Code
- R-XDMA-P30
- Qualification Status
- Not Qualified
- Number of Circuits
- 1
- Operating Supply Current
- 26mA
- Slew Rate
- 10V/μs
- Amplifier Type
- Power
- Common Mode Rejection Ratio
- 98 dB
- Current - Input Bias
- 10pA
- Voltage - Supply, Single/Dual (±)
- 30V~100V ±15V~50V
- Output Current per Channel
- 10A
- Input Offset Voltage (Vos)
- 5mV
- Gain Bandwidth Product
- 2MHz
- Neg Supply Voltage-Nom (Vsup)
- -40V
- Unity Gain BW-Nom
- 2000 kHz
- Average Bias Current-Max (IIB)
- 0.0002μA
- Supply Voltage Limit-Max
- 50V
- Neg Supply Voltage-Max (Vsup)
- -50V
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for APEX MP39CL.
MP39CL Overview
Packaging for the buffer amplifier is in the form of a 30-DIP Module case. A Power-type buffer amplifier is shown here. There is a Bulk case that is delivered with the instrumentation amplifiers. A total of 30 terminations have been reported in the past few weeks. Buffer amplifier has a total of 30 pins on it. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 40V. In more specific terms, this linear amplifier can be categoriOperational Amplifiered as a Operational Amplifier-type device. With regards to the offset voltage of the input, buffer amplifier is rated at 5mV. For this electrical component, the recommended mounting type is Through Hole, which is the most common. The buffer amplifier functions well at -40°C~85°C as far as operating temperature is concerned. Using a supply current of 26mA , this buffer op amp will be able to operate. The buffer amp consists of 1 circuits in total. The Apex Precision Power® stands for the buffer op amp's serial number.
MP39CL Features
30 Pins
supply voltage of 40V
MP39CL Applications
There are a lot of Apex Microtechnology
MP39CL Instrumentational OP Amps applications.
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
