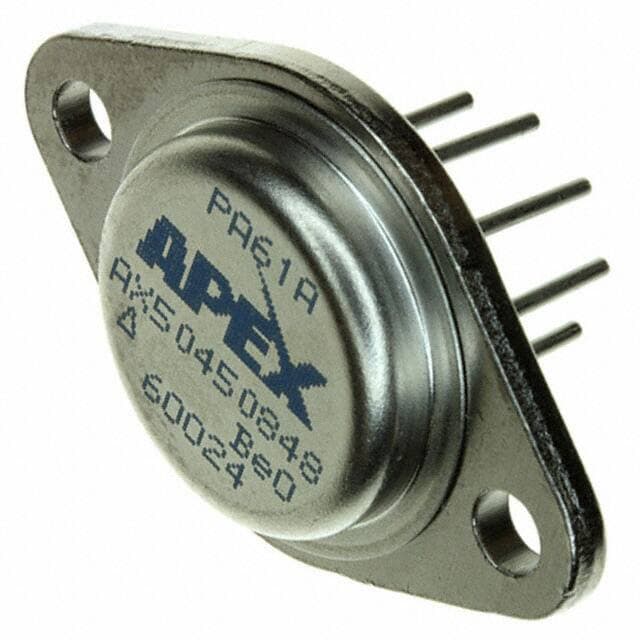

APEX PA61A

Manufacturer No:

PA61A

Manufacturer:

APEX

Package:

TO-3-8

Description:

10A per Channel 10nA 100 dB Instrumentational OP Amps 0.02μA 20V~90V ±10V~45V PA61 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA61A information

APEX PA61A technical specifications, attributes, parameters and parts with similar specifications to APEX PA61A.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-25°C~85°C

Packaging
Tube

Series
Apex Precision Power®

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
300

Number of Functions
1

Supply Voltage
32V

Time@Peak Reflow Temperature-Max (s)
10

Base Part Number
PA61

Pin Count
2

Qualification Status
Not Qualified

Power Supplies
+-32V

Number of Circuits
1

Operating Supply Current
3mA

Slew Rate
2.8V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
100 dB

Current - Input Bias
10nA

Voltage - Supply, Single/Dual (±)
20V~90V ±10V~45V

Output Current per Channel
10A

Input Offset Voltage (Vos)
1mV

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-32V

Unity Gain BW-Nom
1000 kHz

Average Bias Current-Max (IIB)
0.02μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
45V

Bias Current-Max (IIB) @25C
0.02μA

Neg Supply Voltage-Max (Vsup)
-45V

Power
YES

Voltage Gain-Min
63000

Download datasheets and manufacturer documentation for APEX PA61A.

Datasheets:

apexmicrotechnology-ek31-datasheets-5567.pdf

apexmicrotechnology-pa61-datasheets-4526.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA61A Overview

Op amp is packaged in TO-3-8 case. Op amps are Power types of amplifier on the chip. Instrumentation amplifier is delivered in a Tube case. The number of terminations approaches 8. Linear amplifier has a total of 2 pins. Please take in mind that op amp should be run at 32V. Instrumentation amplifier is a part of Operational Amplifier. Regarding input offset voltage, buffer amplifier rates 1mV voltage. Through Hole is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -25°C~85°C. Operational amplifier can operate supply current at 3mA. There are 1 circuits on op amps. Apex Precision Power® corresponds to linear amplifier's series. To conduct electronic part voltage gain higher than 63000.

PA61A Features

2 Pins
supply voltage of 32V
