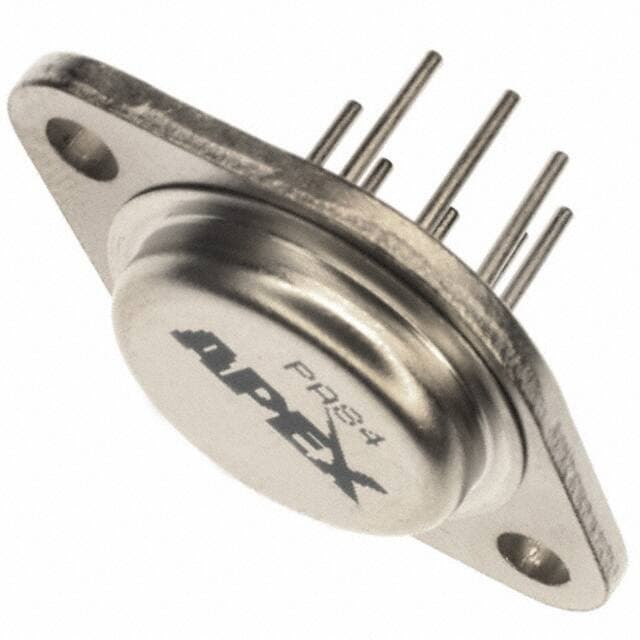

APEX PA84
APEX PA84

APEX PA84

Manufacturer No:

PA84

Manufacturer:

APEX

Package:

TO-3-8

Description:

40mA per Channel 5pA 130 dB Instrumentational OP Amps 0.00005μA 30V~300V ±15V~150V PA84 2 Pins TO-3-8

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA84 information

APEX PA84 technical specifications, attributes, parameters and parts with similar specifications to APEX PA84.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-3-8
  • Number of Pins
  • 8
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tray
  • Series
  • Apex Precision Power®
  • Published
  • 2011
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Nickel (Ni)
  • Subcategory
  • Operational Amplifier
  • Technology
  • BIPOLAR
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • PIN/PEG
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 150V
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • PA84
  • Qualification Status
  • Not Qualified
  • Number of Circuits
  • 1
  • Operating Supply Current
  • 5.5mA
  • Supply Current-Max
  • 7.5mA
  • Slew Rate
  • 200V/μs
  • Architecture
  • VOLTAGE-FEEDBACK
  • Amplifier Type
  • Power
  • Common Mode Rejection Ratio
  • 130 dB
  • Current - Input Bias
  • 5pA
  • Voltage - Supply, Single/Dual (±)
  • 30V~300V ±15V~150V
  • Output Current per Channel
  • 40mA
  • Input Offset Voltage (Vos)
  • 1.5mV
  • Gain Bandwidth Product
  • 75MHz
  • Neg Supply Voltage-Nom (Vsup)
  • -150V
  • Unity Gain BW-Nom
  • 75000 kHz
  • Voltage Gain
  • 120dB
  • Average Bias Current-Max (IIB)
  • 0.00005μA
  • Low-Offset
  • NO
  • Low-Bias
  • YES
  • Bias Current-Max (IIB) @25C
  • 0.00005μA
  • Dual Supply Voltage
  • 150V
  • Power
  • YES
  • Height
  • 6.4mm

Download datasheets and manufacturer documentation for APEX PA84.

Datasheets:

PA84 Overview


The linear amplifier is packaged in a TO-3-8 case. This is a Power type op amp. Linear amplifier is delivered in a Tray case. The number of terminations approaches 8. Buffer amplifier has a total of 2 pins. Please take in mind that this instrumentation amplifier should be run at 150V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 8 pins. Regarding input offset voltage, op amp rates 1.5mV. Through Hole is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -25°C~85°C. This op amp can operate from a supply current at 5.5mA. Voltage gain should remain at 120dB. There are 1 circuits on this op amp. Apex Precision Power® corresponds to the op amp's series.

PA84 Features


2 Pins
supply voltage of 150V
120dB voltage gain


PA84 Applications


There are a lot of Apex Microtechnology
PA84 Instrumentational OP Amps applications.


  • Inverse/same-phase proportional circuit
  • Addition operation circuits
  • Subtraction operation circuits
  • single/dual op amp sum and difference circuits
  • Integrator circuits
  • Differentiator circuits
  • Logarithmic operation circuits
  • Exponential operation circuits
  • Multiplication circuits
  • Division circuits
