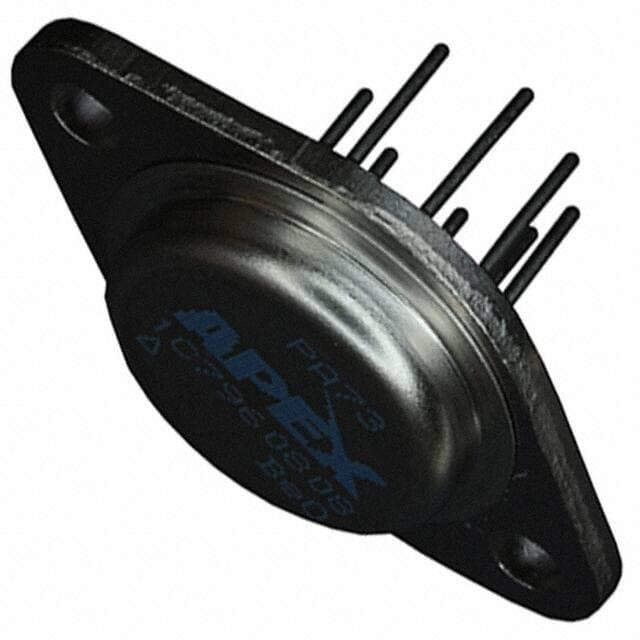

APEX PA73

Manufacturer No:

PA73

Manufacturer:

APEX

Package:

TO-3-8

Description:

5A per Channel 15nA 110 dB Instrumentational OP Amps 0.04μA 20V~60V ±10V~30V PA73 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA73 information

APEX PA73 technical specifications, attributes, parameters and parts with similar specifications to APEX PA73.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Number of Pins
8

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
Apex Precision Power®

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
28V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA73

Pin Count
2

Qualification Status
Not Qualified

Operating Supply Current
2.6mA

Supply Current-Max
30mA

Slew Rate
2.6V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
110 dB

Current - Input Bias
15nA

Voltage - Supply, Single/Dual (±)
20V~60V ±10V~30V

Output Current per Channel
5A

Input Offset Voltage (Vos)
5mV

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-28V

Unity Gain BW-Nom
1000 kHz

Average Bias Current-Max (IIB)
0.04μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
34V

Bias Current-Max (IIB) @25C
0.04μA

Neg Supply Voltage-Max (Vsup)
-34V

Power
YES

Voltage Gain-Min
35000

Common-mode Reject Ratio-Min
70 dB

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA73.

Datasheets:

apexmicrotechnology-pa01-datasheets-2101.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA73 Overview

There is a TO-3-8 case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the Power-type. Upon delivery, op amp ic is packaged in a Bulk case. We are approaching the 8h termination of the year. In total, there are 2 pins on this op amp ic. This linear amplifier should be powered by an 28V battery. There are two types of Operational Amplifier op amps in this case, and this device falls into one of them. 8 pins are located on the operational amplifiers. The input offset voltage is 5mV. This electrical part should be mounted using type Through Hole. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -25°C~85°C . The buffer amplifier is capable of operating from a supply current of 2.6mA . This op amp contains 1 circuits. Instrumentation amplifiers are numbered by their Apex Precision Power® series. This op amp ic is capable of conducting at least 35000 voltage gains.

PA73 Features

2 Pins
supply voltage of 28V

PA73 Applications

There are a lot of Apex Microtechnology
PA73 Instrumentational OP Amps applications.

Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
