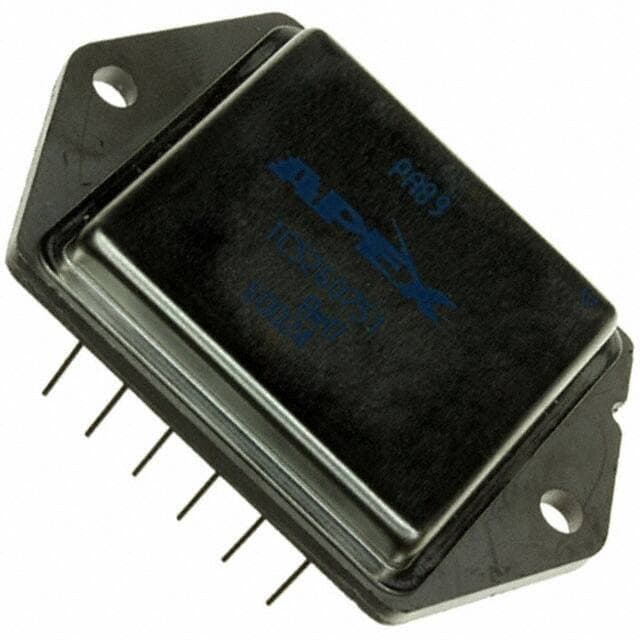

APEX PA89

Manufacturer No:

PA89

Manufacturer:

APEX

Package:

12-DIP Module

Description:

75mA per Channel 5pA 110 dB Instrumentational OP Amps 0.00005μA 150V~1200V ±75V~600V PA89 12 Pins 12-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA89 information

APEX PA89 technical specifications, attributes, parameters and parts with similar specifications to APEX PA89.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
12-DIP Module

Number of Pins
12

Operating Temperature
-25°C~85°C

Packaging
Tube

Series
Apex Precision Power®

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifier

Technology
MOS

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
500V

Terminal Pitch
5.08mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
12

Qualification Status
Not Qualified

Power Supplies
+-75/+-600V

Number of Circuits
1

Operating Supply Current
4.8mA

Supply Current-Max
6mA

Slew Rate
16V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
110 dB

Current - Input Bias
5pA

Voltage - Supply, Single/Dual (±)
150V~1200V ±75V~600V

Output Current per Channel
75mA

Input Offset Voltage (Vos)
500μV

Gain Bandwidth Product
10MHz

Neg Supply Voltage-Nom (Vsup)
-500V

Unity Gain BW-Nom
10000 kHz

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
NO

Supply Voltage Limit-Max
600V

Low-Bias
YES

Micropower
NO

Download datasheets and manufacturer documentation for APEX PA89.

Datasheets:

apexmicrotechnology-pa89-datasheets-6811.pdf

PA89 Overview

In order to protect the op amps, a 12-DIP Module case is used. There are two types of operational amplifiers in this circuit. In the case of Tube cases, linear amplifier will be delivered. In recent months, the number of terminations has approached 12. It consists of a total of 12 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 500V battery. A type of Operational Amplifier buffer op amp is what this device is specifically, to be more precise. It has 12 pins that make up the linear amplifier. In terms of input offset voltage, operational amplifier rates 500μV. This electronic component is recommended to be mounted using the mounting type Through Hole. It is recommended that this op amp ic be operated at a temperature no higher than -25°C~85°C for optimal performance. In order for this instrumentation amplifier to operate, the supply current needs to be between 4.8mA and 10 . In total, there are 1 circuits on this buffer amplifier. Apex Precision Power® is the number that corresponds to the series of the buffer op amp. A minimum voltage gain of 250000 is the minimum voltage gain that this instrumentation amplifier is capable of producing.

PA89 Features

12 Pins
supply voltage of 500V

PA89 Applications

There are a lot of Apex Microtechnology
PA89 Instrumentational OP Amps applications.

Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
