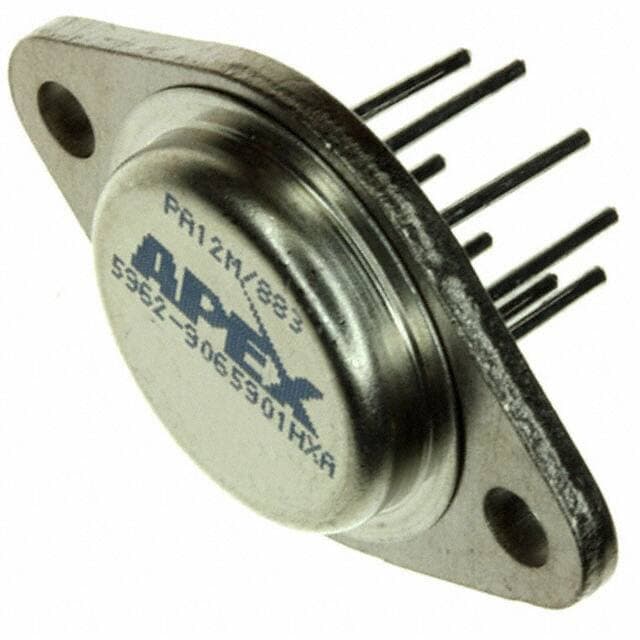

APEX PA12M/883

Manufacturer No:

PA12M/883

Manufacturer:

APEX

Package:

TO-3-8

Description:

12nA 74 dB Instrumentational OP Amps 0.03μA 20V~90V ±10V~45V PA12 8 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA12M/883 information

APEX PA12M/883 technical specifications, attributes, parameters and parts with similar specifications to APEX PA12M/883.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
TO-3-8

Surface Mount
NO

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
Apex Precision Power®

Published
2012

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
40V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA12

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Power Supplies
+-40V

Number of Circuits
1

Current - Supply
25mA

Slew Rate
2.5V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
74 dB

Current - Input Bias
12nA

Voltage - Supply, Single/Dual (±)
20V~90V ±10V~45V

Gain Bandwidth Product
4MHz

Neg Supply Voltage-Nom (Vsup)
-40V

Unity Gain BW-Nom
4000 kHz

Average Bias Current-Max (IIB)
0.03μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
50V

Voltage - Input Offset
2mV

Current - Output / Channel
10A

Bias Current-Max (IIB) @25C
0.03μA

Screening Level
38535Q/M;38534H;883B

Neg Supply Voltage-Max (Vsup)
-50V

Download datasheets and manufacturer documentation for APEX PA12M/883.

Datasheets:

apexmicrotechnology-pa12m-datasheets-2836.pdf

PA12M/883 Overview

A TO-3-8 case is used to package the op amp. Power-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Tube case. It is estimated that there will be 8 terminations in the next few months. There are a total of 8 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 40V volts. It should be noted that this op amp is a type of Operational Amplifier device. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -55°C~125°C . On this instrumentation amplifier, there are 1 circuits that are connected together. As a recommendation, this electronic component should be used with a power supply that can deliver 25mA. The Apex Precision Power® indicates the series number of the op amp. There is a minimum voltage gain of 63000 that this buffer op amp is capable of conducting.
