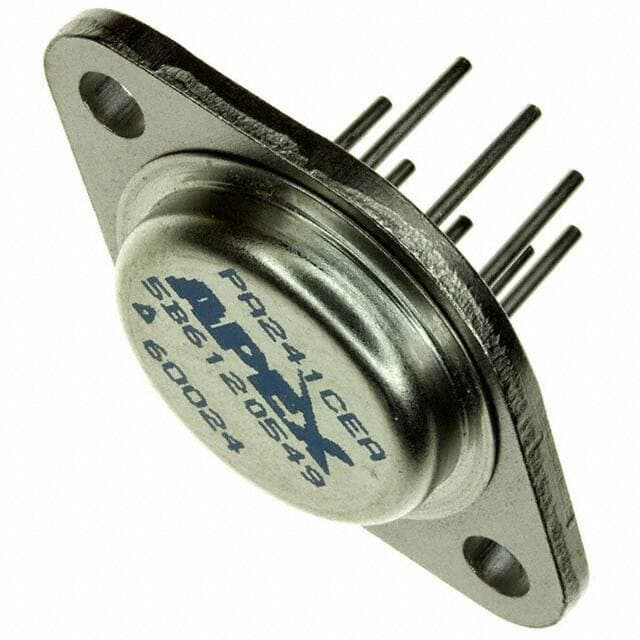

APEX PA241CEA

Manufacturer No:

PA241CEA

Manufacturer:

APEX

Package:

TO-3-8

Description:

120mA per Channel 5pA 94 dB Instrumentational OP Amps 0.00005μA 100V~350V ±50V~175V PA241 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA241CEA information

APEX PA241CEA technical specifications, attributes, parameters and parts with similar specifications to APEX PA241CEA.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-25°C~85°C

Packaging
Tube

Series
Apex Precision Power®

Published
2013

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
NICKEL

Subcategory
Operational Amplifier

Technology
MOS

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
150V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA241

Pin Count
2

JESD-30 Code
O-MBFM-P8

Number of Circuits
1

Operating Supply Current
2.2mA

Slew Rate
30V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
94 dB

Current - Input Bias
5pA

Voltage - Supply, Single/Dual (±)
100V~350V ±50V~175V

Output Current per Channel
120mA

Input Offset Voltage (Vos)
15mV

Gain Bandwidth Product
3MHz

Neg Supply Voltage-Nom (Vsup)
-150V

Unity Gain BW-Nom
3000 kHz

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
NO

Low-Bias
YES

Micropower
NO

Programmable Power
NO

Power
YES

Voltage Gain-Min
32000

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA241CEA.

Datasheets:

apexmicrotechnology-pa241ce-datasheets-9492.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA241CEA Overview

Packaged in a TO-3-8 case, the buffer op amp is ready to use. An op amp ic of the Power type. The op amp is delivered to you in a Tube case. There is a growing number of terminations approaching the number of 8. The pins on this board total to 2 in total. I would like to remind you that this buffer op amp should be powered by an 150V battery. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. There is an input offset voltage of 15mV for this buffer op amp. The mounting type that is recommended for this electrical part is Through Hole. In relation to the operating temperature of this buffer op amp, it works well at an average of -25°C~85°C . As long as the supply current of the chip does not exceed 2.2mA, this op amp ic can operate. During the manufacturing process, this buffer amplifier is divided into 1 circuits. As the name implies, Apex Precision Power® refers to the series of the buffer op amp. It is necessary to keep in mind that this instrumentation amplifier is able to conduct a minimum voltage gain of 32000.

PA241CEA Features

2 Pins
supply voltage of 150V

PA241CEA Applications

There are a lot of Apex Microtechnology
PA241CEA Instrumentational OP Amps applications.

Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
