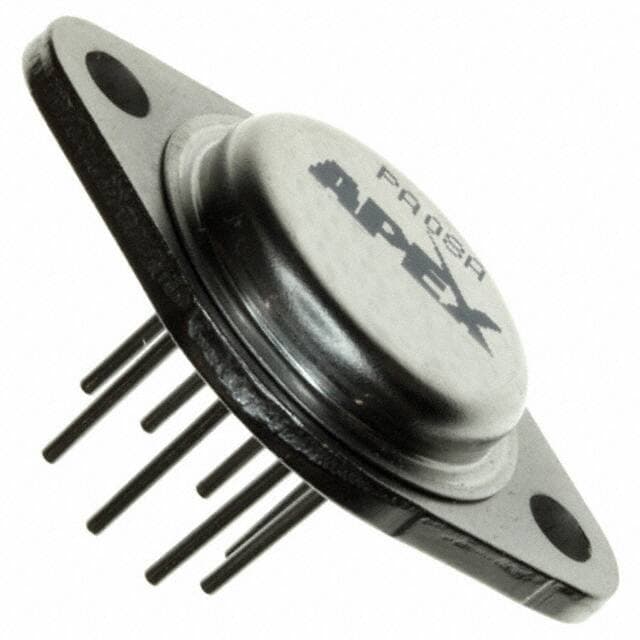

APEX PA08A

Manufacturer No:

PA08A

Manufacturer:

APEX

Package:

TO-3-8

Description:

150mA per Channel 3pA 130 dB Instrumentational OP Amps 30V~300V ±15V~150V PA08 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA08A information

APEX PA08A technical specifications, attributes, parameters and parts with similar specifications to APEX PA08A.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-25°C~85°C

Packaging
Tray

Series
Apex Precision Power®

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifiers

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
100V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA08

Pin Count
2

Qualification Status
Not Qualified

Number of Circuits
1

Operating Supply Current
6mA

Supply Current-Max
8.5mA

Slew Rate
20V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
130 dB

Current - Input Bias
3pA

Voltage - Supply, Single/Dual (±)
30V~300V ±15V~150V

Output Current per Channel
150mA

Input Offset Voltage (Vos)
250μV

Gain Bandwidth Product
5MHz

Neg Supply Voltage-Nom (Vsup)
-100V

Unity Gain BW-Nom
5000 kHz

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Micropower
NO

Programmable Power
NO

Wideband
NO

Power
YES

Voltage Gain-Min
63000

Download datasheets and manufacturer documentation for APEX PA08A.

Datasheets:

apexmicrotechnology-pa08-datasheets-1641.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA08A Overview

Packaging for the buffer amplifier is in the form of a TO-3-8 case. A Power-type buffer amplifier is shown here. There is a Tray case that is delivered with the instrumentation amplifiers. A total of 8 terminations have been reported in the past few weeks. Buffer amplifier has a total of 2 pins on it. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 100V. In more specific terms, this linear amplifier can be categoriOperational Amplifiersed as a Operational Amplifiers-type device. With regards to the offset voltage of the input, buffer amplifier is rated at 250μV. For this electrical component, the recommended mounting type is Through Hole, which is the most common. The buffer amplifier functions well at -25°C~85°C as far as operating temperature is concerned. Using a supply current of 6mA , this buffer op amp will be able to operate. The buffer amp consists of 1 circuits in total. The Apex Precision Power® stands for the buffer op amp's serial number. There are a maximum of 63000 voltage gains that can be conducted by this operational amplifier at its minimum voltage gain.

PA08A Features

2 Pins
supply voltage of 100V

PA08A Applications

There are a lot of Apex Microtechnology
PA08A Instrumentational OP Amps applications.

single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
