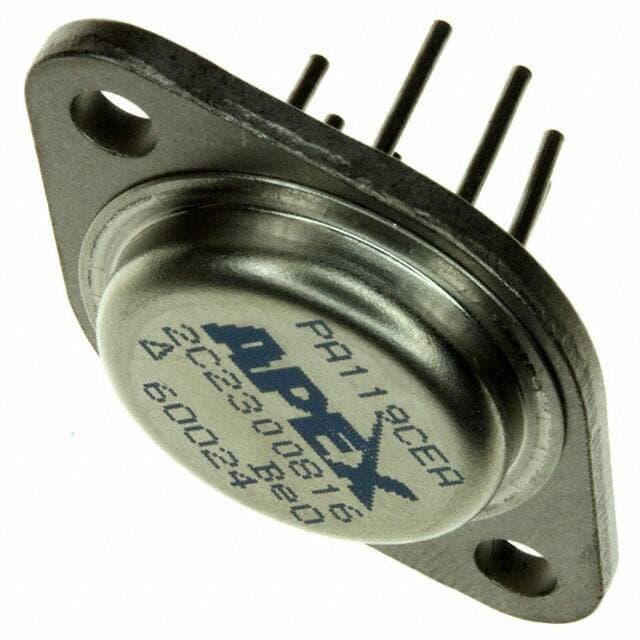

APEX PA119CEA

Manufacturer No:

PA119CEA

Manufacturer:

APEX

Package:

TO-3-8

Description:

8 Terminations 30V~80V ±15V~40V PA119 Video Amps Modules Apex Precision Power® Series 1 Functions 900V/?s

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA119CEA information

APEX PA119CEA technical specifications, attributes, parameters and parts with similar specifications to APEX PA119CEA.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-3-8

Packaging
Tube

Series
Apex Precision Power®

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Applications
General Purpose

Subcategory
Operational Amplifier

Technology
MOS

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Number of Functions
1

Supply Voltage
35V

Base Part Number
PA119

Pin Count
2

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-25°C

Number of Circuits
1

Operating Supply Current
100mA

Slew Rate
900V/?s

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
104 dB

Voltage - Supply, Single/Dual (±)
30V~80V ±15V~40V

Output Current per Channel
4A

Neg Supply Voltage-Nom (Vsup)
-35V

Unity Gain BW-Nom
100000 kHz

Average Bias Current-Max (IIB)
0.00005?A

Low-Offset
YES

Supply Voltage Limit-Max
40V

Low-Bias
YES

Bias Current-Max (IIB) @25C
0.00005?A

Neg Supply Voltage-Max (Vsup)
-40V

Input Offset Voltage-Max
750?V

Power
YES

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA119CEA.

Datasheets:

apexmicrotechnology-pa119ce-datasheets-5014.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

apexmicrotechnology-pa119cea-datasheets-6231.pdf

PA119CEA Overview

A Tube encapsulates class d amplifier.The TO-3-8 package makes class d amp accessible to save space.High performance makes audio amplifier an excellent choice for General Purpose.Mounting audio power amplifier on the PCB is done using the Surface Mount method.1 circuits enable it to achieve audio ic's enhanced flexibility.The base part number is PA119 and is used to audio amp.2 pins are present on audio digital amplifier.Digital amplifier consists of 8 terminations.Operational Amplifier contains this audio power amplifier.There is 100mA supply current in audio amplifier.The 35V supply voltage enables high efficiency.As a mounting method, Surface Mount is used.Under 85°C, the operating temperature is recommended.A working temperature of at least -25°C is recommended.There is a type of amplifier OPERATIONAL AMPLIFIER in the audio amplifier.Apex Precision Power® is the series of this FPGA.

PA119CEA Features

Operational Amplifier subcategory

PA119CEA Applications

There are a lot of Apex Microtechnology
PA119CEA Video Amps and Modules applications.

Audio Test And Measurement
High-End A/V Receivers
Automotive
Car Audio
Premium Audio
External Audio Amplifiers
Body Control Modules
High-Fidelity (HiFi) Headphone Drivers
Professional Audio Equipment
Analog and Digital Mixing Consoles
