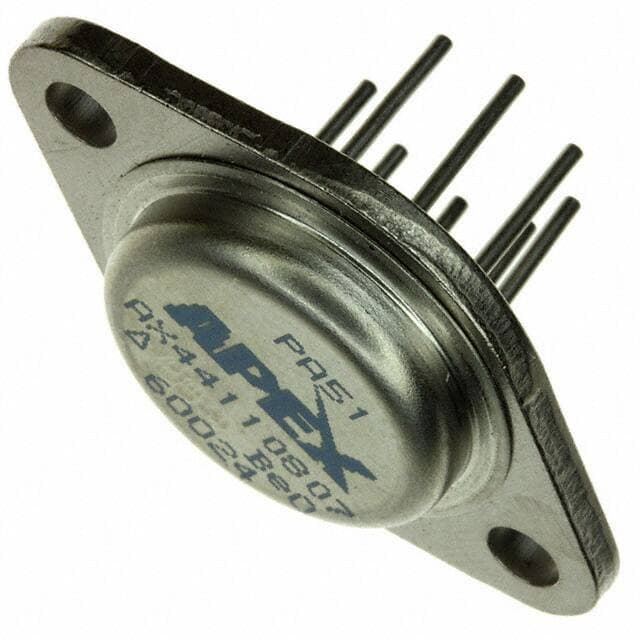

APEX PA51

Manufacturer No:

PA51

Manufacturer:

APEX

Package:

TO-3-8

Description:

10A per Channel 15nA 110 dB Instrumentational OP Amps 0.04μA 20V~72V ±10V~36V PA51 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA51 information

APEX PA51 technical specifications, attributes, parameters and parts with similar specifications to APEX PA51.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-25°C~85°C

Packaging
Tube

Series
Apex Precision Power®

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
NICKEL (NI)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
28V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA51

Pin Count
2

Qualification Status
Not Qualified

Power Supplies
+-28V

Number of Circuits
1

Operating Supply Current
2.6mA

Slew Rate
2.6V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
110 dB

Current - Input Bias
15nA

Voltage - Supply, Single/Dual (±)
20V~72V ±10V~36V

Output Current per Channel
10A

Input Offset Voltage (Vos)
5mV

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-28V

Unity Gain BW-Nom
1000 kHz

Average Bias Current-Max (IIB)
0.04μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
40V

Bias Current-Max (IIB) @25C
0.04μA

Neg Supply Voltage-Max (Vsup)
-40V

Power
YES

Voltage Gain-Min
50000

Download datasheets and manufacturer documentation for APEX PA51.

Datasheets:

apexmicrotechnology-pa51a-datasheets-1765.pdf

apexmicrotechnology-pa51a-datasheets-1766.pdf

PA51 Overview

In the package, you will find a TO-3-8-case to contain the op amp ic. The instrumentation amplifier in this picture is of the Power-type. A Tube case is used for delivering the op amp. During the past two weeks, there have been close to 8 terminations. A total of 2 pins are located on this board. This linear amplifier should be powered by an 28V battery. This particular linear amplifier is a type of Operational Amplifier device, to be precise. Op amp rates 5mV as input offset voltage. For this electrical component, Through Hole is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -25°C~85°C , which is a good operating temperature. Using an 2.6mA supply current, this operational amplifier ics can be operated. A instrumentation amplifier like this has 1 circuits. In this case, Apex Precision Power® represents the instrumentation amplifiers' series number. In this op amp ic, the minimum voltage gain is 50000.

PA51 Features

2 Pins
supply voltage of 28V

PA51 Applications

There are a lot of Apex Microtechnology
PA51 Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
