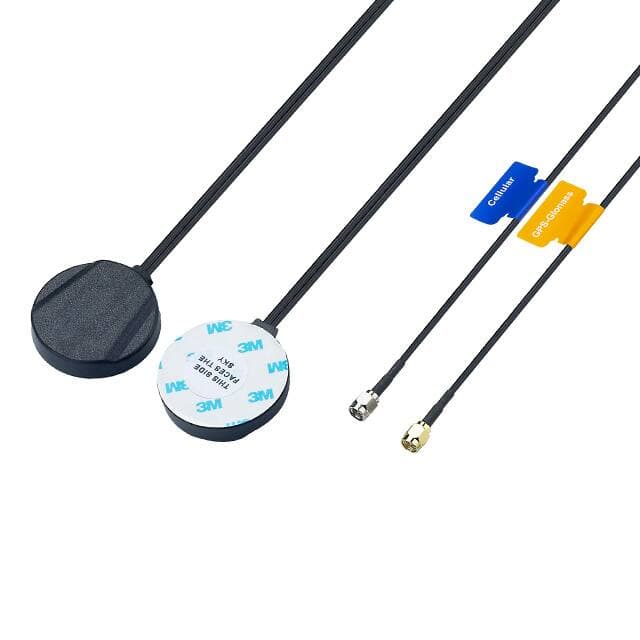

Taoglas Limited MA204.A.LB.002

Manufacturer No:

MA204.A.LB.002

Manufacturer:

Taoglas Limited

Package:

Description:

1 Bands Module Wide B Adhesive SMA Male 1.5GHz 28dB Bulk 0.425 10.80mm CDMA, GPS, GSM, UMTS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA204.A.LB.002 information

Taoglas Limited MA204.A.LB.002 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited MA204.A.LB.002.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Series
Stingray

Feature
LNA, Filter

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
CDMA, GPS, GSM, UMTS

Ingress Protection
IP65

Impedance
50Ohm

Gain
28dB

Max Frequency
2.2GHz

Frequency Range
800MHz~2.2GHz

RF Family/Standard
Cellular, Navigation

Antenna Type
Module

VSWR
3, 2.5

Number of Bands
1

Frequency Group
Wide B

Frequency (Center/Band)
1.5GHz

Height
10.795mm

Height (Max)
0.425 10.80mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited MA204.A.LB.002.

MA204.A.LB.002 Overview

RF Antennas can be generalized using Adhesive.An Antenna RF from the series Stingray.An enclosure of Bulk is used to package the RF modulator.As it has a Adhesive, it's suitable for most RF ic designs.

MA204.A.LB.002 Features

With Adhesive
Stingray series

MA204.A.LB.002 Applications

There are a lot of Taoglas Limited
MA204.A.LB.002 RF Antennas applications.

Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
