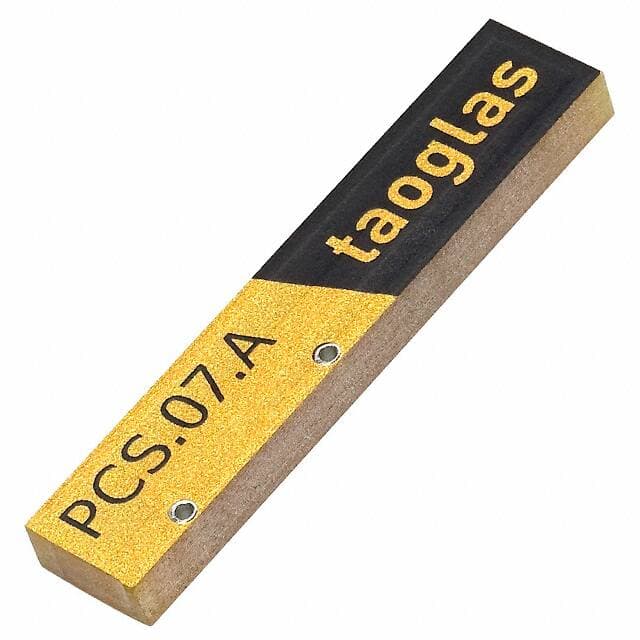

Taoglas Limited PCS.07.A

Manufacturer No:

PCS.07.A

Manufacturer:

Taoglas Limited

Package:

SMD/SMT

Description:

5 Bands Chip Wide B Surface Mount Solder 850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz -1.96dBi, 1.77dBi, 2.9dBi, 2.83dBi, 2.57dBi Cut Tape (CT) 0.118 3.00mm CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCS.07.A information

Taoglas Limited PCS.07.A technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited PCS.07.A.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SMD/SMT

Packaging
Cut Tape (CT)

Series
Nemesis

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Termination
Solder

Applications
CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA

Frequency
2.17GHz

Impedance
50Ohm

Gain
-1.96dBi, 1.77dBi, 2.9dBi, 2.83dBi, 2.57dBi

Max Frequency
2.17GHz

Frequency Range
824MHz~960MHz 1.71GHz~2.17GHz

RF Family/Standard
Cellular

Antenna Type
Chip

Number of Bands
5

Frequency Group
Wide B

Frequency (Center/Band)
850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz

Return Loss
-3dB, -4dB, -5dB, -7dB, -6dB

Height
2.9972mm

Height (Max)
0.118 3.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited PCS.07.A.

PCS.07.A Overview

The Surface Mount makes it ideal for general RF Antennas.The Antenna RF is from the Nemesis line.Packaged in solid enclosures, this RF modulator has a Cut Tape (CT) rating.Having a Surface Mount makes it suitable for most RF ic designs.Shipping overseas is convenient due to the RF ic's packing in SMD/SMT.

PCS.07.A Features

With Surface Mount
Nemesis series

PCS.07.A Applications

There are a lot of Taoglas Limited
PCS.07.A RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
