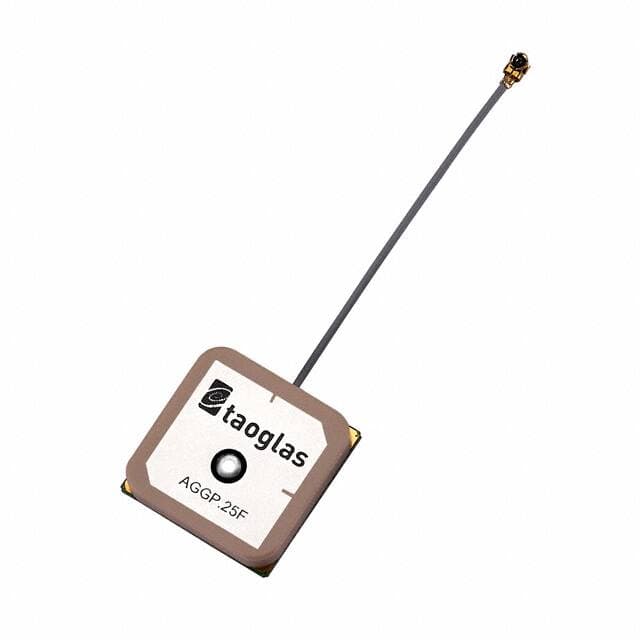

Taoglas Limited AGGP.25F.07.0060A

Manufacturer No:

AGGP.25F.07.0060A

Manufacturer:

Package:

Description:

2 Bands Ceramic Patch UHF 1GHz~2GHz Surface Mount U.FL (UMCC), IPEX MHF1 1.575GHz 1.602GHz 1.5dBic, 0dBic Tray 0.311 7.90mm GLONASS, GPS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AGGP.25F.07.0060A information

Taoglas Limited AGGP.25F.07.0060A technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited AGGP.25F.07.0060A.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Packaging
Tray

Feature
Cable - 60mm, LNA, Filter

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
GLONASS, GPS

Frequency
1.61GHz

Impedance
50Ohm

Gain
1.5dBic, 0dBic

Max Frequency
1.61GHz

Frequency Range
1.574GHz~1.61GHz

RF Family/Standard
Navigation

Antenna Type
Ceramic Patch

VSWR
2

Number of Bands
2

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.575GHz 1.602GHz

Height
7.3914mm

Length
25.1mm

Width
25.1mm

Height (Max)
0.311 7.90mm

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Taoglas Limited AGGP.25F.07.0060A.

AGGP.25F.07.0060A Overview

RF Antennas is made easier with Surface Mount.RF modulator is packaged in a solid enclosure of Tray.Having a Surface Mount makes it ideal for most RF ic designs.

AGGP.25F.07.0060A Features

With Surface Mount

AGGP.25F.07.0060A Applications

There are a lot of Taoglas Limited
AGGP.25F.07.0060A RF Antennas applications.

Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
