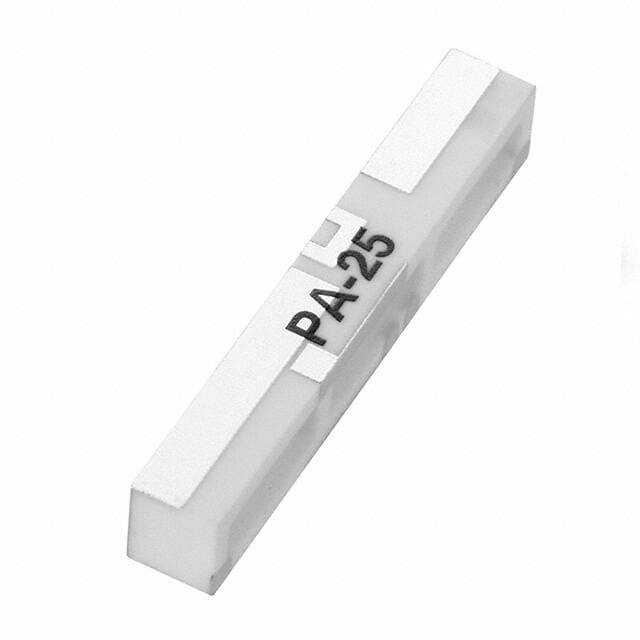

Taoglas Limited PA.25A
Manufacturer No:
PA.25A
Manufacturer:
Package:
SMD/SMT
Description:
6 Bands Chip Wide B Surface Mount Solder 850MHz 900MHz 1.7GHz 1.8GHz 1.9GHz 2.1GHz 1.49dBi, 1.76dBi, 2.4dBi, 2.53dBi, 2.46dBi, 4.62dBi Tape & Reel (TR) CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PA.25A information
Taoglas Limited PA.25A technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited PA.25A.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SMD/SMT
- Packaging
- Tape & Reel (TR)
- Series
- Anam
- JESD-609 Code
- e4
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Termination
- Solder
- Terminal Finish
- Gold (Au)
- Max Operating Temperature
- 105°C
- Min Operating Temperature
- -40°C
- Applications
- CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA
- Construction
- COMPONENT
- Frequency
- 2.17GHz
- Polarization
- LINEAR
- Impedance
- 50Ohm
- Gain
- 1.49dBi, 1.76dBi, 2.4dBi, 2.53dBi, 2.46dBi, 4.62dBi
- Frequency Range
- 824MHz~960MHz 1.7GHz~2.17GHz
- RF/Microwave Device Type
- MOBILE STATION ANTENNA
- RF Family/Standard
- Cellular
- Antenna Type
- Chip
- VSWR
- 3
- Frequency Group
- Wide B
- Frequency (Center/Band)
- 850MHz 900MHz 1.7GHz 1.8GHz 1.9GHz 2.1GHz
- Return Loss
- -6.4dB, -12.7dB, -10.8dB, -13.5dB
- Omnidirectional
- NO
- Height
- 5.9944mm
- Length
- 35mm
- Width
- 6mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Taoglas Limited PA.25A.
Datasheets:
Environmental Information:
PA.25A Overview
A generalization of RF Antennas can be made using Surface Mount.There are several Antenna RFs in the Anam series.Packaging is solid wRF modulatorh a Tape & Reel (TR) enclosure.The Surface Mount makes it suitable for most RF ics.Shipped in SMD/SMT, the RF ic is easy to ship overseas.Test statistics indicate that the RF Antennas would operate at -40°C degrees Celsius.An environment with a temperature greater than 105°C should not be used to operate the RF Antennas.
PA.25A Features
With Surface Mount
Anam series
Above 105°C degrees Celsius
PA.25A Applications
There are a lot of Taoglas Limited
PA.25A RF Antennas applications.
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
- BeiDou
- Galileo
