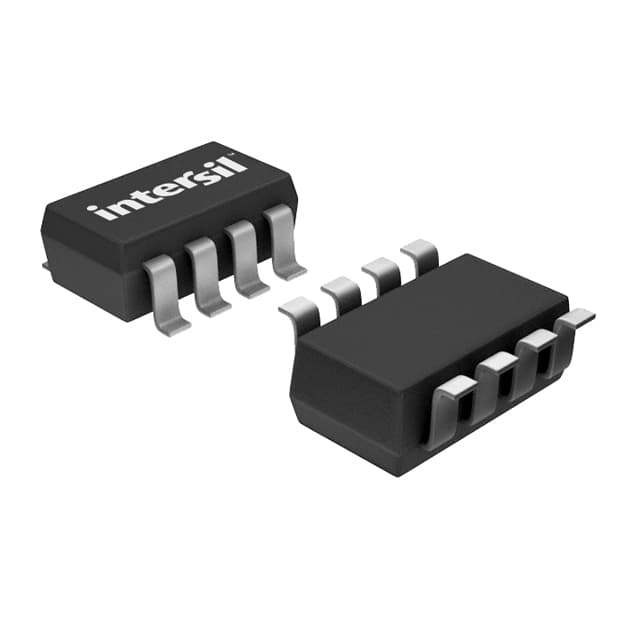

Renesas ISL84541IH-T

Manufacturer No:

ISL84541IH-T

Manufacturer:

Renesas

Package:

SOT-23-8

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 8 Pins 3.3V SOT-23-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84541IH-T information

Renesas ISL84541IH-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84541IH-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23-8

Number of Pins
8

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Resistance
60Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
8

Power Supplies
3.3/5V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Operating Supply Current
100pA

Number of Bits
2

Throw Configuration
SPST

Supply Type
Single

Off-state Isolation-Nom
76 dB

On-state Resistance Match-Nom
0.8Ohm

Switching
BREAK-BEFORE-MAKE

Switch-off Time-Max
50ns

Normal Position
NO

Height Seated (Max)
1.45mm

Width
1.6mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84541IH-T.

Datasheets:

intersil-isl84541iht-datasheets-0520.pdf

ISL84541IH-T Overview

Shipping overseas is convenient with the electronic component packed in SOT-23-8. Total terminations are 8. High-quality output is provided by the electronic component's 1 channels. If the voltage supply is 3.3V volts, the electrical component should be turned on and run. The electronic part body is injected with 8 pins. There is 60Ohm internal resistance in this digital multiplexer. For functions related to 8 pins, please refer to the datasheets. Theswitch device is a typical Multiplexer or Switches. Analogue multiplexers of the Single supply type that are cost-effective. For this multiplexer to operate, 100pA current would be sufficient. The analog switch ic utilizes SEPARATE OUTPUT outputs in total. Temperatures above 85°C should not be used to operate the switches. It can conduct in a 2-bit manner.

ISL84541IH-T Features

1 Channels
100pA Supply Current
2-Bit

ISL84541IH-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84541IH-T Analog Switches & Multiplexers ICs applications.

Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
