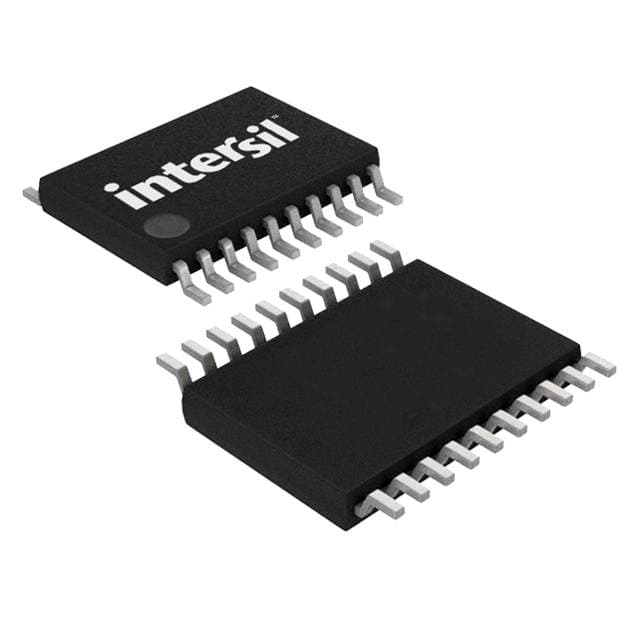

Renesas ISL22343TFV20Z

Manufacturer No:

ISL22343TFV20Z

Manufacturer:

Renesas

Package:

TSSOP

Description:

20 Terminations 3.3V Digital Potentiometers I2C 256 Positions Min 2.25V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL22343TFV20Z information

Renesas ISL22343TFV20Z technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL22343TFV20Z.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
20

Published
2006

Tolerance
20%

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Temperature Coefficient
45 ppm/°C

Resistance
100kOhm

Number of Positions
256

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Operating Supply Voltage
5V

Temperature Grade
AUTOMOTIVE

Interface
I2C

Number of Circuits
4

Max Supply Voltage
5.5V

Min Supply Voltage
2.25V

Nominal Supply Current
6?A

Memory Type
Non-Volatile

Converter Type
DIGITAL POTENTIOMETER

Bandwidth
0.12 kHz

Total Resistance
100000Ohm

Length
6.5mm

Height Seated (Max)
1.2mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL22343TFV20Z.

Datasheets:

intersil-isl22343tfv20z-datasheets-9588.pdf

ISL22343TFV20Z Overview

The package contains TSSOP files.By Non-Volatile, this pentometer begins to be stored.This digital potentiometer contains 4 embedded circuits.There are 256 positions in pentometer.The terminations are 20.For your reference, this programmable potentiometer contains 1 functions.The speed potentiometers will have a total resistance of 100000Ohm.To deliver its performance, it is powered by 3.3V.The flow can be limited by 100kOhm.Surface Mount mounts digital potentiometer.There are 20 pins on this potentiameter.The type of converter it is can be classified as DIGITAL POTENTIOMETER.When the supply voltage is 5V, the potentiometer conducts.Stability is ensured by the maximum 125°C.The minimum working temperature is -40°C in order to maintain reliability.The pentometer belong to the Digital Potentiometers family.A maximum supply voltage of 5.5V can be handled by it.The minimum supply voltage is 2.25V.

ISL22343TFV20Z Features

Available in TSSOP package
4 Circuits
20 pins
Operate supply voltage at the range of 5V

ISL22343TFV20Z Applications

There are a lot of Intersil (Renesas Electronics America)
ISL22343TFV20Z Digital Potentiometers applications.

PC
Cell phone
Household appliances
Modern office equipment
Industrial control
Medical equipment
Refrigerator
Programmable computer
Power supply
Power meter
