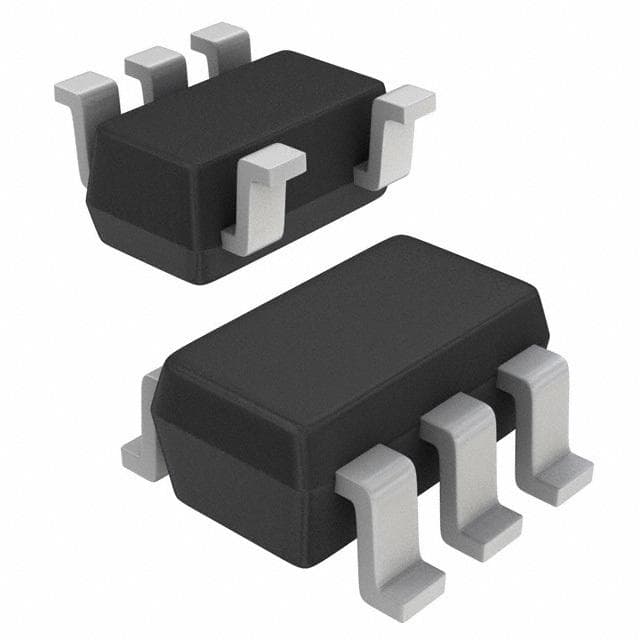

Renesas ISL84515IH-T

Manufacturer No:

ISL84515IH-T

Manufacturer:

Renesas

Package:

SOT-23-5

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 5 Pins 3.3V SOT-23-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84515IH-T information

Renesas ISL84515IH-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84515IH-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23-5

Number of Pins
5

Packaging
Cut Tape

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Resistance
20Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
5

Qualification Status
Not Qualified

Operating Supply Voltage
9V

Number of Channels
1

Max Supply Voltage
12V

Min Supply Voltage
2.4V

Operating Supply Current
1?A

Nominal Supply Current
100pA

Max Supply Current
1?A

Number of Bits
1

Throw Configuration
SPST

Turn On Delay Time
150 ns

Supply Type
Single

Turn-Off Delay Time
100 ns

Switching
BREAK-BEFORE-MAKE

Normal Position
NC

Length
2.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84515IH-T.

ISL84515IH-T Overview

Due to its SOT-23-5 packaging, the electronic part is convenient for international shipping. High reliability is achieved by using advanced packaging method Cut Tape. A total of 5 terminations have been recorded. The electronic part delivers high-quality output through its 1 channels. Turning on and running the electrical part should be easy with a 3.3V voltage supply. This electronic part can be found in the 5 series. Internally, this switch multiplexer has a resistance of 20Ohm. You can find the functions of the 5 pins in the datasheets. A analogue multiplexer of this type is a Multiplexer or Switches. It is normally recommended that users do not supply the multiplexer with voltages higher than 12V. Digital switch that provides Single power at a cost-effective price. In order for the electronic part to function properly, the lowest voltage should be 2.4V. The switch device would be able to operate with 1?A current. It may damage the digital multiplexer if the voltage is higher than 1?A. It can operate from 9V operating voltages. Temperatures over 85°C should not be allowed for the multiplexer to operate. Its conductivity is 1-bit.

ISL84515IH-T Features

1 Channels
1?A Supply Current
1-Bit

ISL84515IH-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84515IH-T Analog Switches & Multiplexers ICs applications.

Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
