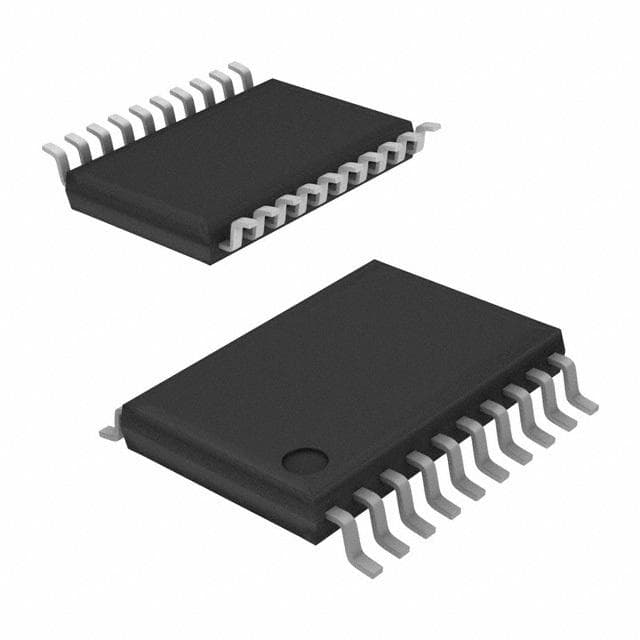

Renesas X9241AMV
Manufacturer No:
X9241AMV
Manufacturer:
Package:
TSSOP
Description:
20 Terminations 5V 20 Pin Digital Potentiometers I2C 64 Positions
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
X9241AMV information
Renesas X9241AMV technical specifications, attributes, parameters and parts with similar specifications to Renesas X9241AMV.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- TSSOP
- Packaging
- Bulk
- Published
- 2005
- Tolerance
- 20%
- JESD-609 Code
- e0
- Part Status
- Discontinued
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 20
- ECCN Code
- EAR99
- Temperature Coefficient
- 300 ppm/°C
- Number of Positions
- 64
- Terminal Finish
- Tin/Lead (Sn/Pb)
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Additional Feature
- REST 3 RESISTOR ARRAY VALUES ARE : 2000, 10000, 10000 OHMS; NONVOLATILE MEMORY
- Subcategory
- Digital Potentiometers
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 240
- Number of Functions
- 4
- Supply Voltage
- 5V
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Pin Count
- 20
- JESD-30 Code
- R-PDSO-G20
- Qualification Status
- Not Qualified
- Power Supplies
- 5V
- Temperature Grade
- COMMERCIAL
- Interface
- I2C
- Number of Circuits
- 4
- Memory Type
- Non-Volatile
- Converter Type
- DIGITAL POTENTIOMETER
- Number of Taps
- 64
- Total Resistance
- 50000Ohm
- Resistor Terminal Voltage-Max
- 5V
- Resistor Terminal Voltage-Min
- -3V
- Resistance Law
- LINEAR
- Length
- 6.5mm
- Height Seated (Max)
- 1.2mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for Renesas X9241AMV.
X9241AMV Overview
A package containing TSSOP files contains it.Non-Volatile indicates the beginning of storage for this pentometer.This digital potentiometer contains 4 embedded circuits.To secure the digital analogic, it can be accessed in the Bulk package.To protect the overcurrent of this digital potentiometer, 64 taps are provided.The pentometer consists of 64 positions.As a result, digital potentiometer has been designed to terminate at 20.4 functions are included in this programmable potentiometer for your reference.In The case, the total resistance of the speed potentiometers will be 50000Ohm.The performance of this product is a result of 5V.The digi devices shows pins 20.A mount of Surface Mount is used for digital potentiometer.A converter can be classified as DIGITAL POTENTIOMETER based on its type.The potentiameter is able to deliver voltage at 5V.Keeping the value at 70°C ensures that the digital resistor runs continuously.The system requires a minimum operating temperature of 0°C to maintain reliability.There are two additional features of this digital potentiometer: REST 3 RESISTOR ARRAY VALUES ARE : 2000, 10000, 10000 OHMS; NONVOLATILE MEMORYA family of pentometer is Digital Potentiometers.The frequency 100kHz maintains high accuracy.
X9241AMV Features
Available in TSSOP package
4 Circuits
X9241AMV Applications
There are a lot of Intersil (Renesas Electronics America)
X9241AMV Digital Potentiometers applications.
- Medical equipment
- Refrigerator
- Programmable computer
- Power supply
- Power meter
- Automatic detection of equipment
- Optic fiber network
- Adjusting the LCD Display
- Voltage control
- Replaces mechanical potentiometers
