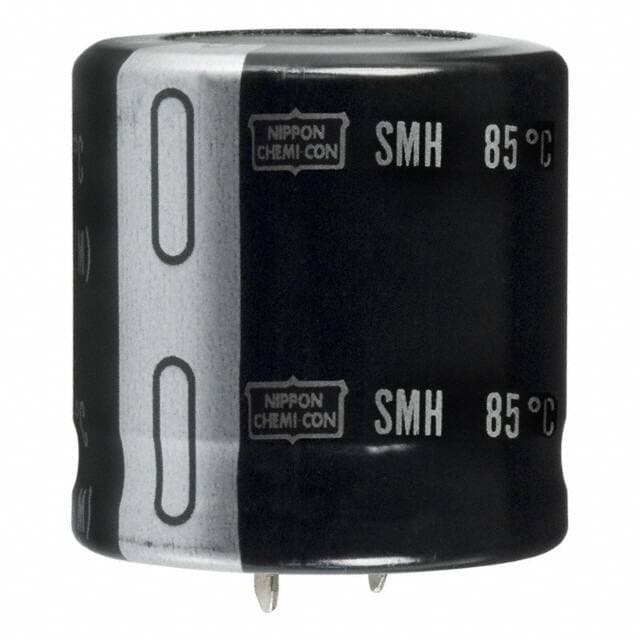

United Chemi-Con ESMH350VSN103MR30T
United Chemi-Con ESMH350VSN103MR30T

United Chemi-Con ESMH350VSN103MR30T

Manufacturer No:

ESMH350VSN103MR30T

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

SMH 10000?F Capacitor ±20% Bulk Through Hole 3.46A 1.181Dia 30.00mm -40°C~85°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMH350VSN103MR30T information

United Chemi-Con ESMH350VSN103MR30T technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMH350VSN103MR30T.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • SMH
  • Published
  • 2007
  • Size / Dimension
  • 1.181Dia 30.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Snap in
  • Resistance
  • 41mOhm
  • Applications
  • General Purpose
  • Capacitance
  • 10000?F
  • Voltage - Rated DC
  • 35V
  • Lead Pitch
  • 10mm
  • ESR (Equivalent Series Resistance)
  • 41mOhm @ 120Hz
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Ripple Current
  • 3.46A
  • Test Frequency
  • 120Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 3.46A @ 120Hz
  • Ripple Current @ High Frequency
  • 3.7368A @ 100kHz
  • Dissipation Factor
  • 0.25 %
  • Diameter
  • 30mm
  • Height
  • 30mm
  • Height Seated (Max)
  • 1.181 30.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMH350VSN103MR30T.

Datasheets:

ESMH350VSN103MR30T Overview


Full charge should result in a ripple current of 3.7368A @ 100kHz.To fully perform its function, 41mOhm @ 120Hz needs the equivalent series resistance.If the charge is low, ripple current is 3.46A @ 120Hz.Keep your seated height below 1.181 30.00mm.Based on the dissipation factor of 0.25 %, it operates.A voltage of 35V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~85°C as the operating temperature.

ESMH350VSN103MR30T Features


the ripple current is 3.7368A @ 100kHz.
the ripple current is 3.46A @ 120Hz.
a dissipation factor of 0.25 %
voltage - Rated DC of 35V
an operating temperature of -40°C~85°C


ESMH350VSN103MR30T Applications


There are a lot of United Chemi-Con
ESMH350VSN103MR30T applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
