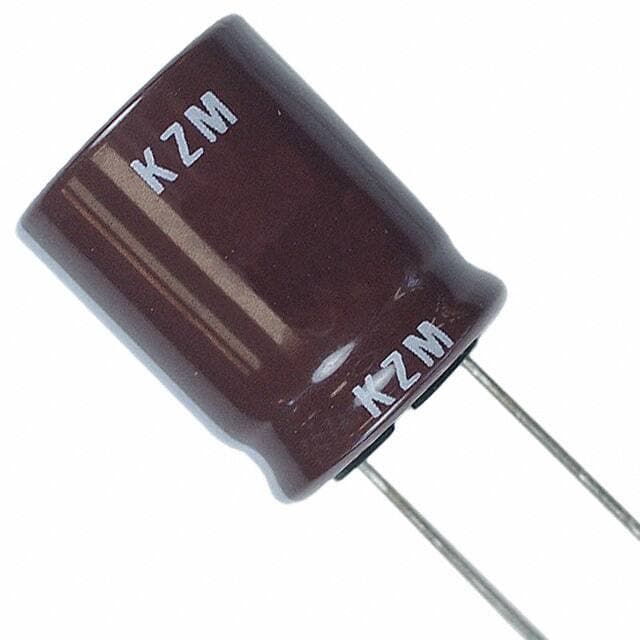

United Chemi-Con EKZM350ELL471MJ16S
United Chemi-Con EKZM350ELL471MJ16S

United Chemi-Con EKZM350ELL471MJ16S

Manufacturer No:

EKZM350ELL471MJ16S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KZM 470?F Capacitor ±20% Bulk Through Hole 1.76A 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKZM350ELL471MJ16S information

United Chemi-Con EKZM350ELL471MJ16S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKZM350ELL471MJ16S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • KZM
  • Published
  • 2013
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • General Purpose
  • Voltage - Rated
  • 35V
  • Capacitance
  • 470?F
  • Lead Pitch
  • 5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Rated (DC) Voltage (URdc)
  • 35V
  • Lead Diameter
  • 600 ?m
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Leakage Current
  • 0.1645mA
  • Ripple Current
  • 1.76A
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Impedance
  • 28mOhm
  • Ripple Current @ Low Frequency
  • 880mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.76A @ 100kHz
  • Dissipation Factor
  • 0.12 %
  • Height Seated (Max)
  • 0.689 17.50mm
  • Length
  • 16mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKZM350ELL471MJ16S.

Datasheets:

EKZM350ELL471MJ16S Overview


During full charge, the ripple current is 1.76A @ 100kHz.When the battery is charged to its lowest level, the ripple current is 880mA @ 120Hz.You should keep the height of the seat (Max) below 0.689 17.50mm.Basically, it has a dissipation factor of 0.12 %.This device should be set to 35V for its rated (DC) voltage (URdc).If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

EKZM350ELL471MJ16S Features


the ripple current is 1.76A @ 100kHz.
the ripple current is 880mA @ 120Hz.
a dissipation factor of 0.12 %
an operating temperature of -40°C~105°C


EKZM350ELL471MJ16S Applications


There are a lot of United Chemi-Con
EKZM350ELL471MJ16S applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
