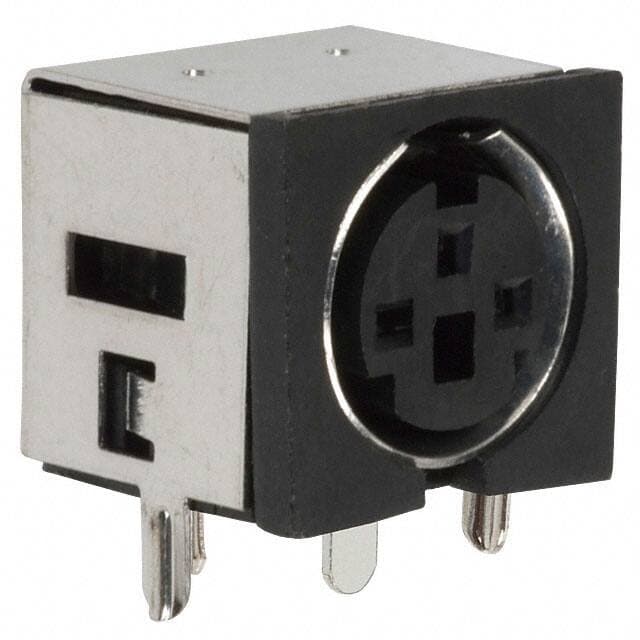

Singatron Enterprises Co Ltd 2MJ-0101A120

Manufacturer No:

2MJ-0101A120

Manufacturer:

Package:

Description:

Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 3 Positions Solder Bulk Keyed Push-Pull

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2MJ-0101A120 information

Singatron Enterprises Co Ltd 2MJ-0101A120 technical specifications, attributes, parameters and parts with similar specifications to Singatron Enterprises Co Ltd 2MJ-0101A120.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Shell Material
Polybutylene Terephthalate (PBT)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
2MJ

Published
2011

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle, Female Sockets

Number of Positions
3

Color
Black

Applications
Audio, Video

Voltage - Rated
100VAC 24VDC

Fastening Type
Push-Pull

Subcategory
DIN Connectors

DIN Conformance
YES

Current Rating (Amps)
1A 2A

Total Number of Contacts
3

Orientation
Keyed

Shielding
Shielded

Current Rating
2A

Reliability
COMMERCIAL

Body Length or Diameter
0.551 inch

Body Breadth
0.504 inch

Body Depth
0.61 inch

Contact Style
SQ PIN-SKT

Insulation Resistance
50000000Ohm

Polarization Key
POLAR PIN POSITION

Dielectric Withstanding Voltage
250VAC V

Number of Ports
1

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Singatron Enterprises Co Ltd 2MJ-0101A120.

2MJ-0101A120 Overview

It comes in a Receptacle, Female Sockets package.Through Hole, Right Angle is the mounting type of the device.We pack the product in a Bulk case.This is from the 2MJ Series.This part is mounted by Through Hole. -40°C~85°C Operating Temperature is the default.

2MJ-0101A120 Features

2MJ series

2MJ-0101A120 Applications

There are a lot of Singatron Enterprises Co Ltd
2MJ-0101A120 Circular Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
