ADI ADG836YCPZ-REEL7

Manufacturer No:

ADG836YCPZ-REEL7

Manufacturer:

ADI

Package:

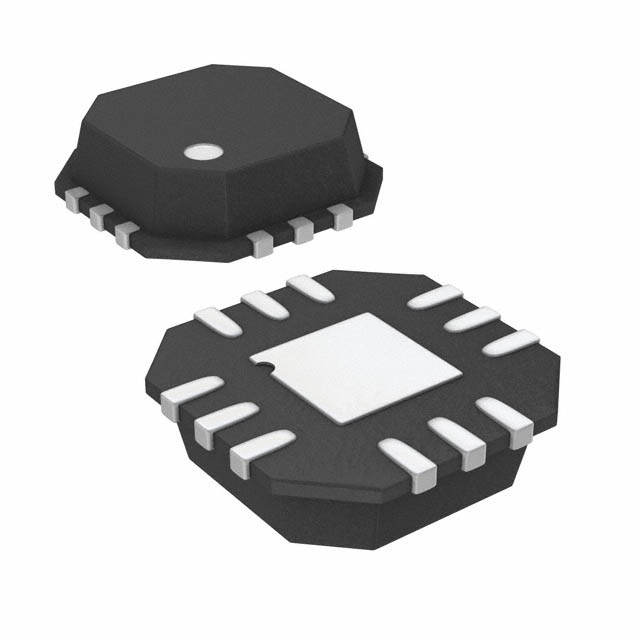

12-VFQFN Exposed Pad, CSP

Description:

26ns, 7ns SPDT 650mOhm QUAD Analog Switches BREAK-BEFORE-MAKE ADG836 12 Pins 200pA Typ 1.8V 12-VFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG836YCPZ-REEL7 information

ADI ADG836YCPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG836YCPZ-REEL7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 4 weeks ago)

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
12-VFQFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
12

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
12

ECCN Code
EAR99

Resistance
650mOhm

Terminal Finish
Matte Tin (Sn)

Subcategory
Multiplexer or Switches

Max Power Dissipation
3.6?W

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
1.8V

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
ADG836

Pin Count
12

Number of Outputs
4

Qualification Status
Not Qualified

Power Supplies
1.8/3.3V

Number of Channels
2

Interface
Parallel

Max Supply Voltage
3.6V

Min Supply Voltage
1.65V

Test Frequency
100kHz

Power Dissipation
3.6?W

Max Supply Current
1?A

Turn On Delay Time
26 ns

Supply Type
Single

Bandwidth
57MHz

Turn-Off Delay Time
7 ns

On-State Resistance (Max)
650mOhm

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
67 dB

Current - Leakage (IS(off)) (Max)
200pA Typ

Channel Capacitance (CS(off), CD(off))
25pF

On-state Resistance Match-Nom
0.1Ohm

Download datasheets and manufacturer documentation for ADI ADG836YCPZ-REEL7.

ADG836YCPZ-REEL7 Overview

Presented in 12-VFQFN Exposed Pad, CSP, this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Tape & Reel (TR). Surface Mount is where this multiplexer is located. Multiplexer and demultiplexer circuits have a number 2:1. Increasing operating temperature to around -40°C~125°C TA. Totally, there are 12 terminations. A high-quality output is provided by the electrical component's 2 channels. It is safe to turn on and run the electronic component with a 1.8V voltage supply. A total of 12 pins are injected into the electrical part body. A SPDT switching circuit is used for these analog switches. Using the ADG836 search parameter, you can discover variants of the switch. In this multiplexer, the internal resistance is 650mOhm. For details about the functions of 12 pins, please refer to the datasheets. There is Multiplexer or Switches analog multiplexer like this in the world. It is generally not recommended to supply a voltage higher than 3.6V to the switch device in normal circumstances. The digital multiplexer has a low cost Single supply. 1.65V is the lowest voltage the electrical component should receive. An analogue multiplexer drains from a single voltage supply at 1.65V~3.6V. Putting voltage greater than 1?A on the multiplexer may cause damage. The data can be transferred over a wide range of bandwidths, called 57MHz bandwidths. In this digital multiplexer, there are 4 outputs.

ADG836YCPZ-REEL7 Features

2 Channels
Switch Circuit: SPDT
Bandwidth: 57MHz

ADG836YCPZ-REEL7 Applications

There are a lot of Analog Devices Inc.
ADG836YCPZ-REEL7 Analog Switches & Multiplexers ICs applications.

Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
Cellular phones
