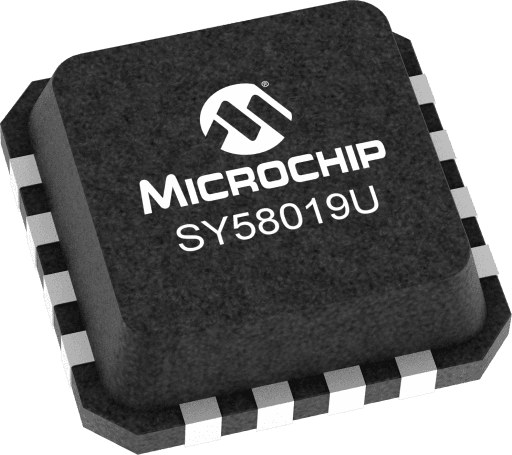

Microchip SY58019UMG
Microchip SY58019UMG

Microchip SY58019UMG

Manufacturer No:

SY58019UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

Ultra High Speed 2:1 400mV LVPECL Multiplexer

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58019UMG information

Microchip SY58019UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58019UMG.

  • Type
  • Parameter
  • Description
  • 2:01
  • Input
  • ANY
  • Output
  • RS-LVPECL
  • Supply Voltage
  • 2.5/3.3V
  • Max Freq (GHz)
  • 7
  • Icc (mA)
  • 55
  • Max Within Device Skew (ps)
  • 15
  • OE
  • False
  • Input Mux
  • False
  • Max Prop Delay (ps)
  • 240

Download datasheets and manufacturer documentation for Microchip SY58019UMG.

Data Sheets:

User Guide:

The SY58019U is a 2.5V/3.3V precision, high-speed, 2:1 differential MUX capable of handling clocks up to 7GHz and data up to 10.7Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV without any level shifting or termination resistor networks in the signal path. The outputs are 400mV, 100k compatible, LVPECL, with extremely fast rise/fall times guaranteed to be less than 70ps.The SY58019U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. For applications that require CML outputs, consider the SY58017U or for 800mV LVPECL outputs the SY58018U. The SY58019U is part of Micrel's high-speed, Precision Edge® product line.

    • DC to 10.7Gbps data throughput
    • DC to >7GHz fMAX (clock)
    • <240ps propagation delay
    • <70ps tr/ tf times
    • Ultra-low crosstalk-induced jitter: 0.7psRMS
    • <1psRMS random jitter
    • <10psPP deterministic jitter
    • <10psPP total jitter (clock)
    • Unique input termination and VTpin accepts DCcoupled and AC-coupled inputs (CML, PECL, LVDS)
    • 400mV (100k) LVPECL output swing
    • Power supply 2.5V ±5% or 3.3V ±10%
    • -40°C to +85°C temperature range
    • Available in 16-pin (3mm x 3mm) MLF® package
