W25Q128JVSIQ Review: Complete 128Mb SPI Flash Guide for Embedded Projects

Introduction

Ever tried to add reliable data logging or firmware storage to your embedded project only to run out of space or deal with flaky performance?

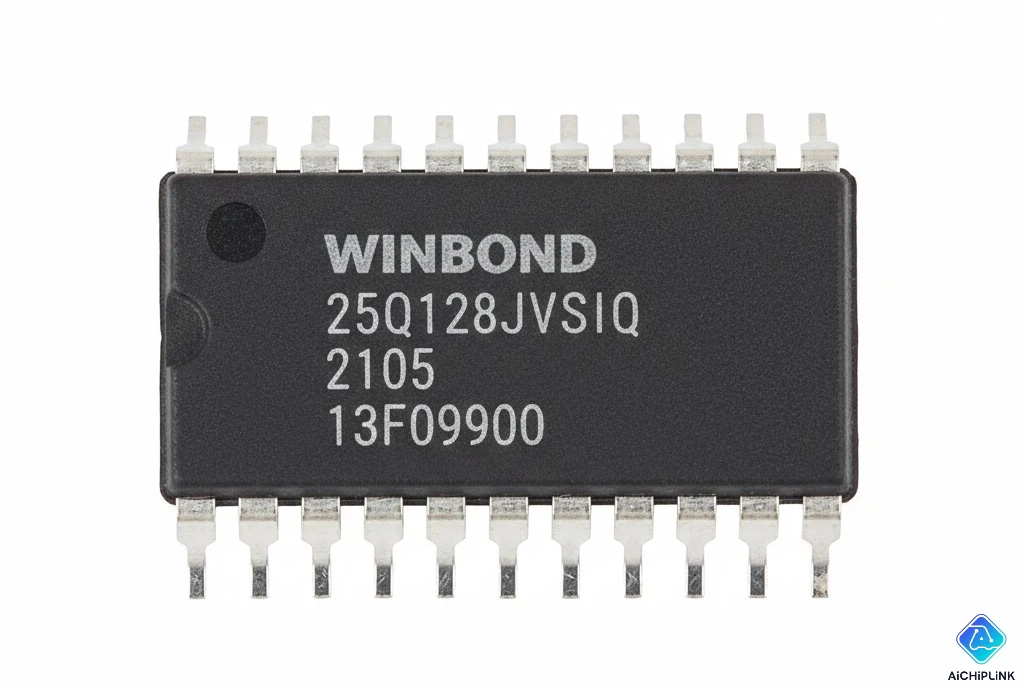

If you're working with microcontrollers like Arduino or STM32, the W25Q128JVSIQ from :contentReference[oaicite:0]{index=0} is a compact and highly reliable 128 Mbit (16 MB) SPI NOR Flash memory designed for modern embedded systems.

It delivers fast read performance up to 133 MHz, low power consumption, and proven endurance—making it ideal for IoT devices, wearables, automotive electronics, industrial controllers, and DIY projects.

In 2025–2026, the global embedded Flash memory market continues to grow rapidly as more products require higher-density non-volatile storage. The W25Q128JVSIQ stands out for its excellent balance of capacity, speed, availability, and cost.

In this guide, you will learn:

• How to program the W25Q128JVSIQ
• Its complete pinout and package details
• How to integrate it with Arduino and STM32
• Full technical specifications
• Where to buy it safely in the US market

Whether you are a hobbyist or a professional engineer, this W25Q128JVSIQ review and tutorial gives you everything you need to deploy it with confidence.

---

1. How to Program the W25Q128JVSIQ

The W25Q128JVSIQ is a high-performance SPI NOR Flash that supports:

• Standard SPI
• Dual SPI
• Quad SPI
• QPI mode

This flexibility allows you to scale performance without changing hardware.

1.1 Step-by-Step Programming Flow

1. Connect the device to your MCU using SPI signals:
   • CLK, MOSI, MISO, CS
2. Send Write Enable (0x06).
3. Program data using Page Program (0x02) (up to 256 bytes per page).
4. For higher speed, switch to Quad mode and use:
   • Quad Page Program (0x32 or 0x38)
5. Verify data using:
   • Read Data (0x03) or
   • Fast Read (0x0B)

Important note

• Always erase before programming.
• The chip supports:
  • 4 KB sector erase
  • 32 KB block erase
  • 64 KB block erase

Typical endurance is 100,000 program / erase cycles per sector.

---

1.2 Programming with Arduino and STM32

The W25Q128JVSIQ works very well with common MCU platforms.

For Arduino projects, you can use:

• SPIFlash
• Adafruit_SPIFlash

1.3 Troubleshooting Common Issues

• Read ID fails? Double-check wiring and pull-up resistors.
• Write protection? Ensure the /WP pin is high or use software unlock.
• Slow speeds? Enable Quad mode and increase the clock frequency carefully.

"The W25Q series has been my go-to flash for years — reliable, fast, and Winbond's support is excellent."
— Embedded systems engineer with 15+ years experience

STM32 + W25Q Flash Tutorial Video

This STM32-focused video perfectly demonstrates hardware connection and basic read operations for the W25Q family.

---

2.0 W25Q128JVSIQ Pinout and Package Details

Understanding the physical layout is critical for successful PCB design.

2.1 Pin Functions Explained

The W25Q128JVSIQ comes in an 8-pin SOIC package:

Pin	Name	Description
1	/CS	Chip Select
2	DO	Data Out / IO1
3	/WP	Write Protect / IO2
4	GND	Ground
5	DI	Data In / IO0
6	CLK	Clock
7	/HOLD	Hold / IO3
8	VCC	2.7V–3.6V supply

2.2 Footprint and PCB Layout Tips

The standard 208-mil SOIC footprint requires minimal space.
Keep traces short for high-speed Quad SPI and add a 0.1 µF decoupling capacitor close to VCC and GND.

2.3 Package Variations

Available in:

• SOIC-8 208 mil (most common)
• WSON
• Other compact packages for space-constrained designs

Comparison Table

Feature	W25Q128JVSIQ	Typical Competitor
Package	SOIC-8 208 mil	SOIC-8 150 mil
Max Clock	133 MHz	104 MHz
Quad SPI Support	Full	Limited
Operating Temp	-40°C to +85°C	-40°C to +85°C

---

3.0 Integrating W25Q128JVSIQ with Arduino

This chip shines in maker projects thanks to its speed and capacity.

3.1 Hardware Setup and Libraries

Use the Arduino SPI library or ready-made ones such as SFUD.
Power the device from 3.3 V, and use level shifting when working with 5 V boards.

3.2 Real-World Project Examples

• Data logger for environmental sensors (store months of readings)
• Firmware updater for custom bootloaders
• Game cartridge emulation for retro projects

3.3 Performance Benchmarks

In Quad mode, expect sustained read speeds over 50 MB/s, making it suitable for streaming data and large file storage.

Explore more ideas in our Arduino data logging projects collection.

---

4.0 Detailed Specifications and Features

The W25Q128JVSIQ delivers professional-grade performance in a hobbyist-friendly package.

4.1 Key Electrical and Memory Specs

• Density: 128 Mbit (16 Mbyte)
• Organization: 65,536 pages × 256 bytes
• Clock frequency: up to 133 MHz
• Supply voltage: 2.7 V – 3.6 V
• Active current: ~4 mA (typical)
• Standby current: < 1 µA

4.2 Security and Protection Features

• Software and hardware write protection
• Three 256-byte security registers
• 64-bit unique ID
• Top/bottom array protection

4.3 Equivalents and Alternatives

Common alternatives include:

• GD25Q128
• MX25L128
• W25Q128FV (older generation — the JV version offers higher speed)

For a deeper technical comparison, see the comprehensive flash memory overview on Wikipedia.

---

5.0 Where to Buy W25Q128JVSIQ and Pricing

5.1 Current Market Prices and Suppliers

As of early 2026, typical pricing is:

• USD $1.20 – $2.50 per unit in small quantities
• Significantly lower pricing for bulk orders (1,000+ pieces)

5.2 Best Places to Buy in the US

Authorized distributors such as Digi-Key, Mouser, and LCSC provide fast shipping and full traceability.
For hobbyists, platforms such as Amazon and AliExpress offer convenient access, but authenticity should always be verified.

Browse our full range of SPI flash memory solutions at competitive prices with expert support.

---

Conclusion

The W25Q128JVSIQ combines generous 128-Mbit capacity, high-performance Quad SPI operation, robust security features, and proven reliability in an affordable and compact package.

Whether you are building an IoT sensor node, a retro game console, or an industrial controller, this Winbond SPI NOR flash delivers the performance and longevity your design requires.

As embedded applications continue to grow more demanding in 2026 and beyond, devices like the W25Q128JVSIQ remain essential building blocks for modern designs.
