PEX8796-AB80BI: Technical Guide to Broadcom's 96-Lane PCIe Gen3 Switch

Introduction

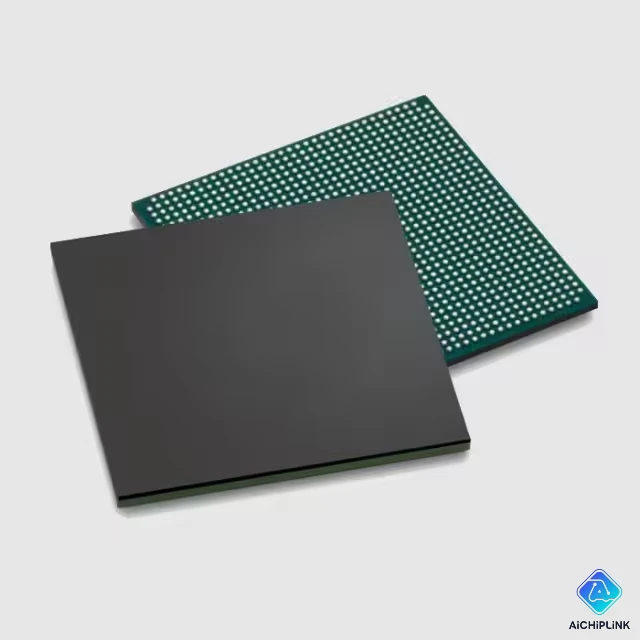

The PEX8796-AB80BI is a high-performance 96-lane PCI Express Gen3 switch manufactured by Broadcom (formerly PLX/Avago), providing 24-port configurable PCIe switching fabric with non-transparent bridging, multicast, and advanced traffic management for enterprise servers, storage systems, GPU computing, and high-bandwidth data center applications requiring scalable PCIe connectivity.

This enterprise-class switch supports up to 96 lanes of PCIe Gen3 (8 GT/s per lane) with flexible port configurations (x1, x2, x4, x8, x16) across 24 ports, delivering up to 192 GB/s aggregate bandwidth for connecting CPUs, GPUs, NVMe SSDs, network adapters, and accelerators in complex multi-host server architectures.

---

Technical Overview

Core Specifications

Parameter	Specification
PCIe Generation	Gen3 (8.0 GT/s)
Total Lanes	96 lanes
Ports	24 configurable ports
Port Widths	x1, x2, x4, x8, x16
Aggregate Bandwidth	192 GB/s (bidirectional)
Non-Transparent Bridging	Supported
Multicast	Hardware multicast support
Package	FCBGA
Power	~15-20W typical

Key Features

Massive Lane Count:

• 96 PCIe Gen3 lanes
• 24 flexible ports
• Any lane-width combination (x1 to x16)
• Non-blocking switching fabric

Advanced Features:

• Non-Transparent Bridging (NTB): Isolate host domains
• Multicast: Efficient one-to-many data distribution
• Quality of Service (QoS): Traffic prioritization
• Hot-plug support: Dynamic device insertion/removal
• SRIS (Separate Reference Independent Spread Spectrum): Simplifies clocking

Enterprise Capabilities:

• Advanced Error Reporting (AER)
• End-to-End CRC protection
• Failover and redundancy support
• Low-latency cut-through switching
• Programmable via I²C/SMBus

---

Complete Specifications

Performance Specifications

Parameter	Value
Data Rate per Lane	8.0 GT/s (Gen3)
Per-Lane Bandwidth	1 GB/s (8 Gbps, 8b/10b encoded)
Maximum Throughput	96 GB/s per direction (192 GB/s total)
Latency	<1 μs (cut-through)
Packet Size	Up to 4KB TLP (Transaction Layer Packet)

Port Configuration Flexibility

Example Configurations:

• 6× x16 ports (96 lanes total)
• 12× x8 ports (96 lanes total)
• 24× x4 ports (96 lanes total)
• Mixed: 4× x16 + 8× x4 (96 lanes)

Typical Usage:

• Upstream: 1× x16 to CPU
• Downstream: 4× x16 GPUs + 8× x4 NVMe SSDs

Electrical Specifications

Parameter	Value
Supply Voltage	1.0V (core), 3.3V (I/O)
Power Consumption	15-20W typical (configuration dependent)
PCIe Compliance	PCI-SIG Gen3 certified

---

Applications

GPU Computing Servers

AI/ML Training Clusters:

CPU (Root Complex)
    ↓ x16
PEX8796-AB80BI
    ├─► GPU 1 (x16) - NVIDIA A100/H100
    ├─► GPU 2 (x16) - Deep learning
    ├─► GPU 3 (x16) - Training workloads
    ├─► GPU 4 (x16) - Model inference
    └─► NVMe SSD array (4× x4) - Dataset storage

Enables multi-GPU configurations
Peer-to-peer GPU communication via switch
Direct GPU-to-GPU data transfer

NVMe Storage Arrays

All-Flash Arrays:

• 24× NVMe SSDs (x4 each = 96 lanes)
• Aggregate: 96 GB/s bandwidth
• Low-latency direct-attached storage
• Enterprise storage controllers

Advantages:

• Massively parallel storage access
• Eliminates SAS/SATA bottlenecks
• Sub-microsecond latency switching

Multi-Host Servers

Non-Transparent Bridging (NTB):

Host 1 (CPU A) ◄──┐
                  │
            PEX8796-AB80BI (NTB mode)
                  │
Host 2 (CPU B) ◄──┘

Shared PCIe devices:
- Shared NVMe storage
- Shared GPUs
- Shared network adapters

Each host sees isolated address space
NTB provides inter-host communication

High-Frequency Trading (HFT)

Ultra-Low Latency:

• FPGA accelerator cards
• Market data feed NICs
• Trading algorithm processors
• <1 μs switching latency critical

Video Production / Broadcast

Real-Time Video Processing:

• Multiple GPU render nodes
• High-speed video capture cards
• NVMe scratch storage
• 4K/8K video workflows

---

Design Considerations

Thermal Management

Power Dissipation:

• Typical: 15-20W
• Maximum: ~25W (full utilization)

Cooling Requirements:

• Heatsink mandatory (forced air)
• Thermal pad to chassis/cold plate
• Maintain junction <100°C

PCB Design

Critical Requirements:

Differential Pairs:

• 100Ω differential impedance
• Matched lengths within ±5 mils per lane
• Minimize vias and discontinuities

Signal Integrity:

• Gen3 (8 GT/s) requires careful routing
• Use low-loss PCB materials (e.g., Megtron 6)
• Minimize crosstalk between lanes

Power Delivery:

• Clean 1.0V and 3.3V rails
• Multiple decoupling capacitors
• Low-ESR bulk capacitors

Clocking

SRIS Support:

• No common reference clock required
• Simplifies multi-card designs
• Independent clock domains per port

Clock Sources:

• 100 MHz differential reference clock
• Spread spectrum compatible

Software Configuration

Programming:

• I²C/SMBus interface for configuration
• Port bifurcation settings
• NTB domain assignments
• Traffic shaping parameters

Operating System Support:

• Linux: Native PCIe enumeration
• Windows Server: Full driver support
• VMware ESXi: PCIe passthrough capable

---

Conclusion

The PEX8796-AB80BI delivers enterprise-class 96-lane PCIe Gen3 switching with 24 configurable ports, 192 GB/s aggregate bandwidth, and advanced features including non-transparent bridging and hardware multicast. Ideal for GPU computing, NVMe storage arrays, multi-host servers, and high-performance data center applications requiring massive PCIe connectivity with sub-microsecond latency.

Key Advantages:

✅ 96 Lanes: Massive PCIe Gen3 connectivity
✅ 24 Ports: Flexible x1-x16 configurations
✅ 192 GB/s: Non-blocking aggregate bandwidth
✅ NTB Support: Multi-host isolation and sharing
✅ Low Latency: <1 μs cut-through switching
✅ Enterprise-Grade: AER, hot-plug, failover support
