You often have to pick between tantalum capacitors and aluminum capacitors when you make electronic circuits. Tantalum capacitors can hold more charge in a smaller space. They also have lower ESR, which is good for small, fast circuits. But these capacitors cost more money. They can also break in a dangerous way if you use too much voltage. Aluminum capacitors are usually bigger and cost less. But they break in a different way. The difference between tantalum and electrolytic capacitor types changes your choices about safety, price, and how long they last. Knowing how each capacitor works helps you choose the best one for your project.
Key Takeaways
- Tantalum capacitors are smaller and store more charge in less space. This makes them good for small, fast circuits. Aluminum capacitors cost less and can handle higher voltages. But they are bigger and have more resistance. This means they are not good for high-frequency circuits. Always check the voltage rating and polarity marks before using capacitors. This helps you avoid damage or failure. Tantalum capacitors work well and last a long time. But they can break suddenly if used wrong. Aluminum capacitors wear out slowly over time. Pick tantalum capacitors if you want small size, reliability, and steady capacitance. Choose aluminum capacitors if you want to save money or need higher voltage.
Construction
Tantalum Capacitor Structure
A tantalum capacitor uses pure tantalum powder. The powder is pressed into a small, sponge-like shape. This shape gives the anode a big surface area. A thin layer of tantalum pentoxide covers the surface. This layer acts as the dielectric. The cathode uses solid manganese dioxide or a polymer. Carbon and silver layers help connect everything. The solid electrolyte keeps the capacitor steady and dependable.
-
The anode is a sponge block with a wire.
-
The dielectric is a thin film of tantalum pentoxide.
-
The cathode uses manganese dioxide or a polymer.
-
The solid electrolyte makes the capacitor small and stable.
Aluminum Capacitor Structure
Aluminum electrolytic capacitors have a different build. The anode is a sheet of aluminum foil. The foil is etched to make more surface area. It is anodized to form a thin aluminum oxide layer. This layer is the dielectric. The electrolyte can be liquid or a solid polymer. The cathode is another aluminum foil. The liquid electrolyte can fix tiny damage in the oxide layer. This helps the capacitor last longer.
Here is a table that shows the main differences:
| Component | Aluminum Electrolytic Capacitors | Tantalum Capacitors |
|---|---|---|
| Anode | Etched aluminum foil | Sintered tantalum powder |
| Dielectric | Aluminum oxide | Tantalum pentoxide |
| Electrolyte | Liquid or solid polymer | Solid manganese dioxide or polymer |
| Cathode | Aluminum foil | Carbon/silver layers over MnO2 or polymer |
| Polarity | Marked negative terminal | Marked positive terminal |
Electrolyte and Dielectric
The type of electrolyte changes how big and strong capacitors are. Tantalum capacitors use a solid electrolyte. This lets them hold more charge in less space. The dielectric, tantalum pentoxide, has three times more permittivity than aluminum oxide. So, a tantalum capacitor can be one-third the size of an aluminum capacitor for the same job.
Aluminum capacitors often use a liquid electrolyte. This lets them fix small problems but makes them bigger. Solid polymer types are smaller and steadier but not as tiny as tantalum capacitors.
You will see different markings on these capacitors. Aluminum capacitors mark the negative side. Tantalum capacitors mark the positive side. This helps you put them in the right way.
Tip: Tantalum capacitors give more charge in less space. This is good for small gadgets. Aluminum capacitors come in more sizes and cost less, but they are bigger.
Electrical Performance
Capacitance and Voltage
Tantalum capacitors and aluminum electrolytic capacitors are different. Tantalum capacitors hold a lot of charge in small spaces. This makes them good for tiny devices. Aluminum electrolytic capacitors have many capacitance choices. Some aluminum electrolytic capacitors reach 2,700,000 microfarads. Tantalum capacitors usually go up to 15,000 microfarads.
Voltage ratings are also not the same. Aluminum electrolytic capacitors can handle higher voltages. Some work at up to 600 volts. Most tantalum capacitors have lower voltage ratings. They are often below 150 volts. You must check these ratings before you pick a capacitor.

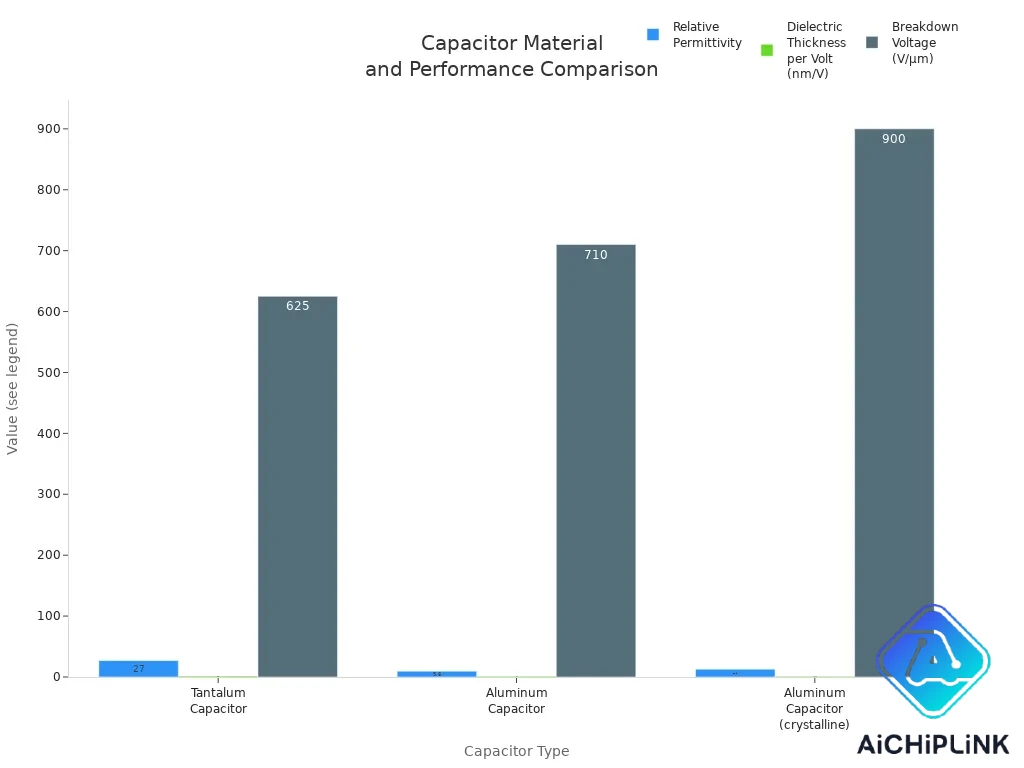

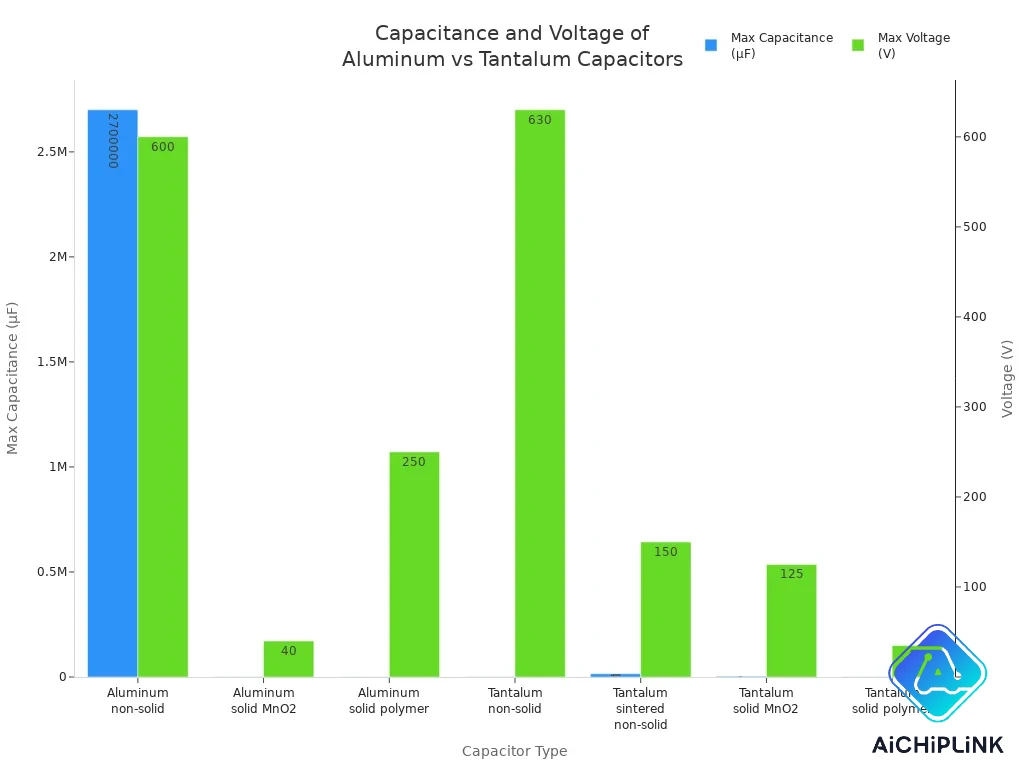

Here is a table that shows the usual capacitance and voltage ranges:
| Capacitor Type and Electrolyte | Capacitance Range (μF) | Maximum Rated Voltage at 85 °C (V) |
|---|---|---|
| Aluminum (non-solid electrolyte) | 0.1 to 2,700,000 | Up to 600 |
| Aluminum (solid MnO2) | 0.1 to 1,500 | Up to 40 |
| Aluminum (solid conductive polymer) | 10 to 1,500 | Up to 250 |
| Tantalum (non-solid sulfuric acid) | 0.1 to 1,000 | Up to 630 |
| Tantalum (sintered non-solid sulfuric acid) | 0.1 to 15,000 | Up to 150 |
| Tantalum (solid MnO2) | 0.1 to 3,300 | Up to 125 |
| Tantalum (solid conductive polymer) | 10 to 1,500 | Up to 35 |
Note: Always look at the voltage rating before using a capacitor. If you use a capacitor above its rating, it can break.
ESR and Frequency Response
Equivalent Series Resistance (ESR) affects how well a capacitor works. This is important for high-frequency circuits. Tantalum capacitors have lower ESR than aluminum electrolytic capacitors. They handle quick changes in current better. This helps in circuits that need fast response, like power supplies for microchips.
Here is a table that compares ESR values for different capacitors:
| Capacitor Type | ESR Range at 22 μF (Ω) | ESR Range at 100 μF (Ω) | ESR Range at 470 μF (Ω) |
|---|---|---|---|
| Standard Aluminum | 7 to 30 | 2 to 7 | 0.13 to 1.5 |
| Low-ESR Aluminum | 1 to 5 | 0.3 to 1.6 | N/A |
| Solid Aluminum | N/A | 0.2 to 0.5 | N/A |
| Standard Solid Tantalum | 1.1 to 2.5 | 0.9 to 1.5 | N/A |
| Low-ESR Tantalum | 0.2 to 1 | 0.08 to 0.4 | N/A |
| Wet-Foil Tantalum | 2.5 to 3.5 | 1.8 to 3.9 | N/A |
Tantalum capacitors keep low ESR even at high frequencies. This makes them better for high-frequency circuits. Aluminum electrolytic capacitors have higher ESR. This can limit their use in fast-switching circuits. As aluminum electrolytic capacitors get older, their ESR goes up. This happens because the liquid inside dries out. Tantalum capacitors use a solid electrolyte. They stay more stable over time.
Tip: For high-frequency or high-current circuits, tantalum capacitors often work better.
Leakage and Tolerance
Leakage current is a small current that flows through a capacitor. It happens even when the capacitor should block DC. Tantalum capacitors usually have more leakage current than aluminum electrolytic capacitors. Leakage can get worse if temperature or humidity rises. You can sometimes lower leakage in tantalum capacitors. You do this by applying the rated voltage for a short time. This is called voltage conditioning.
Aluminum electrolytic capacitors have leakage based on the oxide layer inside. They can fix small problems by repairing the oxide layer. Tantalum capacitors and polymer aluminum capacitors heal in a different way. The conductive polymer stops working at damaged spots. This blocks current and stops bigger problems.
Tolerance tells you how close the real capacitance is to the printed value. Aluminum electrolytic capacitors usually have a tolerance of ±20%. This wide range is okay for many uses, like filtering or energy storage. It is not good for circuits that need exact values. Tantalum capacitors do not always list their tolerance. They are known for stable performance in tough conditions.
Note: If your circuit needs tight tolerance, check other capacitor types or look at the datasheet for exact values.
Reliability and Lifespan
Failure Modes
It is important to know how capacitors can stop working. Tantalum capacitors can fail in a few main ways:
-
They might let too much current leak through.
-
Their ESR can get too high, so they do not work well.
-
They may not hold enough charge if their capacitance drops.
These problems can happen if the capacitor is not good quality. Using the wrong capacitor for your circuit can also cause trouble. Tantalum capacitors can break more easily in high voltage or low impedance circuits. Heat and moisture during soldering can hurt them too. Aluminum capacitors do not usually fail suddenly. But they can dry out or lose their ability to store charge as time goes on.
Tip: Always check the voltage and temperature ratings before you choose a capacitor. Picking the right one helps stop most failures.
Operating Life
You want your circuits to work for a long time. The kind of capacitor you use matters a lot. Aluminum polymer capacitors often last longer than solid tantalum capacitors. They do not have liquid inside, so they cannot dry out. These capacitors can handle high ripple currents and fix small problems by themselves. Solid tantalum capacitors do not wear out the same way. Their solid build and self-healing make them very steady. Over time, they can even get more reliable. But if you use them the wrong way, like with big surge currents, they can break fast.
Environmental Factors
The place where you use a capacitor changes how long it lasts. Here is a table that shows how different things affect aluminum and tantalum capacitors:
| Environmental Factor | Effect on Aluminum Capacitors | Effect on Tantalum Capacitors |
|---|---|---|
| High Temperature | Electrolyte dries out, higher leakage, shorter life | Solid electrolyte gives better stability and longer life |
| Electrical Stress | Faster aging, higher ESR | Can cause sudden failure if flaws exist |
| Thermal Cycling | Speeds up aging and loss of capacitance | Less sensitive, but flaws can still cause failure |
| Frequency | Changes ESR and capacitance | More stable, less affected by frequency |
You should keep capacitors away from too much heat and stress. Tantalum capacitors handle changes in temperature better. But they still need careful design to avoid sudden problems. Aluminum capacitors are more likely to wear out if it stays hot for a long time.
Note: Choosing the right capacitor for your environment helps your project last longer and work better.
Size, Cost, and Applications
Physical Size
Tantalum capacitors are much smaller than aluminum capacitors. They can hold more charge in less space. This is great for tiny devices. Aluminum capacitors are bigger for the same job. Look at the table to see the size difference:
| Tantalum Capacitor Case Code | Dimensions (mm) | Max Capacitance (µF) | Max Voltage (V) |
|---|---|---|---|
| A (EIA 3216-18) | 3.2 × 1.6 × 1.6 | ~47 | Up to 35 |
| B (EIA 3528-21) | 3.5 × 2.8 × 2.1 | ~100 | Up to 35 |
| C (EIA 6032-28) | 6.0 × 3.2 × 2.8 | ~220 | Up to 50 |
| D (EIA 7343-31) | 7.3 × 4.3 × 3.1 | ~470 | Up to 50 |
| E (EIA 7343-43) | 7.3 × 4.3 × 4.3 | ~680 | Up to 50 |
Aluminum capacitors cannot be as small for the same ratings. If you want a tiny design, tantalum capacitors are better.
Cost Comparison
Tantalum capacitors cost more money than aluminum capacitors. They use rare materials and work well in small spaces. Aluminum capacitors are cheaper and easy to buy. Here is a price chart:
| Capacitor Type | Typical Price Range (USD) | Key Notes on Pricing and Applications |
|---|---|---|
| Aluminum Electrolytic | $0.10 - $5.00 | Used for power supply filtering; costs less than tantalum. |
| Tantalum Electrolytic | $0.20 - $10.00 | Smaller and more stable; costs more because of reliability and size. |
If you need to save money, pick aluminum capacitors. Tantalum capacitors are worth it if you need small size and high dependability.
Where Tantalum Capacitors Excel
Pick tantalum capacitors when you need:
-
Small size and high capacitance
-
Steady performance for a long time
-
Low leakage current
-
Good frequency response
-
Long life without drying out
These capacitors are used in microelectronics, medical tools, aerospace, and portable gadgets. Most tantalum capacitors are made for surface mount technology.
Tip: Use tantalum capacitors when you need space, stability, and reliability.
Where Aluminum Capacitors Are Used
Aluminum capacitors are best for power supplies and general circuits. You will see them in:
-
Power supply filtering
-
Audio equipment
-
Motor drives
-
Big energy storage
They give lots of capacitance for little money. If you do not care about size, aluminum capacitors are a good pick. They are also easier to find and do not change price much because aluminum is common.
Tantalum Capacitors vs. Ceramic Capacitors
Key Differences
When you pick parts for your circuit, you might look at tantalum capacitors and ceramic capacitors. These two types work best in different ways.
Ceramic capacitors are non-polarized. You can use them with AC or DC power. Tantalum capacitors are polarized. You must connect them the right way. If you do not, they can break. Ceramic capacitors work well at high frequencies. They have low ESR. This helps them filter and couple signals. Tantalum capacitors have higher ESR. They do not work as well at high frequencies.
Ceramic capacitors can change as time passes. Their capacitance can drop because they age. Tantalum capacitors stay steady. Their capacitance does not go down. They react to temperature in a straight line. Ceramic capacitors can lose a lot of capacitance at rated voltage. Tantalum capacitors keep their value even if voltage changes.
Tantalum capacitors can fail quickly if you use too much voltage. Sometimes, they can catch fire. Ceramic capacitors are tougher. They might break from shaking or electrical stress. These failures are not as risky.
Here is a table that shows how these two types compare:
| Characteristic | Tantalum Capacitors | Ceramic Capacitors |
|---|---|---|
| Polarization | Polarized | Non-polarized |
| ESR | Higher, less suitable for high-frequency | Lower, ideal for high-frequency |
| Capacitance Stability | Very stable, no aging | Can age, capacitance drops over time |
| Voltage Response | Stable capacitance | Capacitance drops with voltage |
| Failure Mode | Catastrophic if misused | Robust, less dangerous failures |
| Temperature Response | Linear | Non-linear |
| Microphonic Effect | None | Present |
| Application Suitability | Long-term stability, reliability | High-frequency, low inductance |
Ceramic capacitors are good for low ESR and high-frequency jobs. Tantalum capacitors are better for steady capacitance and long life. If you need a capacitor for filtering in a power supply, ceramic capacitors are a smart pick. If you want reliability and steady work, choose tantalum capacitors.
Tip: Always check the voltage and frequency needs of your circuit before you pick between tantalum capacitors and ceramic capacitors.
You should pick the right capacitor for your project. Tantalum capacitors are small and work very well. They last a long time and are very reliable. Aluminum capacitors cost less money. They can handle higher voltages. Check the table below to see how they compare:
| Feature | Tantalum Capacitors | Aluminum Capacitors |
|---|---|---|
| Size | Smaller | Larger |
| Cost | Higher | Lower |
| Reliability | High | Good for rugged uses |
| Voltage Rating | Lower | Higher |
| ESR | Lower | Higher |
Think about what matters most for your project. Is size, price, or reliability more important? Always read the datasheet before you decide. Weigh the good and bad points of each type. This helps you make circuits that work well and last a long time.
FAQ
What happens if you connect a tantalum capacitor backward?
You can hurt the capacitor if you put it in wrong. Tantalum capacitors have a positive and negative side. If you switch the sides, the capacitor can break fast. Sometimes, it might even burn or pop. Always look at the markings before you put it in.
Can you use aluminum capacitors in high-frequency circuits?
Aluminum capacitors are not good for high-frequency use. Their ESR is higher than some other capacitors. For high-frequency circuits, ceramic or tantalum capacitors work better.
Why do tantalum capacitors cost more than aluminum capacitors?
Tantalum is not easy to find. Making these capacitors is hard. These things make tantalum capacitors cost more. You pay extra for their small size and steady work.
How do you choose between tantalum and aluminum capacitors?
-
Use tantalum capacitors if you need small size and steady work.
-
Pick aluminum capacitors if you want to save money or need higher voltage.
-
Always check what your circuit needs before you pick one.
