How Broadcom PHY Chips Enable 10GBase-T

You get help from Broadcom PHY Chips when you want fast and steady 10GBase-T Ethernet. These chips use smart signal processing. They give strong performance and do not use much power. You can look at their main new features in the table below:

Key Innovation	Description
High-performance, power-efficient chips	Give fast data speeds and use less power.
Integration with PoE and TSN	Work with Power over Ethernet and Time-Sensitive Networking.
Enhanced energy efficiency and lower latency	Make networks better for data centers and 5G.

• Broadcom has 26.87% of the world’s 10GBase-T PHY market, worth $879.44 million USD.

• More companies want fast connections for new uses, so the market is growing fast.

Key Takeaways

• Broadcom PHY Chips give fast and steady 10GBase-T Ethernet. They make sure the network works well and uses little power.

• These chips work with copper and optical connections. This lets networks change easily and upgrade without trouble.

• AutoGrEEEn™ technology cuts power use by up to 70% when activity is low. This saves energy and helps hardware last longer.

• Broadcom PHY Chips can work with older Ethernet standards. This makes it simple to connect new and old devices together.

• Smart signal processing keeps data safe and lowers mistakes. It helps send data smoothly even when the network is busy.

What Is 10GBase-T

Definition And Requirements

You use 10GBase-T when you want fast Ethernet. It works with copper cables. This standard lets you send data at 10 gigabits per second. You can send and receive data at the same time. This is called full-duplex communication. Devices connect using RJ45 connectors. Upgrading networks is easy because these connectors are common.

Here is a quick look at the main technical requirements for 10GBase-T:

Component	Meaning
Data rate	10 Gbps (full duplex)
Medium	Balanced twisted-pair copper cable
Connector	8P8C modular connector (RJ45)
Maximum distance	100 m on Cat6a / Cat7, 55 m on Cat6 (high-quality installs)
Signaling	PAM-16 (16-level Pulse Amplitude Modulation)

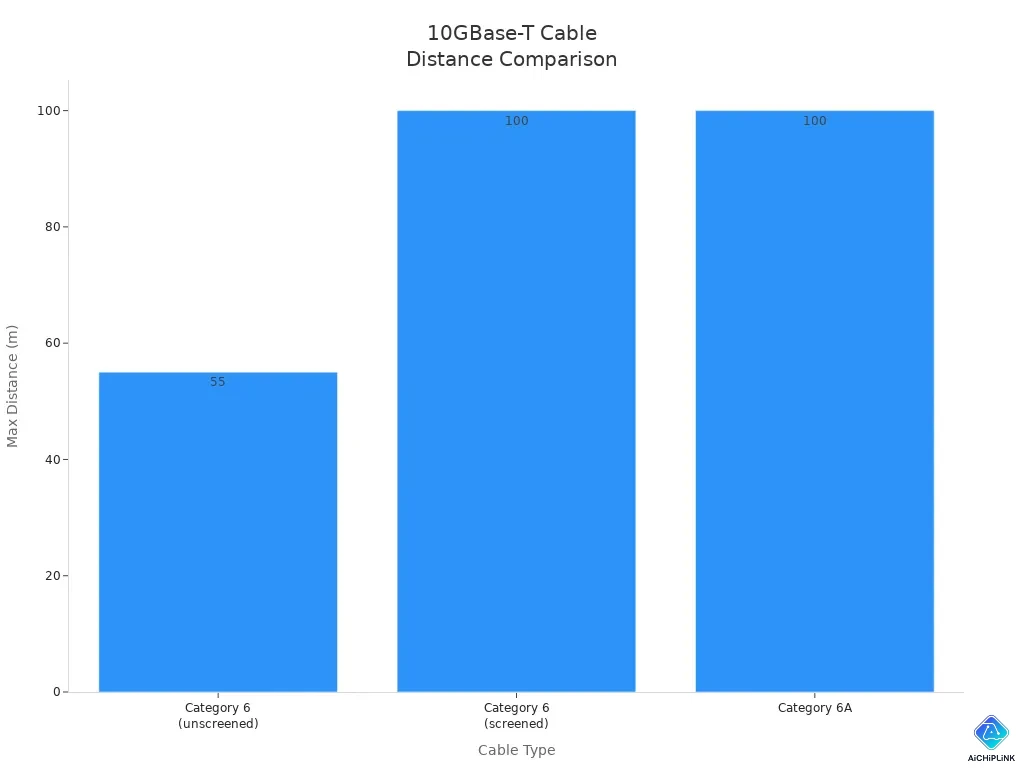

You need the right cable for the best speed. Category 6A or Category 7 cables can reach up to 100 meters. Category 6 cables can go up to 55 meters. But you need a very good installation for this. Here is a simple chart to help you compare cable distances:

Tip: Always check your cable type before setting up a 10GBase-T network. The right cable helps you get the speed and distance you want.

Role Of PHY Chips

You need PHY chips to make 10GBase-T work. These chips turn digital data into signals for copper wires. They also change signals back into data when it comes from the network.

The PHY chip sits between your device’s MAC layer and the cable. It connects to the cable through the Media Dependent Interface. It links to the MAC layer using the Media Independent Interface. The chip has several important parts:

Component	Description
PMD	Physical Medium Dependent – sets the rules for sending signals on the cable.
PMA	Physical Medium Attachment – connects the chip to the cable.
PCS	Physical Coding Sublayer – encodes and decodes data for transmission.

When you send data, the MAC layer gets the frame ready. The PHY chip turns this frame into an analog signal for the cable. On the other end, another PHY chip changes the signal back into data. Then it sends the data to the MAC layer. Broadcom PHY Chips use advanced technology to make this process fast and reliable, even at high speeds.

Broadcom PHY Chips: Core Technologies

Signal Processing Features

Broadcom PHY Chips help your network stay fast and steady. These chips use AI and machine learning to handle data better. When you send data, the signal can get weak or noisy. Broadcom PHY Chips fix these problems right away. They use smart algorithms to clean up signals and get the data back. This means you see fewer mistakes, even at 10 gigabits per second. You can count on these chips for low bit error rates. Your data stays safe and your connection stays strong.

Note: Dynamic equalization and clock data recovery give you good performance everywhere, from busy offices to big data centers.

Power Efficiency And AutoGrEEEn™

Power use is important when you build a network. Broadcom PHY Chips use much less power than most other chips. You can see this in the table below:

Chipset	Power Consumption (W)	Industry Average (W)
Broadcom BCM84891L	1.5	5 - 8
Marvell AQR113C	2.0 - 2.5	5 - 8
Realtek RTL8261BE	N/A	5 - 8

You save energy and money with these chips. Broadcom’s AutoGrEEEn™ technology helps even more. It lowers power use by up to 70% when your network is not busy. You do not need to worry about old devices. AutoGrEEEn™ works with both new and old equipment. You get energy savings across your whole network.

• AutoGrEEEn™ lowers power use when the link is not busy.

• It brings Energy Efficient Ethernet to older devices.

• You can get up to 70% less power use, even if your devices do not support EEE.

Tip: Using less power means less heat and longer life for your network hardware.

Copper And Optical Support

You want your network to be flexible. Broadcom PHY Chips let you use both copper and optical connections. This means you can use the same chip for different cables and setups. The table below shows two popular models and what they support:

Model	Package Size	Power Consumption	Media Support
BCM8706	13mm x 13mm	< 1.5W	Full range of SFP+ fiber and copper
BCM8727	19mm x 19mm	2.4W (1.2W/channel)	Full range of SFP+ fiber and copper

You can connect to SFP+ fiber or copper cables without changing your hardware. This makes it easy to upgrade or grow your network. You get speed and reliability no matter what cable you use.

Callout: Broadcom PHY Chips help you build networks that are ready for today and tomorrow.

Overcoming Challenges

Crosstalk And Interference

There are many things that can mess up 10GBase-T networks. Crosstalk is a big problem. It can make your network slow or less reliable. There are two main kinds of crosstalk. Internal crosstalk happens inside one cable. Alien crosstalk comes from other cables nearby. This is worse when cables are packed close together. Bad cable work and poor ends can make crosstalk worse.

Here is a simple table:

Type of Crosstalk	Description
Internal Crosstalk	Happens inside one cable and hurts performance at high speeds.
Alien Crosstalk	Comes from other cables in big bundles and can mess up data.
NEXT (Near-End Crosstalk)	Checks for signal problems between wire pairs at the end near your device.

Broadcom PHY Chips use smart signal processing to fix these problems. Your data stays steady, even in busy places like data centers.

Tip: Always use good cables and install them well to keep crosstalk low.

Power Consumption Solutions

You want your network to stay cool and not waste energy. Old 10GBase-T chips used a lot of power, sometimes 10 watts for each port. New chips use much less power now. Most use less than 4 watts per port. Some new ones use under 2.5 watts. Shorter cables need less power than long ones.

Cable Length	Power Dissipation
100 meters	3.5W
30 meters	2.5W
10 meters	< 2W

Broadcom PHY Chips help you save power. They have special modes to use less energy when not busy. You can save up to 90% with EEE algorithms. Short reach mode also saves energy on short cables.

• Power-Down mode stops sending data when not needed.

• The chip only uses the power it needs for sending and getting data.

Using less power means less heat and your hardware lasts longer.

Backward Compatibility

You want your network to work with old and new devices. Broadcom PHY Chips support older Ethernet standards like 10BASE-T, 100BASE-TX, and 1000BASE-T. You can connect to old systems without trouble. These chips also work for faster networks. You can upgrade or grow your network easily.

Feature	Description
Backward Compatibility	Works with 10/100/1000BASE-T, so old and new devices connect together.
Scalability	Changes to fit different network speeds and places.

Note: Backward compatibility helps protect your network and makes upgrades simple.

Real-World Benefits

Reliability And Performance

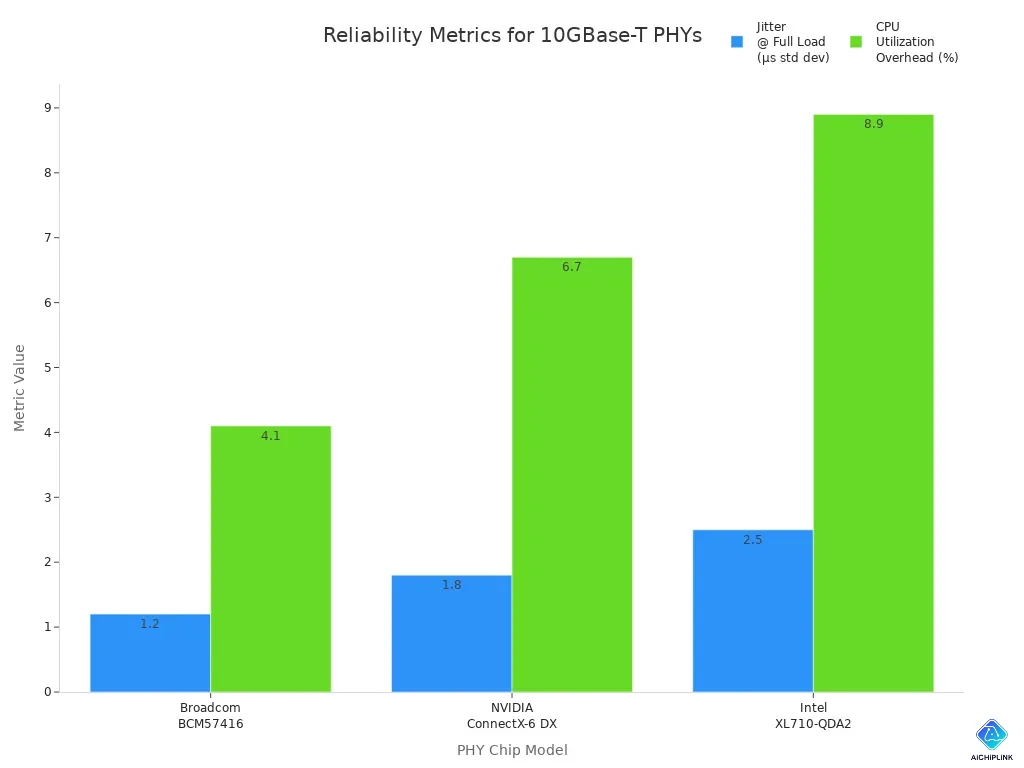

You want your network to work well all the time. Broadcom PHY Chips give strong reliability and performance for 10GBase-T. They keep jitter low and do not use much CPU power. This helps your data move smoothly. The table below shows how Broadcom BCM57416 compares to others:

Metric	Broadcom BCM57416	NVIDIA ConnectX-6 DX	Intel XL710-QDA2
Jitter @ Full Load (μsec std dev)	1.2 μs	1.8 μs	2.5 μs
CPU Utilization Overhead (%)	4.1%	6.7%	8.9%
No Replacement Units After 12 Months	All 10 remained functional	2 failed thermal stress tests	3 developed CRC errors post-reboot loops

Broadcom chips did not fail or have problems for months. They worked even when you swapped them during maintenance. This means your network stays up and your data is safe. Broadcom also helps with AI tasks and fast data needs in big companies.

Scalability And Integration

You need a network that can grow with your company. Broadcom PHY Chips are good for big networks because they save power and keep signals clear. These chips work well with network management tools. They help you handle lots of data in data centers and AI jobs. For example, the NH-4010 switch uses Broadcom’s Comma 5 chipset. It saves power and keeps links strong. This helps lower costs and makes your system more reliable.

Broadcom gets you ready for new technology. Their newest 800G Ethernet PHY chips came out in 2025. These chips are made for huge data centers and fast computers. They use smart DSP algorithms and built-in transceivers for new Ethernet standards. You can upgrade your network without changing hardware often.

Lowest System Cost

You want to spend less money but still get good quality. Broadcom PHY Chips help you save money in many ways:

Cost Factor	Details
Minimum Order Quantity (MOQ)	From 1 piece for sampling to 50+ pieces for volume
Volume Pricing Tiers	Price breaks: $0.88 for 1-99 pcs vs. $0.68 for 100+ pcs
Country/Region of Supplier	Consider logistics, tariffs, and lead times from regions like HK or CN
Long-Term Availability	Supported long-term, not end-of-life
Integration & Support Costs	Includes PCB design, thermal management, and software licensing

Broadcom puts many optical parts and millions of transistors into one optical engine. This means you do not need extra signal parts. Their co-packaged optics use 70% less power than old transceivers. These ideas help you pay less at first and later. Broadcom makes lots of chips at once, so they are cheaper for big data centers and AI groups.

Tip: If you pick Broadcom PHY Chips, you get solutions that are reliable, can grow, and save money. Your network will be ready for now and the future.

You can trust Broadcom PHY Chips for fast and steady 10GBase-T. These chips use smart signal processing and save power. You can use them with copper or optical networks. This lets you set up your network in many ways. Many big companies pick Broadcom PHY Chips because they cost less and use less energy. They help your data move smoothly and without trouble.

Pick Broadcom PHY Chips to make your network ready for the future and handle what your business needs.
