The BC557 transistor is a small signal PNP device widely used in electronic circuits for its reliability and versatility. This bipolar junction transistor (BJT) operates effectively in amplification and switching applications, making it a vital component in low-power designs. Its structure allows current to flow when the base is negatively biased relative to the emitter, a characteristic that sets it apart from NPN transistors.
Engineers favor the BC557 transistor due to its robust specifications. It supports a maximum collector-emitter voltage of 45V and a continuous collector current of up to 200mA. Additionally, it features a DC current gain ranging from 110 to 800, ensuring efficient signal processing. These properties make the BC557 suitable for audio circuits, LED drivers, and other practical applications. Its role in simplifying circuit design highlights its importance in the electronics industry.
Key Takeaways
-
The BC557 is a dependable PNP transistor used for small tasks like boosting sound and powering LEDs.
-
It has a strong ability to increase current, ranging from 110 to 800, which helps make signals stronger even with little input.
-
Setting the right bias is important for good performance; it keeps the transistor working correctly and prevents signal problems.
-
Knowing the pin layout is key for proper use; the collector, base, and emitter must be connected the right way.
-
Always check the datasheet for details and similar transistors to make sure they work well in your circuits.
BC557 Transistor Datasheet
Key Specifications
The BC557 is a PNP bipolar junction transistor (BJT) designed for low-power applications. Its datasheet highlights several key specifications that make it a reliable choice for amplification and switching tasks. Below is a summary of its primary features:
| Feature/Specification | Details |
|---|---|
| Type | PNP-type Bipolar Junction Transistor |
| Maximum DC Current Gain (hFE) | 300 |
| Collector Current (Continuous) | 100 mA |
| Emitter-to-Base Voltage (VEB) | 6 V |
| Base Current (Maximum) | 5 mA |
| Package | TO-92 |
| Collector Dissipation | 500 mW |
| Collector-Emitter Voltage (VCE) | -45 V |
| Operating Temperature Range | -65°C to +150°C |
These specifications ensure the BC557 transistor performs efficiently in various electronic circuits. Its compact TO-92 package makes it suitable for space-constrained designs.
Electrical Characteristics
The electrical characteristics of the BC557 transistor determine its performance under different operating conditions. These parameters are crucial for engineers when designing circuits. The table below outlines the key electrical characteristics:
| Characteristic | Value |
|---|---|
| Maximum DC Current Gain (hFE) | 300 |
| Collector Current (Continuous) | 100 mA |
| Collector Dissipation | 500 mW |
| Collector-Emitter Voltage (VCE) | -45 V |
| Collector-Base Voltage (VCB) | -50 V |
| Base-Emitter Voltage (VBE) | -5 V |
The BC557's maximum DC current gain of 300 ensures effective signal amplification. Its ability to handle a continuous collector current of 100 mA makes it suitable for low-power applications. The negative voltage ratings indicate its PNP nature, where the current flows from the emitter to the collector.
Maximum Ratings
The maximum ratings of the BC557 transistor define the limits within which it can operate safely. Exceeding these ratings may lead to device failure or reduced reliability. The table below summarizes the maximum ratings:
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Collector-Emitter Voltage | Vce | 45 | V |
| Collector-Base Voltage | Vcb | 50 | V |
| Emitter-Base Voltage | Veb | 5 | V |
| Collector Current | Ic | 100 | mA |
| Power Dissipation | Ptot | 500 | mW |
| Peak Collector Current | Icm | 200 | mA |
| Junction Temperature | Tstg | 150 | °C |
-
Operating the BC557 within these limits ensures optimal performance and longevity.
-
Prolonged exposure to maximum ratings can degrade the transistor's reliability.
-
Engineers must consider these ratings during circuit design to prevent damage.
The BC557's robust maximum ratings make it a dependable choice for various applications, including audio circuits and LED drivers.
Gain and Frequency Response
The BC557 transistor exhibits impressive gain and frequency response characteristics, making it a preferred choice for low-power applications. Its high gain capability allows it to amplify weak signals effectively, which is essential in audio circuits and other signal-processing tasks.
Gain (hFE)
The gain of the BC557 transistor, also known as DC current gain (hFE), typically ranges from 110 to 800. This parameter indicates how much the transistor can amplify the input signal. For instance, if the base current is 1 mA and the gain is 300, the collector current will reach 300 mA. This high gain capability ensures efficient signal amplification, even with minimal input current. The gain value depends on the operating conditions, such as temperature and the applied voltage.
Frequency Response
The BC557 transistor operates efficiently across a wide range of frequencies. Its transition frequency (fT) is approximately 150 MHz, which means it can handle signals with frequencies up to this limit. This feature makes it suitable for high-frequency applications, including radio frequency (RF) circuits and oscillators. However, the actual performance may vary based on the circuit design and the load connected to the transistor.
Practical Considerations
When designing circuits with the BC557, engineers must consider the relationship between gain and frequency. At higher frequencies, the gain tends to decrease due to internal capacitance and other factors. To optimize performance, they often use bypass capacitors and proper biasing techniques. Additionally, ensuring that the current flowing through the transistor remains within its specified limits is crucial for maintaining stability and preventing distortion.
Tip: Always refer to the transistor's datasheet for detailed gain and frequency response graphs. These graphs provide valuable insights into how the transistor behaves under different conditions.
The BC557's ability to deliver consistent gain and handle a broad frequency range makes it a versatile component in electronic circuits. Its performance in amplification and switching applications highlights its importance in modern electronics.
BC557 Transistor Pinout
Understanding the pinout of the BC557 transistor is essential for its correct integration into electronic circuits. The transistor features three pins, each serving a distinct purpose. Proper identification and usage of these pins ensure optimal performance and prevent circuit errors.
Pin Identification

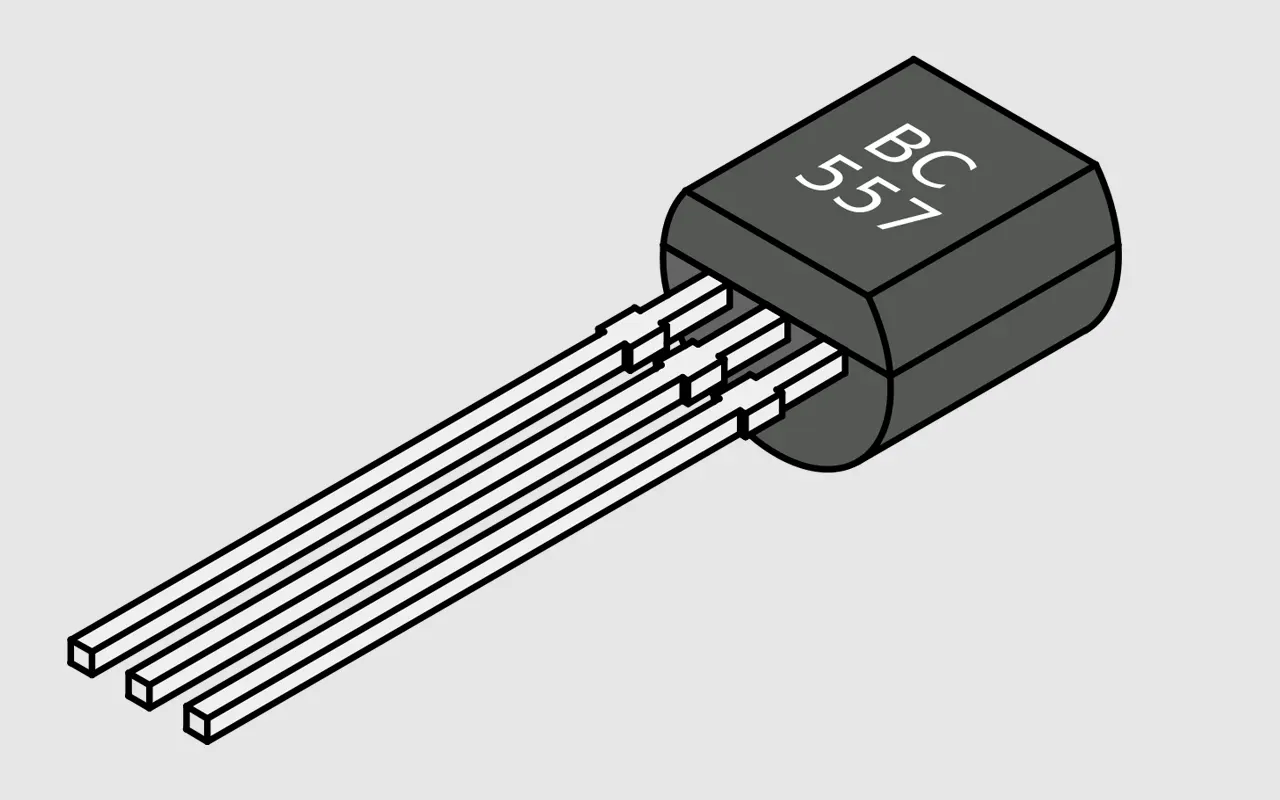

The BC557 transistor follows the standard TO-92 package format, which is widely used in small signal transistors. Its pin configuration can be verified and compared against standardized layouts. When viewed from the front, the pins are arranged as follows:
-
Collector: The leftmost pin.
-
Base: The middle pin.
-
Emitter: The rightmost pin.
Variants of the BC557 may have different pin arrangements. Checking the manufacturer's datasheet ensures accurate identification. Engineers often use a multimeter to confirm pin functionality before installation.
Functions of Each Pin
Each pin of the BC557 transistor plays a critical role in its operation. The table below summarizes their functions:
| Pin Number | Function |
|---|---|
| 1 | Collector (Current flows in) |
| 2 | Base (Controls the biasing) |
| 3 | Emitter (Current drains out) |
The collector receives current from the circuit, while the emitter releases it. The base acts as the control terminal, regulating the transistor's operation.
Tips for Pin Identification
Identifying the pins of the BC557 transistor becomes straightforward with a few practical tips:
-
Always refer to the datasheet for the specific variant being used.
-
Use a multimeter to test the pins if unsure.
-
Observe the physical orientation of the TO-92 package to match the standard pinout.
Tip: Label the pins on the circuit diagram to avoid confusion during assembly.
Correct pin identification ensures the BC557 transistor operates efficiently in amplification and switching applications.
Equivalent Transistors for BC557
List of Equivalent Transistors
The BC557 transistor has several equivalents that can replace it in various circuits. These alternatives share similar electrical characteristics, making them suitable for common applications like amplification and switching. Below is a list of equivalent transistors:
-
BC157
-
2N3906
-
BC558
-
2SA1943
-
S8550
-
BD140
-
TIP42
-
TIP127
-
BC547
Each of these transistors offers unique advantages depending on the circuit requirements. For instance, the BC558 is a close match to the BC557 and is often used in similar low-power applications. The 2N3906, on the other hand, is a versatile PNP transistor that works well in switching circuits.
Complementary Transistor
The complementary transistor to the BC557 is the BC547. While the BC557 is a PNP transistor, the BC547 is its NPN counterpart. This complementary relationship allows engineers to use both transistors together in push-pull amplifier designs or other circuits requiring both PNP and NPN transistors. The BC547 shares similar voltage and current ratings with the BC557, ensuring compatibility in paired configurations.
When to Use Equivalents
Using equivalent transistors becomes necessary when the BC557 is unavailable or when specific circuit requirements demand a slightly different specification. Engineers often select equivalents based on factors like voltage ratings, current capacity, and gain. For example, the TIP127 is a suitable choice for higher power applications, while the BC558 is ideal for low-power circuits.
Tip: Always verify the datasheet of the equivalent transistor to ensure it meets the circuit's requirements. Substituting without proper evaluation may lead to performance issues or component failure.
Equivalents also prove useful in prototyping, where flexibility in component selection can save time and resources. By understanding the characteristics of each alternative, designers can make informed decisions to optimize their circuits.
Applications of the BC557 Transistor
The BC557 transistor plays a vital role in various electronic applications due to its reliable performance and versatility. Its ability to handle low-power signals and amplify or switch them efficiently makes it a preferred choice for engineers and hobbyists alike. Below are some of the most common applications of the BC557.
Amplification
The BC557 excels in amplification circuits, where it boosts weak signals to higher levels. Its high DC current gain, ranging from 110 to 800, ensures effective signal amplification, even with minimal input current. This makes it ideal for sensitive analog circuits, such as audio amplifiers and small-signal processing devices.
| Specification | Value |
|---|---|
| Transistor Type | PNP Bipolar Junction Transistor (BJT) |
| DC Current Gain (hFE) | Ranges from 110 to 800 |
| Maximum Collector-Emitter Voltage (Vceo) | Typically around 45V |
| Maximum Collector-Base Voltage (Vcbo) | Typically around 50V |
| Continuous Collector Current (Ic) | Typically around 100mA to 200mA |
| Power Dissipation (Pd) | Typically around 625mW |
| Operating Frequency | Suitable for low to moderate frequency applications |
The BC557 transistor is particularly effective in audio circuits. Its low-power characteristics and high gain enhance sound quality in devices like headphones and small speakers. Additionally, it operates efficiently at frequencies suitable for audio signals, ensuring minimal distortion.
-
The BC557 transistor is known for its low-power characteristics, making it ideal for audio applications.
-
It has a high DC current gain, which is crucial for amplification tasks in audio circuits.
-
The transistor operates effectively at suitable frequencies for audio signals, enhancing sound quality in devices like headphones and small speakers.
Tip: When designing amplification circuits, ensure proper biasing of the BC557 to achieve optimal performance and avoid signal distortion.
Switching
The BC557 transistor is widely used in switching applications due to its precise current control capabilities. In a switching circuit, the transistor acts as an electronic switch, turning on or off based on the input signal at its base. This functionality is essential in automation systems, relay drivers, and other control circuits.
The BC557's ability to handle a continuous collector current of up to 100mA makes it suitable for low-power applications. Its PNP nature allows it to operate effectively in circuits where the load is connected to the emitter. Engineers often use the BC557 in conjunction with its complementary NPN counterpart, the BC547, to create push-pull configurations for efficient switching.
Note: To ensure reliable switching performance, always operate the BC557 within its specified voltage and current limits.
LED Drivers
The BC557 transistor is a key component in LED driver circuits. Its PNP configuration enables it to manage higher power loads, such as LEDs, in response to lower power signals from control circuits. This capability ensures that the LED receives adequate current for proper illumination. The BC557 operates similarly in relay driver circuits, where it controls the flow of current to the load.
In LED driver designs, the BC557 provides stable operation by regulating the current flowing through the LED. This prevents overloading and extends the lifespan of the LED. Its compact TO-92 package also makes it suitable for space-constrained designs, such as decorative lighting and indicator circuits.
Tip: When using the BC557 in LED driver circuits, include a current-limiting resistor to protect both the transistor and the LED from excessive current.
The BC557's versatility in amplification, switching, and LED driver applications highlights its importance in modern electronics. Its ability to handle low-power signals and deliver reliable performance makes it a valuable component in a wide range of circuits.
Audio Circuits
The BC557 transistor plays a significant role in audio circuits, where it is used to amplify weak audio signals. Its high current gain and low noise characteristics make it an excellent choice for audio amplification tasks. Engineers often use this transistor in preamplifiers, tone control circuits, and small audio amplifiers.
In audio amplification, the BC557 boosts the input signal to drive speakers or other output devices. For example, in a preamplifier circuit, it amplifies the low-level signal from a microphone or musical instrument. This ensures the signal is strong enough for further processing or amplification by a power amplifier. The transistor's ability to handle low-power signals with minimal distortion enhances the overall sound quality.
A common application of the BC557 in audio circuits is in tone control systems. These systems adjust the bass, treble, and midrange frequencies of an audio signal. The transistor's high gain ensures precise control over these frequencies, resulting in a balanced and clear sound output. Additionally, its compact size and low power consumption make it ideal for portable audio devices.
Tip: When designing audio circuits with the BC557, use proper biasing to minimize distortion and achieve optimal performance. Adding bypass capacitors can further improve the circuit's stability.
Practical Examples
The BC557 transistor finds use in a variety of practical applications, demonstrating its versatility and reliability. Below are some examples of how this transistor is employed in real-world circuits:
-
Microphone Preamplifier
In a microphone preamplifier circuit, the BC557 amplifies the weak signal from the microphone. This amplified signal can then be fed into a mixer or recording device. The transistor's high gain ensures the output signal is clear and free from noise.Circuit Description: - Input: Microphone signal - Output: Amplified audio signal - Components: BC557, resistors, capacitors -
LED Flasher Circuit
The BC557 can be used in an LED flasher circuit, where it alternates the LED's on and off states. This application showcases the transistor's switching capabilities. The circuit is often used in decorative lighting or as an indicator. -
Small Audio Amplifier
A small audio amplifier circuit can use the BC557 to drive headphones or small speakers. The transistor amplifies the input signal to a level suitable for the output device. This application is common in portable audio players and intercom systems. -
Temperature Sensor Circuit
The BC557 can also function in a temperature sensor circuit. It acts as a switch, turning on or off based on the temperature detected by a thermistor. This application is useful in home automation systems and industrial controls.
Note: Always refer to the transistor's datasheet when designing circuits to ensure the operating conditions match the component's specifications.
These practical examples highlight the BC557's adaptability across various applications. Its role in audio circuits, switching tasks, and sensor systems underscores its importance in modern electronics.
Using the BC557 Transistor
Selecting the Right Variant
Choosing the correct BC557 variant is essential for achieving optimal circuit performance. The BC557 comes in three classifications: BC557A, BC557B, and BC557C. These variants differ in their DC current gain (hFE) ranges. For instance, BC557A offers a gain range of 110–220, while BC557C provides a higher range of 420–800. Engineers should select a variant based on the gain requirements of their circuit.
For amplification circuits, a higher gain variant like BC557C is ideal. It ensures efficient signal processing with minimal input current. On the other hand, switching circuits may perform well with BC557A or BC557B, as they require moderate gain levels. Referring to the transistor's datasheet helps in identifying the most suitable variant for a specific design.
Biasing Techniques
Proper biasing is crucial for the BC557 transistor to function effectively. Biasing establishes the operating point of the transistor, ensuring it remains in the desired region (cutoff, active, or saturation) during operation. The most common biasing methods include fixed bias, voltage-divider bias, and emitter-stabilized bias.
In a voltage-divider bias configuration, resistors form a divider network to provide a stable base voltage. This method is widely used due to its reliability and simplicity. For example, in an amplifier design, voltage-divider bias ensures the transistor operates in the active region, allowing smooth signal amplification.
Tip: Always calculate the resistor values carefully to maintain the desired base current and avoid overdriving the transistor.
Thermal Management
Thermal management is vital for maintaining the BC557 transistor's reliability and longevity. Excessive heat can degrade its performance or cause permanent damage. To prevent thermal issues, engineers must consider the following strategies:
-
Operate the transistor within safe voltage limits, keeping the collector-emitter voltage below -45V DC.
-
Ensure the load current does not exceed 100 mA to avoid overheating.
-
Maintain the operating temperature between -65°C and +150°C to prevent thermal damage.
-
Use heatsinks or proper ventilation to dissipate heat effectively.
In high-power designs, incorporating these techniques ensures stable operation and prevents thermal stress. For instance, adding a small heatsink to the BC557 in an LED driver circuit can significantly improve heat dissipation. Proper thermal management not only enhances performance but also extends the lifespan of the transistor.
Avoiding Mistakes
Mistakes in using the BC557 transistor can lead to circuit failure or reduced performance. Understanding these errors and how to avoid them ensures reliable operation and extends the transistor's lifespan.
1. Incorrect Pin Connections
One of the most common mistakes involves misidentifying the pins of the BC557. Connecting the collector, base, or emitter to the wrong points in the circuit can prevent the transistor from functioning.
Tip: Always refer to the datasheet for the correct pinout. Use a multimeter to verify the pins before installation.
2. Exceeding Maximum Ratings
Operating the BC557 beyond its voltage, current, or power limits can cause permanent damage. For example, applying a collector-emitter voltage higher than -45V or a collector current above 100mA can lead to overheating or failure.
| Parameter | Maximum Value |
|---|---|
| Collector-Emitter Voltage (Vce) | -45V |
| Collector Current (Ic) | 100mA |
| Power Dissipation (Ptot) | 500mW |
Note: Always design circuits to operate well within these limits. Adding resistors or current-limiting components can protect the transistor.
3. Improper Biasing
Incorrect biasing can push the transistor into the wrong operating region, causing distortion or inefficiency. For instance, insufficient base current may prevent the transistor from switching fully.
Tip: Calculate the required base resistor value using the formula:
[ R_b = \frac{V_{in} - V_{BE}}{I_B} ]
where ( V_{in} ) is the input voltage, ( V_{BE} ) is the base-emitter voltage, and ( I_B ) is the base current.
4. Ignoring Thermal Management
Overheating can degrade the BC557's performance. This often occurs when the transistor operates near its maximum power dissipation without proper heat dissipation.
Advice: Use heatsinks or ensure adequate ventilation in high-power circuits. Avoid placing the transistor near heat-sensitive components.
By addressing these common mistakes, engineers and hobbyists can ensure the BC557 operates efficiently and reliably in their circuits.
Troubleshooting the BC557 Transistor
Testing the BC557
Testing the BC557 ensures it functions correctly before integrating it into a circuit. A multimeter is the most common tool for this purpose. To test, set the multimeter to the diode mode. Identify the pins of the transistor using its datasheet. Place the positive probe on the emitter and the negative probe on the base. A reading between 0.6V and 0.7V indicates a healthy base-emitter junction. Reverse the probes to test the base-collector junction. A similar reading confirms proper functionality.
To check for shorts, place the probes across the collector and emitter. No reading should appear in either direction. If the multimeter shows continuity, the transistor is damaged. This simple procedure helps verify the BC557's condition and prevents circuit failures.
Tip: Always disconnect the transistor from the circuit before testing to avoid inaccurate readings.
Common Problems
Several issues can arise when using the BC557. Overheating is a frequent problem caused by excessive current or inadequate thermal management. Operating the transistor beyond its maximum ratings often leads to permanent damage. Incorrect pin connections also prevent the BC557 from functioning as intended.
Another common issue involves improper biasing. Without correct biasing, the transistor may not switch or amplify signals effectively. Engineers sometimes encounter noise or distortion in audio circuits due to poor grounding or insufficient filtering.
To address these problems, ensure the BC557 operates within its specified limits. Use proper heat dissipation techniques and verify pin connections before powering the circuit. Adding bypass capacitors can reduce noise and improve stability.
BC547 vs. BC557
The BC547 and BC557 are complementary transistors with similar specifications but opposite polarities. The BC547 is an NPN transistor, while the BC557 is a PNP transistor. This difference determines their roles in a circuit. The BC547 allows current to flow when the base is positively biased, whereas the BC557 conducts when the base is negatively biased.
Both transistors share comparable voltage and current ratings, making them suitable for paired configurations like push-pull amplifiers. However, the BC557 is better suited for circuits requiring PNP transistors, such as low-side switching applications. Understanding their differences helps engineers select the right component for their designs.
Note: Always refer to the datasheet when substituting one transistor for the other to ensure compatibility.
The BC557 transistor stands out as a reliable and versatile component in electronics. Its PNP configuration, high gain range, and low noise performance make it ideal for applications like audio amplification, motor control, and LED drivers. The transistor handles loads up to 100 mA and dissipates power efficiently, ensuring consistent operation across various temperatures. Its adaptability to both simple and complex circuit designs further enhances its appeal to engineers and hobbyists.
| Feature/Application | Description |
|---|---|
| Type | PNP bipolar junction transistor |
| Gain (hFE) | Ranges from 125 to 800, enhancing small signals effectively |
| Power Dissipation | Can dissipate up to 500 mW |
| Load Handling | Manages loads up to 100 mA |
| Applications | Audio amplification, motor control, robotics, instrumentation, LED drivers |
| Noise Performance | Low noise characteristic for clear signal processing |
| Operating Temperature | Consistent operation across various temperatures |
| Circuit Design | Suitable for both simple and complex circuit designs |
| Key Role in Audio Systems | Enhances signal strength and quality in audio applications |
| Motor Control | Manages power in small motors for reliable operation |
Experimenting with the BC557 transistor in projects allows learners to explore its capabilities and understand its role in modern electronics. Its versatility ensures it remains a valuable tool for circuit design, whether for educational purposes or professional applications.
Tip: Incorporating the BC557 into practical projects can deepen understanding of its functionality and inspire innovative designs.
FAQ
What is the primary function of the BC557 transistor?
The BC557 transistor primarily amplifies weak signals and switches electronic circuits. Its PNP configuration allows current to flow when the base is negatively biased. This makes it ideal for low-power applications like audio amplification and LED drivers.
How can you test a BC557 transistor with a multimeter?
Set the multimeter to diode mode. Place the positive probe on the emitter and the negative probe on the base. A reading of 0.6V–0.7V indicates a healthy base-emitter junction. Reverse the probes to test the base-collector junction.
Can the BC557 transistor handle high-power applications?
No, the BC557 transistor is designed for low-power applications. It supports a maximum collector current of 100mA and a power dissipation of 500mW. For high-power needs, consider using transistors like TIP42 or BD140.
What is the complementary transistor for the BC557?
The complementary transistor for the BC557 is the BC547. While the BC557 is a PNP transistor, the BC547 is its NPN counterpart. Both are often used together in push-pull amplifier designs.
Why is proper biasing important for the BC557 transistor?
Proper biasing ensures the BC557 transistor operates in the desired region (cutoff, active, or saturation). This prevents distortion in amplification circuits and ensures reliable switching performance. Incorrect biasing may lead to inefficient operation or circuit failure.
