A Comprehensive Guide to FPGA Development Boards

When you use an FPGA development board, you work with hardware. This hardware lets you build and test digital circuits. An FPGA has logic blocks and programmable connections. You can change the board’s design by reprogramming it. This helps save money and makes testing faster. FPGA development boards help you make and improve circuits for many uses. These uses include rfsoc and mpsoc dev boards, zynq-7000, versal dev boards, and pure fpga dev boards. Many industries use fpga dev boards for business and research projects. Some boards have fmc connectors, fmc+ connectors, or are made for video. You will see fpga dev boards supported by vivado’s free edition. Zynq-7000 dev boards and rfsoc dev boards also make work easier. The FPGA market keeps growing. This shows more people want fpga development boards.

Key Takeaways

• FPGA development boards help you make and test digital circuits. They are very important for learning and trying out ideas. - Pick the right FPGA board by thinking about your project, money, and what features you want. This helps you do well. - Use help from online groups and the company that made your board. This will help you learn more and fix problems. - Begin with simple boards to practice using your hands. Move to better boards when you get better at using them. - Programming tools like Vivado and Quartus are needed to put your designs on FPGA boards. Make sure these tools are always up to date.

Key Features

FPGA Chip

The FPGA chip is the main part of every fpga development board. You use it to make and test digital circuits. When picking a board, look at the FPGA model. Some chips have more logic blocks for bigger projects. Other chips are better for simple designs or learning. Make sure the chip works with your development tools. Many boards have switches, buttons, and displays for testing and debugging.

Tip: Boards with lots of community help are easier to learn and fix.

There are two main types of boards: pure fpga dev boards and SoC/hybrid boards. Pure boards focus on hardware logic you can change. SoC or hybrid boards have a processor and FPGA fabric together. SoC boards often use less power and are good for real-time control or automation.

Feature/Aspect	Pure FPGA Boards	SoC/Hybrid FPGA Boards
Architecture	Configurable hardware logic	Processor + FPGA fabric
Use Cases	General-purpose, flexible design	Industrial, real-time, automation

I/O Ports

I/O ports let your fpga development board talk to other devices. You use these ports to send and get data. Boards may have connectors like Ethernet, USB, HDMI, or PCIe. The right I/O setup helps you use your board for many things, like robotics or digital signal processing.

• I/O ports make your board work with different devices.

• You can do real-time jobs in cars or small computers.

Memory

Memory is important for how your fpga dev boards handle data. Boards have different types of memory. Each type changes speed and storage.

Memory Type	Characteristics	Performance Impact
SRAM	Fast, low latency, small capacity	Great for quick tasks, but limited storage
DRAM	High capacity, needs refreshing	Good for big data, slower for random access
DDR SDRAM	Balanced speed and cost, common on boards	Handles large data, higher latency than on-chip
High Bandwidth Memory (HBM)	Very fast, for data-heavy tasks	Massive throughput, complex to use

You may also see on-chip memory for small, fast storage and outside memory for bigger needs.

Power Supply

Your fpga dev boards need steady power to work well. Boards often need several low voltage rails. Common input voltages are 5 V, 12 V, or 24 V. The FPGA chip’s core voltage is usually under 1 V and must be exact. Some boards need careful power steps to stay safe.

• Always check voltage and current before turning on your board.

Connectivity

Connectivity options help your fpga development board do many jobs. Boards may support Ethernet, Wi-Fi, or fiber optic links. These features let you use your board for fast networking or edge computing.

Connectivity Option	Use Case Description
Base Stations	Real-time signal processing for 5G
Switches and Routers	High data throughput, low latency
Digital Signal Processing (DSP)	Signal filtering and modulation
IoT Gateways	Data routing and security for IoT devices
Edge Processing	Real-time data at the network edge

You can use these features for testing, research, or making your own project.

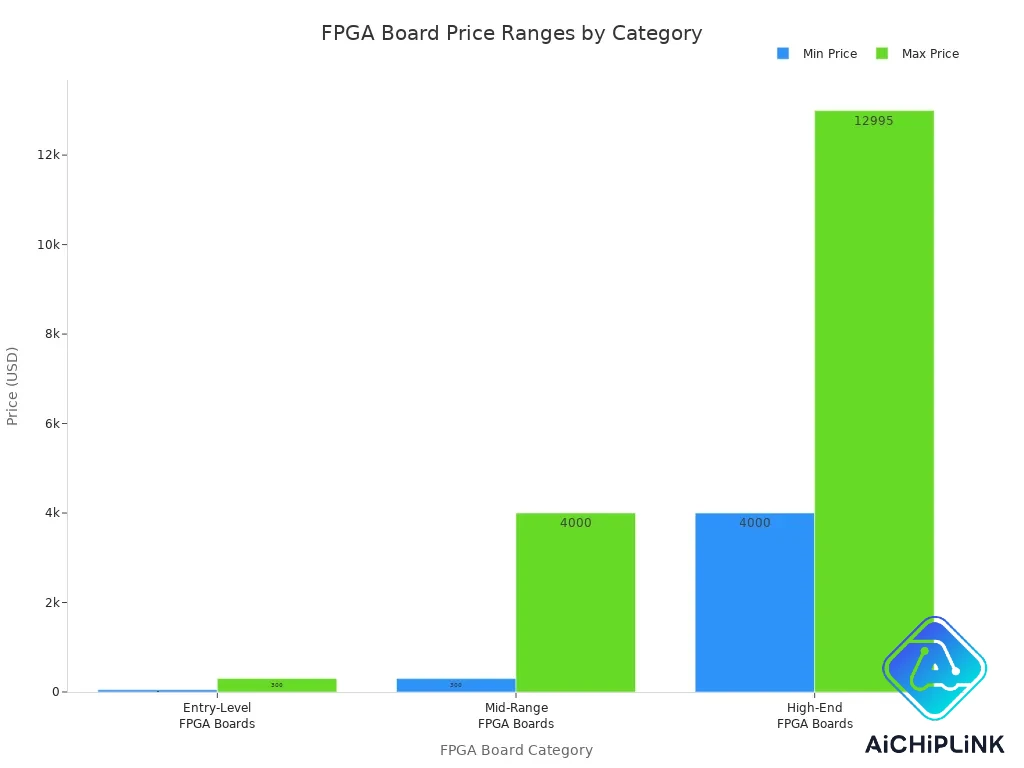

Types of FPGA Development Boards

There are many kinds of fpga development boards. Each kind is good for different jobs and budgets. Some boards are for beginners. Others are for harder tasks or special projects.

Entry-Level

Entry-level fpga dev boards help you learn about digital logic. You can use them in school or for easy projects. Many students and hobbyists start with these boards.

• These boards have simple I/O ports and small memory.

• You can do easy experiments and see how fpga chips work.

Board Example	Price Range	Typical Use Case
Digilent Basys 3	$149	Education, beginner projects
Xilinx Nexys A7	~$265	Learning, prototyping
Intel DE10-Lite	~$175	DIY, robotics

Tip: Entry-level boards are cheaper and great for learning.

Mid-Range

Mid-range fpga dev boards have more power and features. You can use them for research or bigger projects.

• These boards have better I/O, more memory, and faster chips.

• You can try larger designs and do harder tasks.

Board Example	Price Range	Typical Use Case
Xilinx KCU116	~$3,495	Research, signal processing
Intel DE10-Pro	~$2,995	Data processing, robotics
Xilinx ZCU104	~$1,795	AI, image/video processing

Advanced

Advanced fpga dev boards are for big and important jobs. You can use them in telecom, space, or medical fields.

• These boards have the best chips, lots of memory, and many I/O choices.

• You can build and test very complex systems.

Board Example	Price Range	Typical Use Case
Xilinx VCU128	~$12,995	High-performance computing
Intel Stratix 10 GX	~$9,995	AI acceleration, data centers
Xilinx Alveo U200	~$8,995	Cloud, big data

Application-Specific

Some fpga dev boards are made for special jobs. You can use them for robotics, audio, or video work.

• These boards have custom I/O and software for your needs.

• You can make and test your ideas faster.

User Group	Use Case Description
Students & Educators	Learning digital logic, computer architecture, and hardware design.
Hobbyists	DIY projects like retro gaming, robotics, or audio processing.
Engineers & Developers	Prototyping custom hardware before mass production.
Researchers	Exploring high-performance computing, AI acceleration, and data processing.
Industry	Applications in telecom, aerospace, automotive, and medical devices.

The price depends on the fpga chip, I/O, memory, tools, and brand. You can find fpga development boards from $50 to over $12,000. Pick a board that fits your project and your budget.

Choosing a Board

Project Needs

Think about what you want your project to do. Each project needs different things. Some projects need to handle data very fast. Others need lots of ways to connect to other devices. Pick an fpga development board that matches your project’s needs. Check how big the FPGA package is. This will change how you build your circuit and how much space you need. If you want to finish fast, pick a board that helps you work quickly. Some boards let you change your design later. This is helpful if you want to update your project in the future.

Here is a table to help you compare important factors:

Key Considerations	Description
FPGA Package	Pick the right size for your project. This affects how you make your board and how it is built.
Time to Market	Think about how fast you can finish your project.
Customization Options	See if you can change the board later for new needs.
Documentation	Make sure there are guides to help you build and fix things.
Support	Find out if you can get help from the company.
Peripherals	Check if you need to add extra parts to your board.
Interfaces	Make sure the board works with the devices you want to use.
Power Usage	Look at how much power the board uses for your project.
Cost	Make sure the price fits your budget and project needs.

Tip: Write down what your project needs before picking a board. This will help you avoid mistakes and save time.

Budget

Set your budget before you buy an fpga development board. Prices can be very different. Some boards cost less than $100. Others can cost thousands. If you are new, start with a board that costs $100 to $200. This price gives you good features for learning and testing. Cheaper boards are out there, but they might not have enough memory or I/O for your project.

• Most people should spend $100 to $300 on a board.

• Beginners should look for boards that cost $100 to $200.

• Boards under $50 may not have all the features you need.

Note: Spending more money does not always mean better results. Make sure your budget matches your project needs.

Vendor Support

Good vendor support makes your work easier. Companies like AMD/Xilinx, Intel, and Microchip give strong help for their fpga dev boards. You get guides and example designs to help you learn. These tools help you solve problems faster. Many boards come with kits that have hardware and design tools. You can use these to start your project quickly. Some vendors offer boards that give you good value for your money.

• You get guides and example designs to help you.

• Built-in support for extra parts makes things simple.

• Kits help you start your project fast.

• Vendors help you save money and make building easier.

Tip: Pick a vendor with good help and clear guides. This will help you finish your project faster and with less trouble.

Community

The online community is very helpful for fpga dev board users. You can find forums, guides, and training online. These help you learn and fix problems. Many people share their designs and tips. You can ask questions and get answers from others. Intel has design tools and training programs. You can join forums and find guides in the Intel Developer Zone.

Resource Type	Description
Design Tools	Tools and kits help you design and test Intel® FPGAs.
Technical Training	Training helps you learn how to use Intel® FPGAs.
Community Access	Forums and guides are in the Intel® Developer Zone.

💡 If you get stuck, look for help in forums. Many answers are already there.

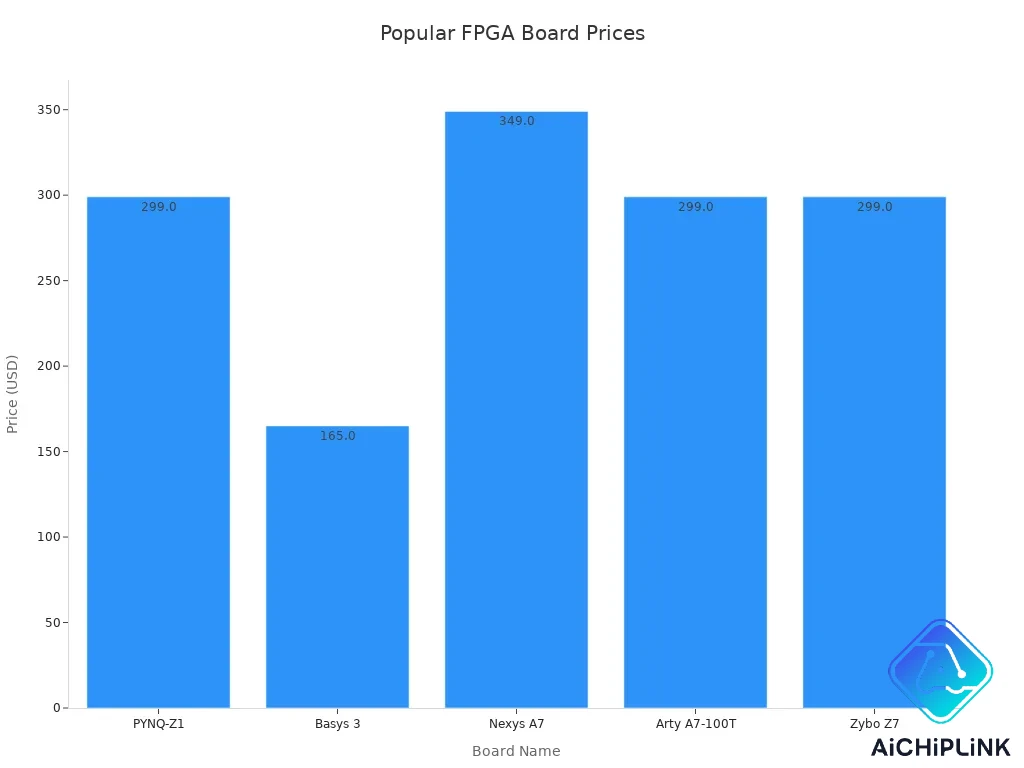

Popular FPGA Development Boards

Xilinx Boards

Xilinx fpga development boards are used in many schools and labs. These boards give you lots of power and are flexible for projects. The Zynq UltraScale+ MPSoC is special because it has both programmable logic and fast processors. You can use it for AI, machine learning, and 5G. Xilinx boards can be as fast as top GPUs. This helps with image and language processing. Xilinx boards also compile designs quickly and use less power than some other brands. If you are just starting, you can try Basys 3 or Nexys A7. Vivado software makes it easy to learn and build fpga dev boards.

• Xilinx boards are good for both new and skilled users.

• You can use them for research, robotics, and hard computing jobs.

Intel Boards

Intel fpga dev boards help you get both speed and power. You can choose from Stratix, Arria, or Cyclone models. These boards are good for big data and hard tasks. Intel boards are a smart choice for many projects. You will see them in data centers and signal processing. They also work in embedded systems. Intel boards have many interfaces, so you can connect to other devices. Intel’s design tools help you start your project. You can also get help from the Intel community.

Board Name	Description	Price
Stratix	High-performance for data-heavy jobs	Varies
Arria	Good balance of speed and power	Varies
Cyclone	Cheaper for small systems	Varies

Digilent Boards

Digilent fpga dev boards are easy for learning. You can start with Basys 3, which is great for students. The Arty S7 gives you guides and works with AMD Vivado or Vitis. For bigger projects, try Arty A7-100T or Zybo Z7. These boards help you learn digital logic and hardware. Digilent boards are used in schools and by professionals.

Board Name	Target Market	Description
Basys 3	Educational	Good for students and beginners
Arty S7	Educational	Made for easy learning
Arty A7-100T	Professional	Good for harder projects
Zybo Z7	Professional	ARM/FPGA SoC for tough jobs

Other Brands

You can look at other brands for special needs. Achronix has Speedster7t boards with fast memory and strong PCIe support. These boards are good for AI and high-speed computing. Lattice Semiconductor makes CrossLink and MachXO boards for low-power and small systems. You can use these boards for energy-saving and cheap designs.

Brand	Standout Products	Key Features
Achronix Semiconductor	Speedster7t series	2D Network-on-Chip, Fast Memory, Advanced PCIe and Ethernet Support
Lattice Semiconductor	CrossLink, ECP, MachXO	Low-power, energy-saving, good for small systems

Tip: Pick your fpga development board based on what your project needs and how much you want to spend. Each brand has different strengths for your work.

Getting Started

Setup

You can begin using fpga development boards by following easy steps. First, connect UART0 RX and TX pins with JP1 and JP2. Then, connect UART1 RX and TX pins using JP3 and JP4. Set the JTAG TAP select straps with JP11 and JP12. Put the blue socket-to-socket jumpers on HD for HyperDebug. Connect the SPI Device by linking J23 to J25. Join JTAG by connecting J12 to J13.
After you finish setting up the hardware, run sudo dmesg -Hw to watch the output. Set up your board with ./bazelisk.sh run //sw/host/opentitantool -- --interface=${BOARD} fpga set-pll. Test your setup by running ./bazelisk.sh test --test_output=streamed //sw/device/tests:uart_smoketest_fpga_${BOARD}_rom_with_fake_keys.
If you need to reset your board, use USB_RST on SW5 for CW310 or Control Power on SW7 for CW340. Press the RESET button on HyperDebug if you see any errors.

Programming Tools

You need special tools to work with fpga dev boards. Many boards use Vivado, Quartus, or Vitis for design and programming. These tools help you write code, test your circuit, and put your design on the board. You can use VHDL or Verilog for most projects. Some boards have their own software, so check the guides before you start.

Tip: Always update your programming tools to the newest version. This helps you avoid problems and makes things easier.

Example Projects

You can learn by trying simple projects. These projects help you practice and get better at using fpga dev boards. Here are some ideas:

Project Name	Description	Link
Traffic Light Controller	VHDL code for a traffic light controller	Traffic Light Controller
Debouncing Buttons	VHDL code for debouncing buttons	Debouncing Buttons
PWM Generator	Verilog code for a PWM generator	PWM Generator
2-bit Comparator	VHDL code for a simple 2-bit comparator	2-bit Comparator
Digital Clock	VHDL code for a digital clock	Digital Clock

Pick a project that fits your skill level. Each project helps you learn how fpga development boards work.

Troubleshooting

You might have problems while working. Here are some common problems and ways to fix them:

Problem	Solution
FMC PWR GOOD LED not lighting up	Update EEPROM or set VADJ voltage to 1.2VDC or 1.5VDC.
Fail to initiate EPCS or flash programming	Check JTAG pin connections and make sure power is steady.
Quartus programmer not working	Check the power supply for the programming cable.

If you need more help, go to forums or community sites. Many people share answers and tips for fpga dev boards.

💡 You can fix most problems by checking connections and reading the board’s guides.

When picking fpga development boards, think about your skills first. Decide what you want to make. Check how much money you can spend. Boards like Xilinx Spartan or Intel Cyclone are easy to use. You can join forums for help and find tutorials online. Doing hands-on projects helps you learn more. You will get better at circuit design by practicing. The table below shows how working with boards helps you learn electronics and embedded systems.

Key Findings	Description
Practical Skills	You get real practice with hardware and software tools.
Circuit Design	You learn how to make and test digital circuits.
Project Foundation	You build a base for bigger projects later.

🛠️ Begin with simple boards and ask the community for help when you need it.
