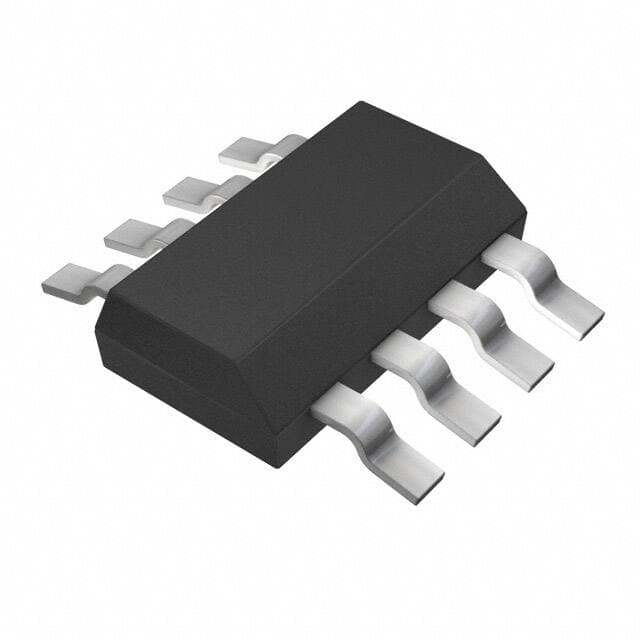

DIODES ZMC05TC

Manufacturer No:

ZMC05TC

Manufacturer:

DIODES

Package:

8-SMD, Gull Wing

Description:

Magnetoresistive, Open Loop Sensor 1-Channel Bidirectional -25°C~125°C 12V 100kHz 5A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZMC05TC information

DIODES ZMC05TC technical specifications, attributes, parameters and parts with similar specifications to DIODES ZMC05TC.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-SMD, Gull Wing

Operating Temperature
-25°C~125°C

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Terminal Finish
Matte Tin (Sn)

Voltage - Supply
12V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Reach Compliance Code
unknown

Frequency
100kHz

Time@Peak Reflow Temperature-Max (s)
40

Output
Ratiometric, Voltage

Pin Count
8

JESD-30 Code
R-PDSO-G8

Qualification Status
Not Qualified

Number of Channels
1

Polarization
Bidirectional

Sensor Type
Magnetoresistive, Open Loop

For Measuring
AC/DC

Current - Sensing
5A

Length
6.5mm

Width
3.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for DIODES ZMC05TC.

ZMC05TC Overview

The current sensors are put into 8-SMD, Gull Wing packages for safety protection. These current sensors are packaged in the Tape & Reel (TR) to protect the devices from damage. The current sensors have 8 terminations. These current sensors can supply a voltage of 12V while working. This electronic part has 8 pins.

ZMC05TC Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -25°C~125°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Magnetoresistive, Open Loop
Supply Voltage: 12V
Frequency: 100kHz
Sensing Current: 5A
8-SMD, Gull Wing Package

ZMC05TC Applications

There are a lot of Diodes Incorporated
ZMC05TC Current Sensors applications.

Motor and load control
Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
