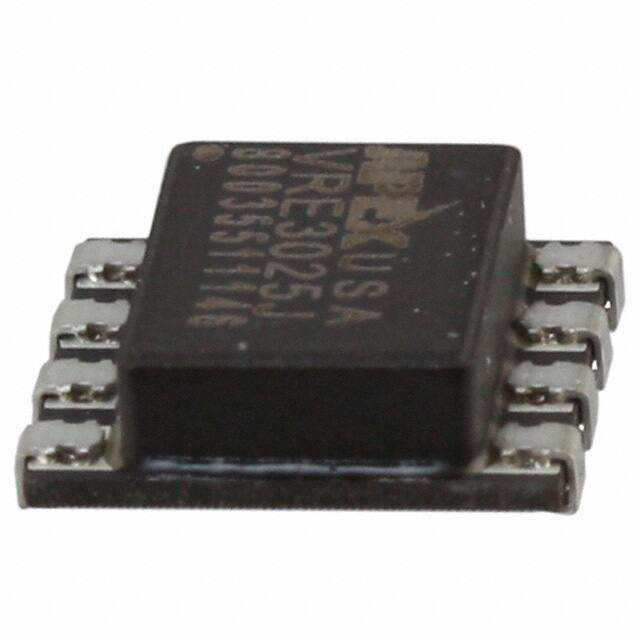

APEX VRE3025JS

Manufacturer No:

VRE3025JS

Manufacturer:

APEX

Package:

8-SMD, Flat Lead

Description:

-40°C~85°C TA Fixed 2.54mm PMIC VRE3025 15V 8-SMD, Flat Lead

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VRE3025JS information

APEX VRE3025JS technical specifications, attributes, parameters and parts with similar specifications to APEX VRE3025JS.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-SMD, Flat Lead

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Published
2012

Tolerance
±0.01%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Temperature Coefficient
0.6ppm/°C

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
S-PDSO-N8

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
2.5V

Output Type
Fixed

Supply Voltage-Max (Vsup)
36V

Supply Voltage-Min (Vsup)
8V

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
4mA

Voltage - Input
8V~36V

Current - Output
15mA

Reference Type
Series

Min Output Voltage
2.5V

Temp Coef of Voltage-Max
0.6 ppm/°C

Noise - 0.1Hz to 10Hz
1.5?Vp-p

Noise - 10Hz to 10kHz
3?Vrms

Length
10.16mm

Height Seated (Max)
3.58mm

Width
10.16mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX VRE3025JS.

Datasheets:

apexmicrotechnology-vre3025js-datasheets-2898.pdf

VRE3025JS Overview

A handy package called 8-SMD, Flat Lead is used.It is used as a voltage reference and is controlled by Series.The handy Tube variable is used in this program.The 8 terminations have a variety of functions.A precise voltage reference must have a tolerance of ±0.01%.The reference voltage is coupled to an analog IC THREE TERMINAL VOLTAGE REFERENCE.On the basis of the test statistics, 2.5V voltage is output.The output of 1 is sufficient.Input is taken from a Fixed form.8 pins are included in the voltage reference ic.Temperatures should not rise above NOT SPECIFIED during reflow soldering.For PCB designs that require high precision, Surface Mount is available.Working within -40°C~85°C TA is my area of expertise.By searching "VRE3025, you can find more relevant parts.15mA input applications can use the reference voltage.For Surface Mount applications, the reference voltage is appropriate.Its lowest voltage output is 2.5V.There is a requirement for a 15V supply voltage.Supplying it with 8V volts is the minimum voltage required.A 8V~36V voltage input is common with the voltage reference ic.There is 4mA current supplied to it.

VRE3025JS Features

±0.01% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: NOT SPECIFIED

VRE3025JS Applications

There are a lot of Apex Microtechnology
VRE3025JS Voltage Reference applications.

Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
