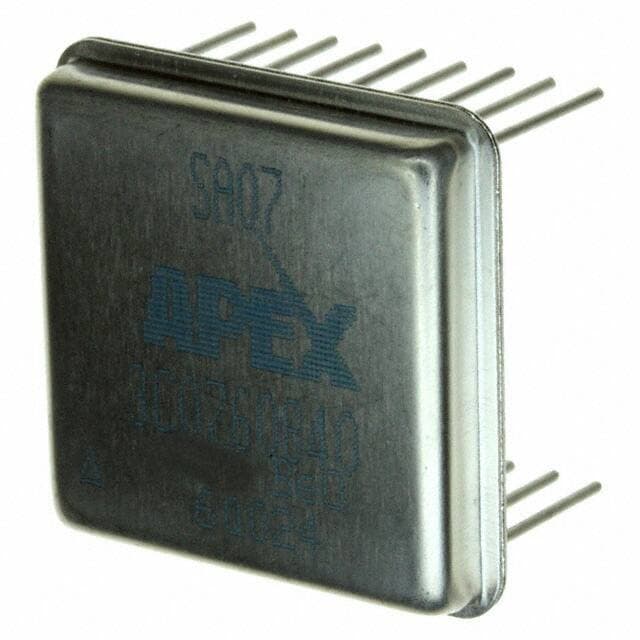

APEX SA07

Manufacturer No:

SA07

Manufacturer:

APEX

Package:

18-DIP Module

Description:

Tube 18-DIP Module PWM 10V~16V Through Hole -55°C~150°C TJ DC Motors, General Purpose Half Bridge (2) Inductive 5V~40V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SA07 information

APEX SA07 technical specifications, attributes, parameters and parts with similar specifications to APEX SA07.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
18-DIP Module

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Series
Apex Precision Power®

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
18

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Applications
DC Motors, General Purpose

Technology
Power MOSFET

Voltage - Supply
10V~16V

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
12V

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
SA*

Pin Count
18

Number of Outputs
1

Interface
PWM

Analog IC - Other Type
BRUSH DC MOTOR CONTROLLER

Output Configuration
Half Bridge (2)

Output Current
5A

Voltage - Load
5V~40V

Fault Protection
Over Temperature

Rds On (Typ)
550m ? (Max)

Current - Peak Output
7A

Load Type
Inductive

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX SA07.

SA07 Overview

H bridge is packaged using Tube.H bridge is provided in the 18-DIP Module package for the sake of cost savings.Improved reliabilbridge drivery can be ensured based on the supply voltage of 10V~16V.H bridge circuit is mounted in the way of Through Hole.The operating temperature of -55°C~150°C TJ enables motor driver H bridge to work normally.H bridge motor driver is pretty useful in a wide range of applications, including DC Motors, General Purpose.Through Hole is adopted as a technique to mount H gate on the PCB.There are 18 terminations used to end a transmission line with the H bridge that matches the characteristic impedance of the line.Its base H bridge ic number of SA* is the basis to find more related H bridge ics.H bridge circuit operates with the supply voltage of 12V.H bridge circuit is incorporated with BRUSH DC MOTOR CONTROLLER as its analog IC type.It is a kind of electronic H-bridge belonging to the Apex Precision Power® series.The maximum amount of current which output reaches 7A.There is 5A current flowing through the output and power supply pins.18 pins are work together to help this bridge driver play its specific functions.It is equipped with 1 outputs.

SA07 Features

Available in 18-DIP Module Package / Case
Operating Temperature at the range of Through Hole
Interface IC Type : SA*
Subcategory: 7A

SA07 Applications

There are a lot of Apex Microtechnology
SA07 Full Bridge Drivers, Half-Bridge Drivers applications.

Industrial Pumps
Industrial Fans
Industrial Automation
Home Appliances
High-Performance Gaming Motherboards
Compact Blade Servers
DC-DC Converters
Desktop Computers
V-Core
Non-V-Core
