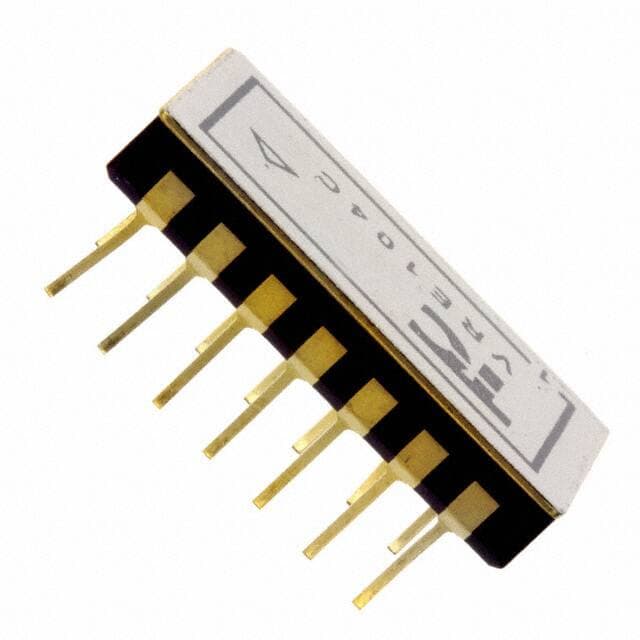

APEX VRE104C

Manufacturer No:

VRE104C

Manufacturer:

APEX

Package:

14-CDIP (0.300, 7.62mm)

Description:

-25°C~85°C TA Fixed 2.54mm PMIC VRE104 15V 14-CDIP (0.300, 7.62mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VRE104C information

APEX VRE104C technical specifications, attributes, parameters and parts with similar specifications to APEX VRE104C.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
14-CDIP (0.300, 7.62mm)

Operating Temperature
-25°C~85°C TA

Packaging
Tube

Published
2012

Tolerance
±0.02%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

ECCN Code
EAR99

Temperature Coefficient
2ppm/°C Typical

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
VRE104

JESD-30 Code
R-CDIP-T14

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
4.5V

Output Type
Fixed

Supply Voltage-Max (Vsup)
22V

Supply Voltage-Min (Vsup)
13.5V

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
7mA

Voltage - Input
13.5V~22V

Current - Output
10mA

Reference Type
Series

Min Output Voltage
4.5V

Temp Coef of Voltage-Max
0.99 ppm/°C

Noise - 0.1Hz to 10Hz
3?Vp-p

Length
20.07mm

Height Seated (Max)
5.57mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX VRE104C.

Datasheets:

apexmicrotechnology-vre104m-datasheets-4677.pdf

VRE104C Overview

14-CDIP (0.300, 7.62mm) is used to simplify the process.Based on the Series control, this part serves as a voltage reference.A Tube external package encloses the voltage reference ic.Different functions are terminated with 14.The voltage reference should have ±0.02% tolerance.IC THREE TERMINAL VOLTAGE REFERENCE is coupled with the reference voltage.Test statistics determine the output voltage 4.5V.Having 1 outputs is sufficient.Users can enter input using the Fixed form.The voltage reference ic has 14 pins.During reflow soldering, the temperature shouldn't rise above NOT SPECIFIED.For PCB designs with high demands, Through Hole is available.Working within the range of -25°C~85°C TA.VRE104 can be used to find other relevant parts.It can be used with 10mA inputs.There are Through Hole applications that can be used with the reference voltage.4.5V voltage lower than 4.5V can be output by the voltage reference ic.0 volts is the required supply voltage.There is a minimum voltage requirement of 13.5V.A voltage reference ic is usually capable of supplying a 13.5V~22V voltage input.Current supply is 7mA.

VRE104C Features

±0.02% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: NOT SPECIFIED

VRE104C Applications

There are a lot of Apex Microtechnology
VRE104C Voltage Reference applications.

PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
