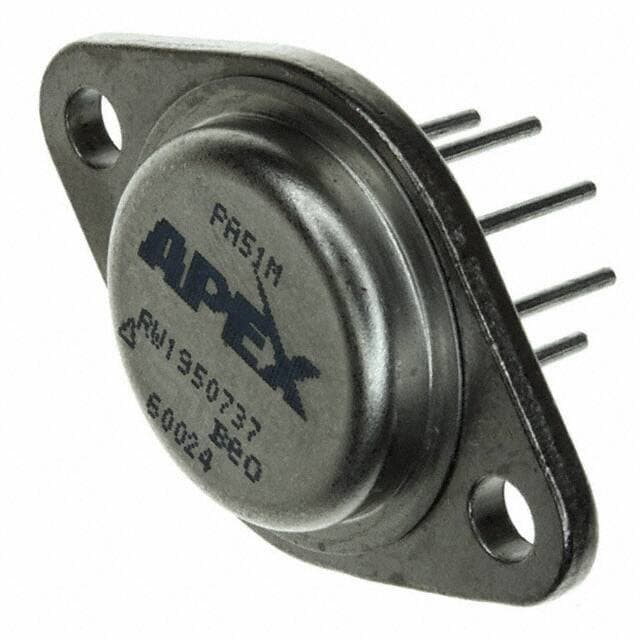

APEX PA51M

Manufacturer No:

PA51M

Manufacturer:

APEX

Package:

TO-3-8

Description:

10A per Channel 15nA 110 dB Instrumentational OP Amps 0.04μA 20V~72V ±10V~36V PA51 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA51M information

APEX PA51M technical specifications, attributes, parameters and parts with similar specifications to APEX PA51M.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
Apex Precision Power®

Published
2015

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
34V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA51

Pin Count
2

Qualification Status
Not Qualified

Power Supplies
+-28V

Number of Circuits
1

Operating Supply Current
2.6mA

Slew Rate
2.6V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
110 dB

Current - Input Bias
15nA

Voltage - Supply, Single/Dual (±)
20V~72V ±10V~36V

Output Current per Channel
10A

Input Offset Voltage (Vos)
5mV

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-34V

Unity Gain BW-Nom
1000 kHz

Average Bias Current-Max (IIB)
0.04μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
40V

Bias Current-Max (IIB) @25C
0.04μA

Screening Level
MIL-STD-883 Class B (Modified)

Neg Supply Voltage-Max (Vsup)
-40V

Power
YES

Download datasheets and manufacturer documentation for APEX PA51M.

Datasheets:

apexmicrotechnology-pa51m883-datasheets-6413.pdf

PA51M Overview

Packaged in a TO-3-8 case, the buffer op amp is ready to use. An op amp ic of the Power type. The op amp is delivered to you in a Tube case. There is a growing number of terminations approaching the number of 8. The pins on this board total to 2 in total. I would like to remind you that this buffer op amp should be powered by an 34V battery. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. There is an input offset voltage of 5mV for this buffer op amp. The mounting type that is recommended for this electrical part is Through Hole. In relation to the operating temperature of this buffer op amp, it works well at an average of -55°C~125°C . As long as the supply current of the chip does not exceed 2.6mA, this op amp ic can operate. During the manufacturing process, this buffer amplifier is divided into 1 circuits. As the name implies, Apex Precision Power® refers to the series of the buffer op amp. It is necessary to keep in mind that this instrumentation amplifier is able to conduct a minimum voltage gain of 50000.
