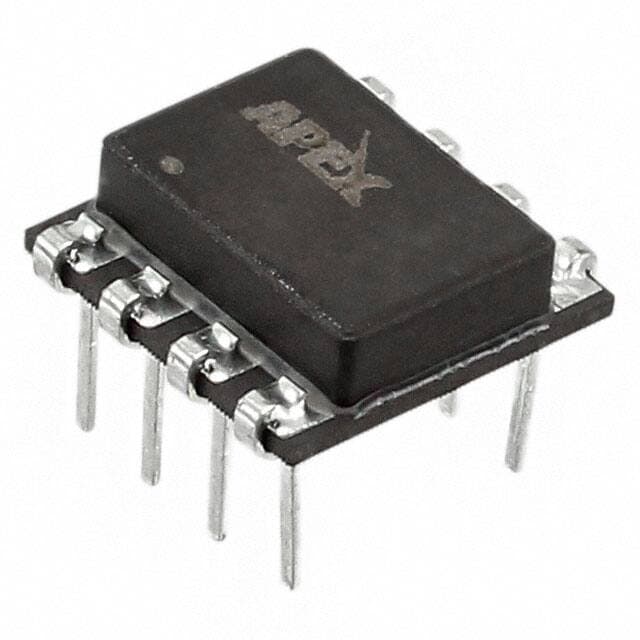

APEX VRE305AD

Manufacturer No:

VRE305AD

Manufacturer:

APEX

Package:

8-DIP (0.400, 10.16mm)

Description:

0°C~70°C TA Fixed PMIC VRE305 15V 8-DIP (0.400, 10.16mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VRE305AD information

APEX VRE305AD technical specifications, attributes, parameters and parts with similar specifications to APEX VRE305AD.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
8-DIP (0.400, 10.16mm)

Operating Temperature
0°C~70°C TA

Packaging
Tube

Published
2015

Tolerance
±0.01%

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Temperature Coefficient
0.6ppm/°C

Terminal Finish
Tin/Silver (Sn/Ag)

HTS Code
8542.39.00.01

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
VRE305

Pin Count
8

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
5V

Output Type
Fixed

Supply Voltage-Max (Vsup)
22V

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
7mA

Voltage - Input
13.5V~22V

Current - Output
10mA

Reference Type
Series

Min Output Voltage
5V

Temp Coef of Voltage-Max
0.6 ppm/°C

Noise - 0.1Hz to 10Hz
3?Vp-p

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX VRE305AD.

Datasheets:

apexmicrotechnology-vre305ls-datasheets-4812.pdf

VRE305AD Overview

The reference voltage makes use of a handy 8-DIP (0.400, 10.16mm) package.This program utilizes the handy Series package.The reference voltage is enclosed in the Tube external packaging.8 terminations with various functions.±0.01% tolerance for precise voltage reference.THREE TERMINAL VOLTAGE REFERENCE analog IC is coupled with the reference voltage.It outputs 5V voltage according to the test statistics.It is sufficient to generate 1 outputs. It can handle Fixed output (s).The voltage reference ic includes 8 pins.Reflow soldering should be performed at a temperature of NOT SPECIFIED.Through Hole is available for demanding PCB design.Qualified to work within 0°C~70°C TA.Other relevant parts can be found by searching "VRE305".It is suitable for 10mA input applications.It is appropriate for Through Hole applications.The lowest voltage output from the voltage reference ic is 5V lower than 5V.It requires a 15V supply voltage.Commonly, the voltage reference ic can supply a 13.5V~22V voltage input.It runs on 7mA supply current.

VRE305AD Features

±0.01% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: NOT SPECIFIED

VRE305AD Applications

There are a lot of Apex Microtechnology
VRE305AD Voltage Reference applications.

Portable, battery-powered equipment
Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
