HIROSE UX60-MB-5ST

Manufacturer No:

UX60-MB-5ST

Manufacturer:

Package:

Description:

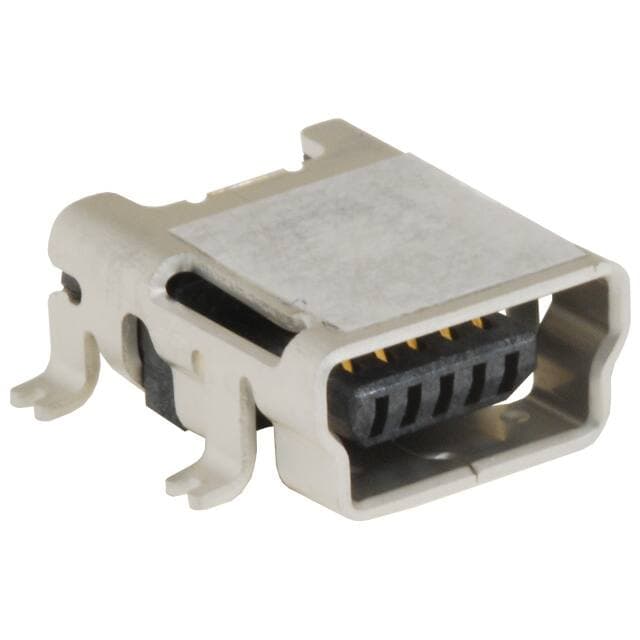

Telecom and Datacom Connector, 5 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Receptacle, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UX60-MB-5ST information

HIROSE UX60-MB-5ST technical specifications, attributes, parameters and parts with similar specifications to HIROSE UX60-MB-5ST.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
HIROSE ELECTRIC CO LTD

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.69.40.30

Samacsys Manufacturer
Hirose

Additional Feature
USB, HIGH SPEED

Board Mounting Option
SOLDER HOLDING FLANGE

Body Breadth
0.156 inch

Body Depth
0.354 inch

Body Length
0.39 inch

Body/Shell Style
RECEPTACLE

Connector Type
USB CONNECTOR

Contact Finish Mating
TIN

Contact Finish Termination
Tin (Sn)

Contact Gender
FEMALE

Contact Material
COPPER ALLOY

Contact Pattern
RECTANGULAR

Contact Resistance
50 mΩ

Contact Style
USB SER A FLAT

DIN Conformance
NO

Dielectric Withstanding Voltage
100VAC V

Empty Shell
NO

Filter Feature
NO

IEC Conformance
NO

Insertion Force-Max
7.1168 N

Insulation Resistance
100000000 Ω

Insulator Material
SYNTHETIC RESIN

JESD-609 Code
e3

MIL Conformance
NO

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts
NO

Mounting Option 1
LOCKING

Mounting Style
STRAIGHT

Mounting Type
BOARD

Number Of Connectors
ONE

Number Of PCB Rows
1

Number of Ports
1

Operating Temperature-Max
75 °C

Operating Temperature-Min
-30 °C

Option
GENERAL PURPOSE

PCB Contact Pattern
RECTANGULAR

Polarization Key
POLARIZED HOUSING

Rated Current (Signal)
1 A

Reference Standard
UL

Download datasheets and manufacturer documentation for HIROSE UX60-MB-5ST.

Datasheets:

hiroseelectriccoltd-ux60mb5s8-datasheets-1253.pdf

The HRS UX60-MB-5ST is a USB 2.0 Mini B receptacle connector with a surface mount right angle 5-position design. It is designed to provide reliable connections for USB, DVI, and HDMI applications.

Features of the HRS UX60-MB-5ST include a high-temperature thermoplastic housing, gold-plated contacts, and a secure locking mechanism. It is rated for a current of 1.5A and a voltage of 30V. The connector is also RoHS compliant and UL approved.

The HRS UX60-MB-5ST is suitable for a variety of applications, including digital cameras, cell phones, PDAs, and other consumer electronics. It is also suitable for use in industrial and medical equipment.
