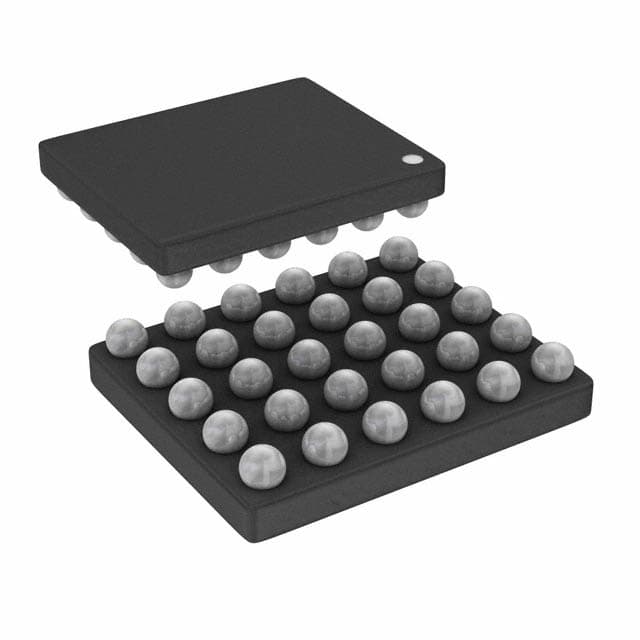

ADI SSM2804CBZ-RL
Manufacturer No:
SSM2804CBZ-RL
Manufacturer:
Package:
30-WFBGA, WLCSP
Description:
9.8mA mA 20 kHz kHz 3.6W W Audio Amplifiers 3.6V V 30 pins 30-WFBGA, WLCSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SSM2804CBZ-RL information
ADI SSM2804CBZ-RL technical specifications, attributes, parameters and parts with similar specifications to ADI SSM2804CBZ-RL.
- Type
- Parameter
- Lifecycle Status
- OBSOLETE (Last Updated: 6 days ago)
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 30-WFBGA, WLCSP
- Number of Pins
- 30
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Feature
- Depop, I2C, Short-Circuit and Thermal Protection, Shutdown, Volume Control
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 30
- ECCN Code
- EAR99
- Type
- Class D
- Subcategory
- Audio/Video Amplifiers
- Voltage - Supply
- 2.5V~3.6V
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Base Part Number
- SSM2804
- Pin Count
- 30
- Efficiency
- 89 %
- Output Type
- 2-Channel (Stereo) with Stereo Headphones
- Number of Channels
- 2
- Operating Supply Current
- 9.8mA
- Nominal Supply Current
- 9.8mA
- Output Power
- 1.4W
- Common Mode Rejection Ratio
- 55 dB
- Supply Type
- Dual
- Bandwidth
- 20 kHz
- Power Supply Rejection Ratio (PSRR)
- 95dB
- Max Output Power
- 3.6W
- Dual Supply Voltage
- 3.3V
- Signal to Noise Ratio (SNR)
- 94 dB
- Max Output Power x Channels @ Load
- 3.6W x 2 @ 4 ?; 40mW x 2 @ 16 ?
- Height Seated (Max)
- 0.66mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ADI SSM2804CBZ-RL.
Datasheets:
ConflictMineralStatement:
SSM2804CBZ-RL Overview
The package 30-WFBGA, WLCSP contains it.Tape & Reel (TR) is the packaging method.30 terminations consist of terminating transmission lines with devices that match their characteristic impedance.Amp parts is configured wAmp partsh an output of 2-Channel (Stereo) with Stereo Headphones .This electrical device has the type Class D .In a computer or other communication device, there are 30 pins, which are pronged contacts.There is an electronic part mounted in the way of Surface Mount .This electrical device is powered by 2.5V~3.6V volts.There are no channels on the device.When operating, Depop, I2C, Short-Circuit and Thermal Protection, Shutdown, Volume Control can be ensured.Amp parts is recommended that the operating temperature not exceed -40°C~85°C TA .In addition, it is equipped with 30 pins.Amp parts is included in Audio/Video Amplifiers .Amp parts is a member of the family SSM2804 .Amp parts is mounted in the way of Surface Mount .This electronic component's maximum output power is 3.6W kWh per hour.Amp parts reaches 3.6V when the maximum supply voltage (Vsup) is reached.Dual is the type of supply for this electronic part.
