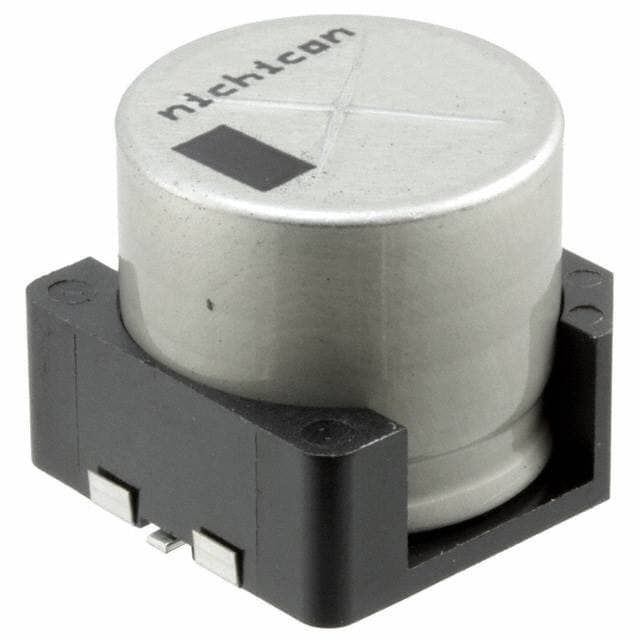

NICHICON UUE1C102MNS1MS
NICHICON UUE1C102MNS1MS

NICHICON UUE1C102MNS1MS

Manufacturer No:

UUE1C102MNS1MS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UUE 1000?F Capacitor ±20% Tape & Reel (TR) Surface Mount 1.2A 0.709Dia 18.00mm -55°C~125°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UUE1C102MNS1MS information

NICHICON UUE1C102MNS1MS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UUE1C102MNS1MS.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • ONE SURFACE
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.752Lx0.752W 19.10mmx19.10mm
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UUE
  • Published
  • 2009
  • Size / Dimension
  • 0.709Dia 18.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • Automotive
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 1000?F
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Size Code
  • 7575
  • Voltage
  • 16V
  • Lifetime @ Temp
  • 5000 Hrs @ 125°C
  • Leakage Current
  • 480?A
  • Ripple Current
  • 1.2A
  • Polarization
  • Polar
  • Life (Hours)
  • 5000 hours
  • Tan Delta
  • 0.18
  • Ripple Current @ Low Frequency
  • 1.044A @ 120Hz
  • Ripple Current @ High Frequency
  • 1.2A @ 100kHz
  • Diameter
  • 18mm
  • Height
  • 16.5mm
  • Height Seated (Max)
  • 0.689 17.50mm
  • Length
  • 20.1mm
  • Width
  • 19.1mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UUE1C102MNS1MS.

Datasheets:

UUE1C102MNS1MS Overview


As far as the ripple current is concerned, it is 1.2A @ 100kHz at full charge.As far as the ripple current is concerned, it is 1.044A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.689 17.50mm.This capacitor operates from a voltage - Rated DC of 16V.The operating temperature should be maintained at -55°C~125°C for high efficiency.

UUE1C102MNS1MS Features


the ripple current is 1.2A @ 100kHz.
the ripple current is 1.044A @ 120Hz.
voltage - Rated DC of 16V
an operating temperature of -55°C~125°C


UUE1C102MNS1MS Applications


There are a lot of Nichicon
UUE1C102MNS1MS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
