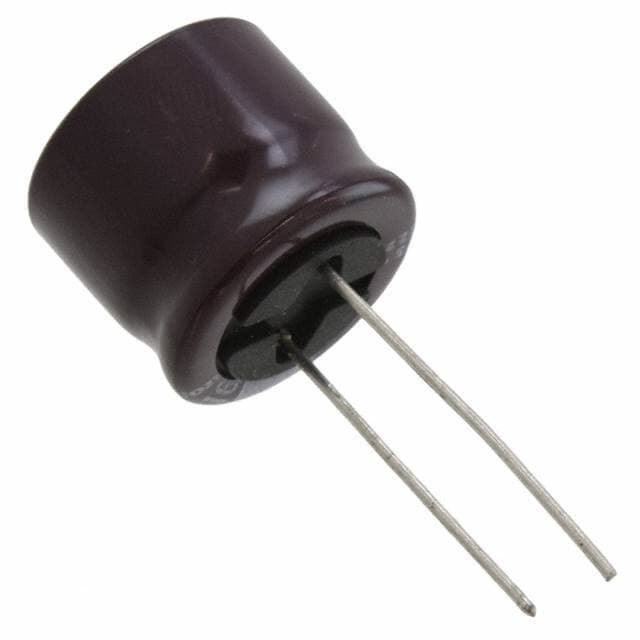

NICHICON UPM1V821MHD6

Manufacturer No:

UPM1V821MHD6

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UPM 820?F Capacitor ±20% Bulk Through Hole 1.37A 0.709Dia 18.00mm -55°C~105°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPM1V821MHD6 information

NICHICON UPM1V821MHD6 technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPM1V821MHD6.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
UPM

Published
2004

Size / Dimension
0.709Dia 18.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
820?F

Voltage - Rated DC
35V

Lead Pitch
7.5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Lifetime @ Temp
5000 Hrs @ 105°C

Leakage Current
861?A

Ripple Current
1.37A

Polarization
Polar

Life (Hours)
5000 hours

Impedance
38mOhm

Ripple Current @ Low Frequency
1.38A @ 120Hz

Ripple Current @ High Frequency
1.62A @ 10kHz

Dissipation Factor
0.12 %

Lead/Base Style
Straight

Ripple Current (AC)
1.37A

Diameter
18mm

Height
15mm

Height Seated (Max)
0.669 17.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UPM1V821MHD6.

UPM1V821MHD6 Overview

Ripple current at full charge is 1.62A @ 10kHz.It is 1.38A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.669 17.00mm.Consequently, it operates with a dissipation factor of 0.12 % (0.12 %).Voltage - Rated DC - is 35V.Voltage - Rated AC is 35V for this capacitor.It is recommended that the operating temperature be kept at -55°C~105°C to achieve high efficiency.

UPM1V821MHD6 Features

the ripple current is 1.62A @ 10kHz.
the ripple current is 1.38A @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C

UPM1V821MHD6 Applications

There are a lot of Nichicon
UPM1V821MHD6 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
