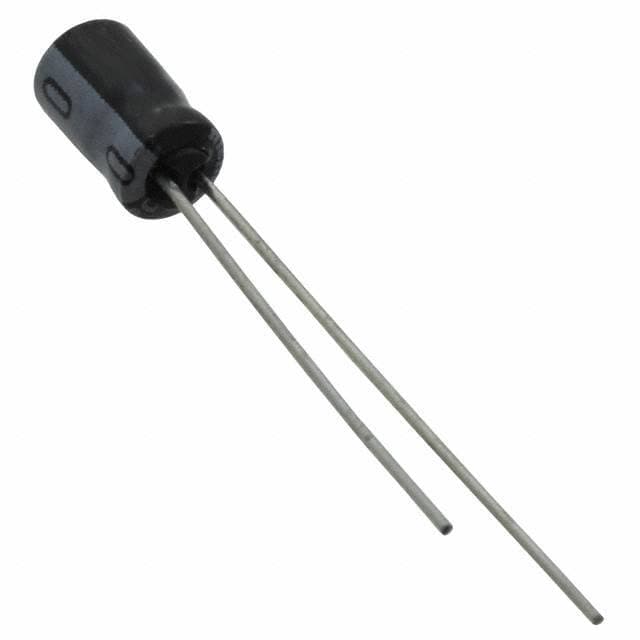

NICHICON UST1C100MDD1TP
NICHICON UST1C100MDD1TP

NICHICON UST1C100MDD1TP

Manufacturer No:

UST1C100MDD1TP

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UST 10?F Capacitor ±20% Tape & Box (TB) Through Hole 29mA 0.157Dia 4.00mm -55°C~105°C Polar 1.4986mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UST1C100MDD1TP information

NICHICON UST1C100MDD1TP technical specifications, attributes, parameters and parts with similar specifications to NICHICON UST1C100MDD1TP.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Box (TB)
  • Series
  • UST
  • Published
  • 2012
  • Size / Dimension
  • 0.157Dia 4.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 10?F
  • Voltage - Rated DC
  • 16V
  • Lead Pitch
  • 1.4986mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.059 1.50mm
  • Lifetime @ Temp
  • 1000 Hrs @ 105°C
  • Leakage Current
  • 0.003mA
  • Ripple Current
  • 29mA
  • Polarization
  • Polar
  • Life (Hours)
  • 1000 hours
  • Tan Delta
  • 0.18
  • Ripple Current @ Low Frequency
  • 29mA @ 120Hz
  • Ripple Current @ High Frequency
  • 43.5mA @ 10kHz
  • Diameter
  • 4mm
  • Height
  • 7mm
  • Height Seated (Max)
  • 0.315 8.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UST1C100MDD1TP.

Datasheets:

UST1C100MDD1TP Overview


Ripple current at full charge is 43.5mA @ 10kHz.It is 29mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.315 8.00mm.Voltage - Rated DC - is 16V.It is recommended that the operating temperature be kept at -55°C~105°C to achieve high efficiency.

UST1C100MDD1TP Features


the ripple current is 43.5mA @ 10kHz.
the ripple current is 29mA @ 120Hz.
voltage - Rated DC of 16V
an operating temperature of -55°C~105°C


UST1C100MDD1TP Applications


There are a lot of Nichicon
UST1C100MDD1TP applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
