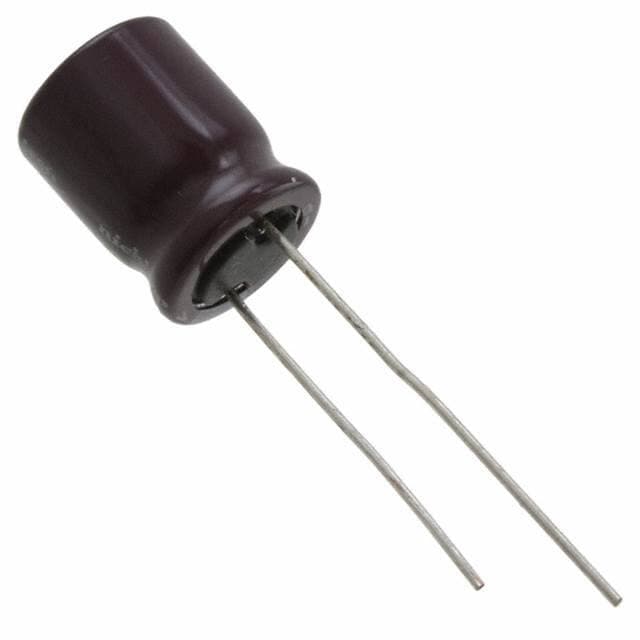

NICHICON UPJ2A330MPD6TD

Manufacturer No:

UPJ2A330MPD6TD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UPJ 33?F Capacitor ±20% Cut Tape (CT) Through Hole 166mA 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPJ2A330MPD6TD information

NICHICON UPJ2A330MPD6TD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPJ2A330MPD6TD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
ALUMINUM

Operating Temperature
-55°C~105°C

Packaging
Cut Tape (CT)

Series
UPJ

Published
2008

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
33?F

Voltage - Rated DC
100V

Lead Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Diameter
600 ?m

Lifetime @ Temp
5000 Hrs @ 105°C

Ripple Current
166mA

Polarization
Polar

Life (Hours)
5000 hours

Impedance
420mOhm

Ripple Current @ Low Frequency
166mA @ 120Hz

Ripple Current @ High Frequency
293mA @ 10kHz

Dissipation Factor
0.08 %

Diameter
10mm

Height
12.5mm

Height Seated (Max)
0.551 14.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UPJ2A330MPD6TD.

Datasheets:

nichicon-upj2a330mpd6td-datasheets-2168.pdf

nichicon-upj2a330mpd6td-datasheets-2169.pdf

UPJ2A330MPD6TD Overview

Full charge results in a ripple current of 293mA @ 10kHz.The ripple current at the lowest charge is 166mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.551 14.00mm is recommended.Despite its 0.08 % dissipation factor, it still operates.Rated DC voltage is 100V for this capacitor.High efficiency requires an operating temperature of -55°C~105°C.

UPJ2A330MPD6TD Features

the ripple current is 293mA @ 10kHz.
the ripple current is 166mA @ 120Hz.
a dissipation factor of 0.08 %
voltage - Rated DC of 100V
an operating temperature of -55°C~105°C

UPJ2A330MPD6TD Applications

There are a lot of Nichicon
UPJ2A330MPD6TD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
