Renesas UPD78F9212MA-FAA-AX

Manufacturer No:

UPD78F9212MA-FAA-AX

Manufacturer:

Renesas

Package:

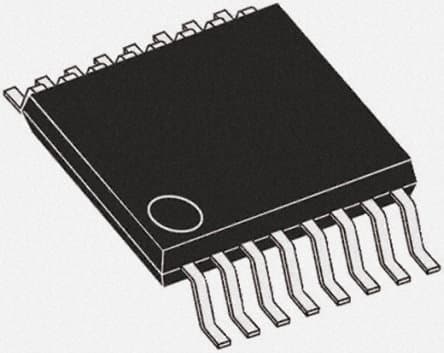

16-SSOP (0.173, 4.40mm Width)

Description:

4KB 4K x 8 FLASH 78K0S 8-Bit Microcontroller 78K0S/Kx1+ Series UPD78F9212 16 Pin 10MHz 5V 16-SSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPD78F9212MA-FAA-AX information

Renesas UPD78F9212MA-FAA-AX technical specifications, attributes, parameters and parts with similar specifications to Renesas UPD78F9212MA-FAA-AX.

Type
Parameter

Factory Lead Time
24 Weeks

Mounting Type
Surface Mount

Package / Case
16-SSOP (0.173, 4.40mm Width)

Surface Mount
YES

Number of Pins
16

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
78K0S/Kx1+

Published
2005

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Supply Voltage
5V

Frequency
10MHz

Base Part Number
UPD78F9212

Pin Count
16

Operating Supply Voltage
5V

Memory Size
4kB

Oscillator Type
Internal

Number of I/O
14

Voltage - Supply (Vcc/Vdd)
2V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
78K0S

Peripherals
LVD, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
4KB 4K x 8

Bit Size
8

Data Converter
A/D 4x10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
NO

Data Bus Width
8b

PWM Channels
YES

DAC Channels
NO

Number of Timers/Counters
2

Number of Programmable I/O
13

Number of UART Channels
0

Length
5mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas UPD78F9212MA-FAA-AX.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

UPD78F9212MA-FAA-AX Overview

The package is 16-SSOP (0.173, 4.40mm Width)-shaped. There are 14 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 8-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~85°C TA are operated by this Microcontroller. It is part of the 78K0S/Kx1+ series of electrical components. Having a size of 4KB 4K x 8, Microcontroller has a program memory of X bytes. A 78K0S Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER uPs/uCs/Peripheral ICs category. IC Chip 16 has 16 terminations. 8-bits are used for its size. IC Chip has 5V volt supply outputs. With NO DMA channels, Microcontroller chip can handle large data transfers. 4kB is the size of the memory in the IC part. Using the base part number UPD78F9212, you will be able to find alternatives for the part. Using a 10MHz frequency, this electronic part can perform efficiently. Devices work in YES PWM channels. On the chip, 16 pins are accessible. In total, there are 2 timers/counters on the device. The pin count is 16. It has 13 Programmable Input/Output pins that can be programmed. A total of 8 UART channels are available on it.
