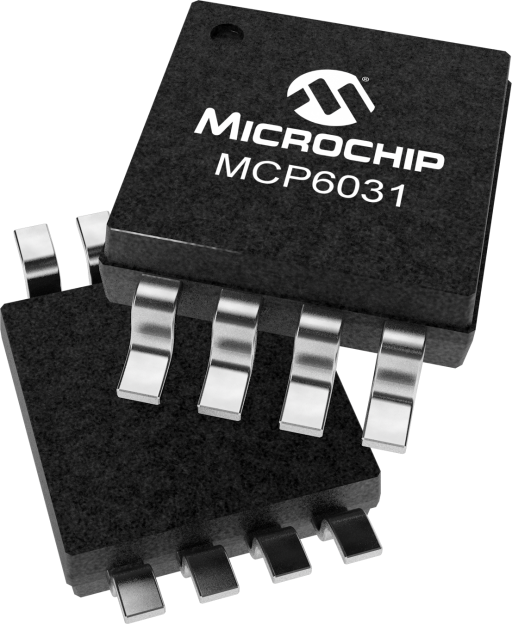

Microchip MCP6031-E/MC
Manufacturer No:
MCP6031-E/MC
Manufacturer:
Package:
8-VFDFN Exposed Pad
Description:
10 kHz, Single, Precision Op Amp
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MCP6031-E/MC information
Microchip MCP6031-E/MC technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP6031-E/MC.
- Type
- Parameter
- # Per Package
- 1
- Gain Bandwidth Product kHz (kilohertz)
- 10
- Slew Rate (V/µs)
- 0.004
- Vos Max µV (microvolt)
- 150
- Operating Voltage Min V (volt)
- 1.8
- Operating Voltage Max V (volt)
- 5.5
- Iq Typical (µA)
- 0.9
- Iq Max (uA)
- 1.35
- Input Voltage Noise Density (nV/rt(Hz))
- 165
- PSRR Min (dB)
- 70
- CMRR Min (dB)
- 70
- Enhanced EMI Protection
- No
- PM (deg)
- 65
Download datasheets and manufacturer documentation for Microchip MCP6031-E/MC.
Application Notes:
Data Sheets:
User Guide:
The MCP6031 operational amplifier (op amp) has a gain bandwidth of 10 kHz with a low typical operating current of 900 nA and an offset voltage that is less than 150 uV. The MCP6031 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail input and output swing. The MCP6031 operates with a single supply voltage that can be as low as 1.8V, while drawing less than 1 uA of quiescent current. The MCP6031 is available in standard 8-lead SOIC, MSOP, SOT-23 and 2x3 DFN packages. AEC-Q100 Grade 1 qualification is available for this device.
Check out the MCP6031 PHOTODIODE PICTAIL PLUS demo board here!
- Rail-to-Rail Input and Output
- Unity gain stable
- Low operating voltage
- Low quiescent current
- Low offset voltage
- Wide Power Supply Voltage: 1.8V to 5.5V
- Gain Bandwidth Product: 10 kHz (typical)
- AEC-Q100 Grade 1
