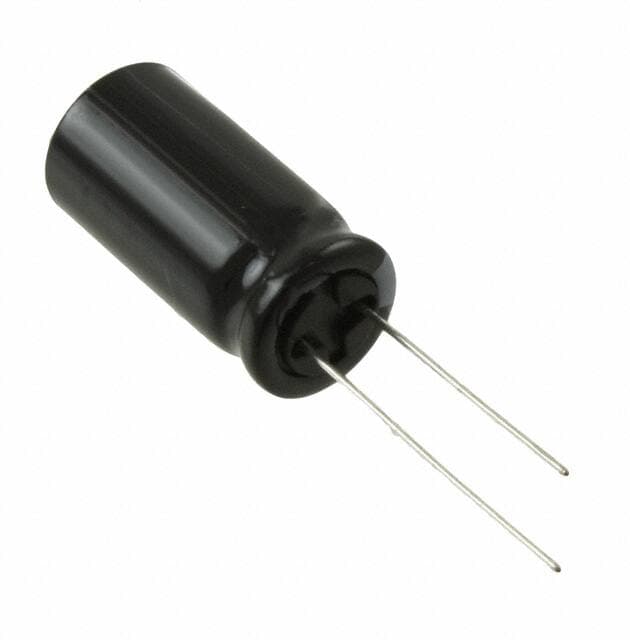

Nichicon UHD1H471MHD

Manufacturer No:

UHD1H471MHD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UHD 470?F Capacitor ±20% Bulk Through Hole 2.05A 0.492Dia 12.50mm -40°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UHD1H471MHD information

Nichicon UHD1H471MHD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UHD1H471MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
UHD

Published
2004

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin/Copper (Sn/Cu)

Applications
General Purpose

Capacitance
470?F

Voltage - Rated DC
50V

Voltage - Rated AC
50V

Lead Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Lifetime @ Temp
5000 Hrs @ 105°C

Leakage Current
235?A

Ripple Current
2.05A

Polarization
Polar

Life (Hours)
5000 hours

Tan Delta
0.10

Impedance
27mOhm

Ripple Current @ Low Frequency
1.538A @ 120Hz

Ripple Current @ High Frequency
2.05A @ 100kHz

Lead/Base Style
Straight

Ripple Current (AC)
2.05A

Diameter
12.5mm

Height
20mm

Height Seated (Max)
0.866 22.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Nichicon UHD1H471MHD.

Datasheets:

nichicon-uhd1h471mhd-datasheets-1239.pdf

nichicon-uhd1h471mhd-datasheets-1240.pdf

UHD1H471MHD Overview

At full charge, the ripple current is 2.05A @ 100kHz.The ripple current is 1.538A @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.866 22.00mm.The capacitor operates at a voltage of 50V - Rated DC.Voltage - Rated AC of 50V is needed to operate this capacitor.For high efficiency, the operating temperature should be -40°C~105°C.

UHD1H471MHD Features

the ripple current is 2.05A @ 100kHz.
the ripple current is 1.538A @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C

UHD1H471MHD Applications

There are a lot of Nichicon
UHD1H471MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
